Utax CD 1020 - Page 197

2AV/X
1-6-16
1-6
• 15 cpm
Yes
No
Start

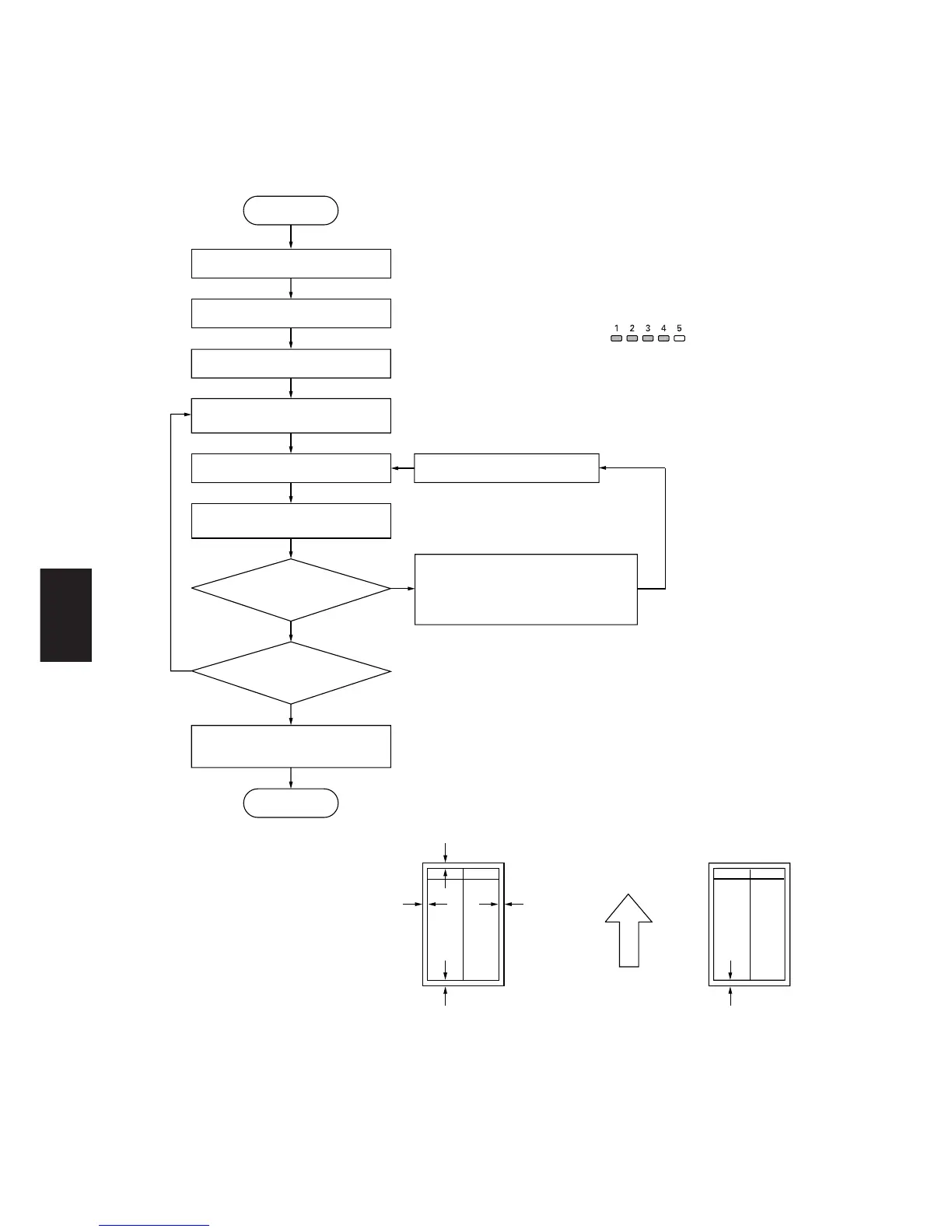

Enter maintenance mode.
Enter “402” using the numeric keys.
Press the start key.
Press the start key to output a test
pattern using A3/11" × 17" paper.
Press the start key.
The new setting is stored.
Setting range (initial setting/change in value per step)
Printer leading edge margins: 0 – +10 (3/0.5 mm)
Printer left/right margin: –5 – +10 (2.5/0.5 mm)
Printer trailing edge margin (standard size): –5 – +10 (4.5/0.5 mm)
Printer trailing edge margin (non-standard size): –5 – +15 (3.0/0.25 mm)
Select the item to be adjusted using
the copy exposure adjustment keys.
Are the margins correct?
Change the setting.
Increasing the value using the zoom (+)
key makes the margin wider.
Decreasing the value using the zoom (–)
key makes the margin narrower.
Press the interrupt key.
● Copy exposure adjustment keys
Setting 1 : printer leading edge margin
2 : printer left/right margins
3 : printer trailing edge margin
(standard size)
4 : printer trailing edge margin
(non-standard size)
Yes
No
Press the stop/clear key to
exit maintenance mode.
End
Proceed to
another mode?
Ejection direction
(reference)
Printer trailing edge margin
for duplex copying (3 ± 2.5 mm)
Printer leading edge margin
(3 ± 2.5 mm)
Printer
left margin
(2.5
+2.0
mm)
Printer
right margin
(2.5
+2.0
mm)
Printer trailing edge margin
(3 ± 2.5 mm)
Duplex copy mode
(second face, A3/11" × 17")
Normal copy mode
(A3/11" × 17")
–1.5–1.5
