Original: A5R, copy paper: A3/11" × 17", magnification ratio 200%

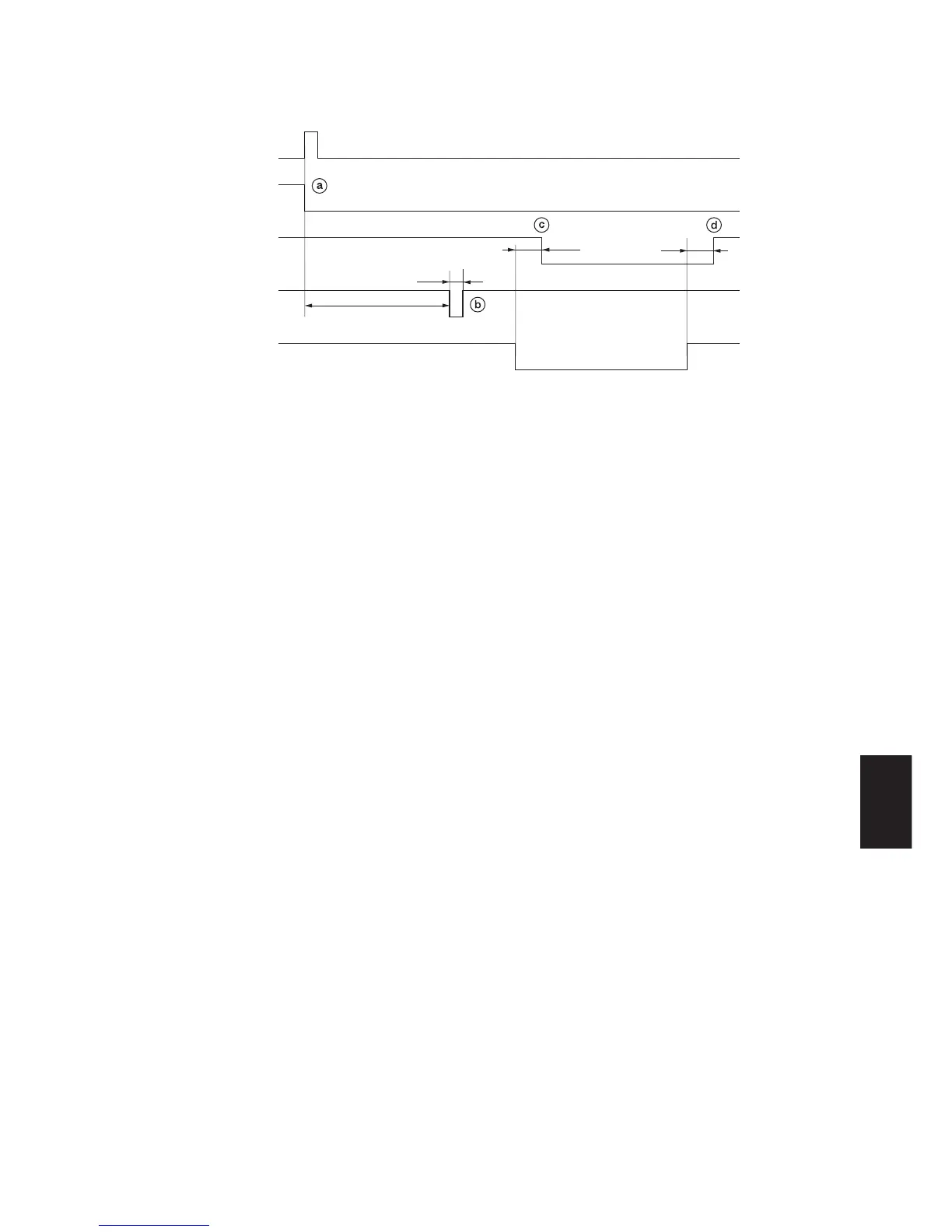

Timing chart 2-1-2 Paper feed from the bypass tray
a: When the start key is pressed, the drive motor (DM) turns on.
b: 3000 ms after the drive motor (DM) turns on, the bypass paper feed clutch (BYPPFCL) turns on and the bypass
paper feed pulleys rotate to start primary paper feed.
c: 263 ms after the leading edge of the paper turns the registration switch (RSW) on, the registration clutch (RCL) turns
on and the right registration roller rotates.
d: 300 ms after the trailing edge of the paper turns the registration switch (RSW) off, the registration clutch (RCL) turns
off.
