2AV/X
1-5-23
1-5
Causes Check procedures/corrective measures
1. Misadjusted center line of image printing. Readjust the center line of image printing (see pages 1-6-13 and
14).
2. Misadjusted scanner center line. Readjust the scanner center line (see page 1-6-37).
3. Original placed incorrectly. Place the original correctly.
(18)Image center does not
align with the original
center.
(17)Image is out of
focus.
Causes
1. Defective image scanning unit.
Causes Check procedures/corrective measures
1. Defective image scanning unit. Replace the image scanning unit (see page 1-6-28).
Causes
1. Misadjusted center line of image printing.
2. Misadjusted scanner center line.
3. Original placed incorrectly.

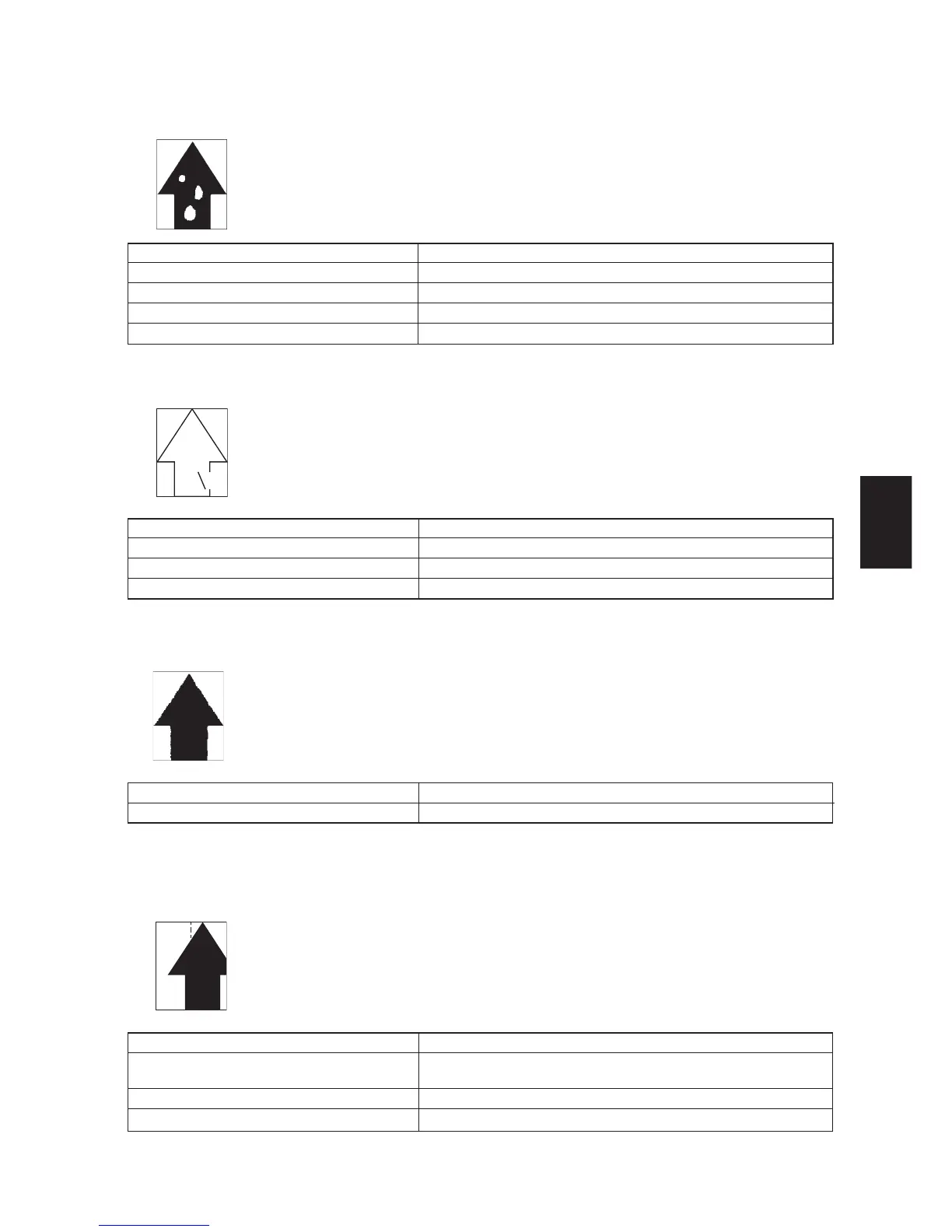

(15)Image is partly miss-
ing.
Causes
1. Paper damp.
2. Paper creased.
3. Drum condensation.
4. Flawed drum.
Causes Check procedures/corrective measures
1. Paper damp. Check the paper storage conditions.
2. Paper creased. Replace the paper.
3. Drum condensation. Clean the drum.
4. Flawed drum. Replace the drum (see page 1-6-43).
(16)Fixing is poor. Causes
1. Wrong paper.
2. Defective pressure springs.
3. Flawed press roller.
Causes Check procedures/corrective measures
1. Wrong paper. Check if the paper meets specifications.
2. Defective pressure springs. Replace the pressure springs.
3. Flawed press roller. Replace the press roller (see page 1-6-53).
To Next Page
