5. Check or replace the laser scanner unit and
refit all the removed parts.
Caution: Before fitting the new laser scanner
unit, fit the LSU front spacer and LSU right
spacer by orienting the markings correctly
and using the correct layer as specified on
the label on the laser scanner unit cover.

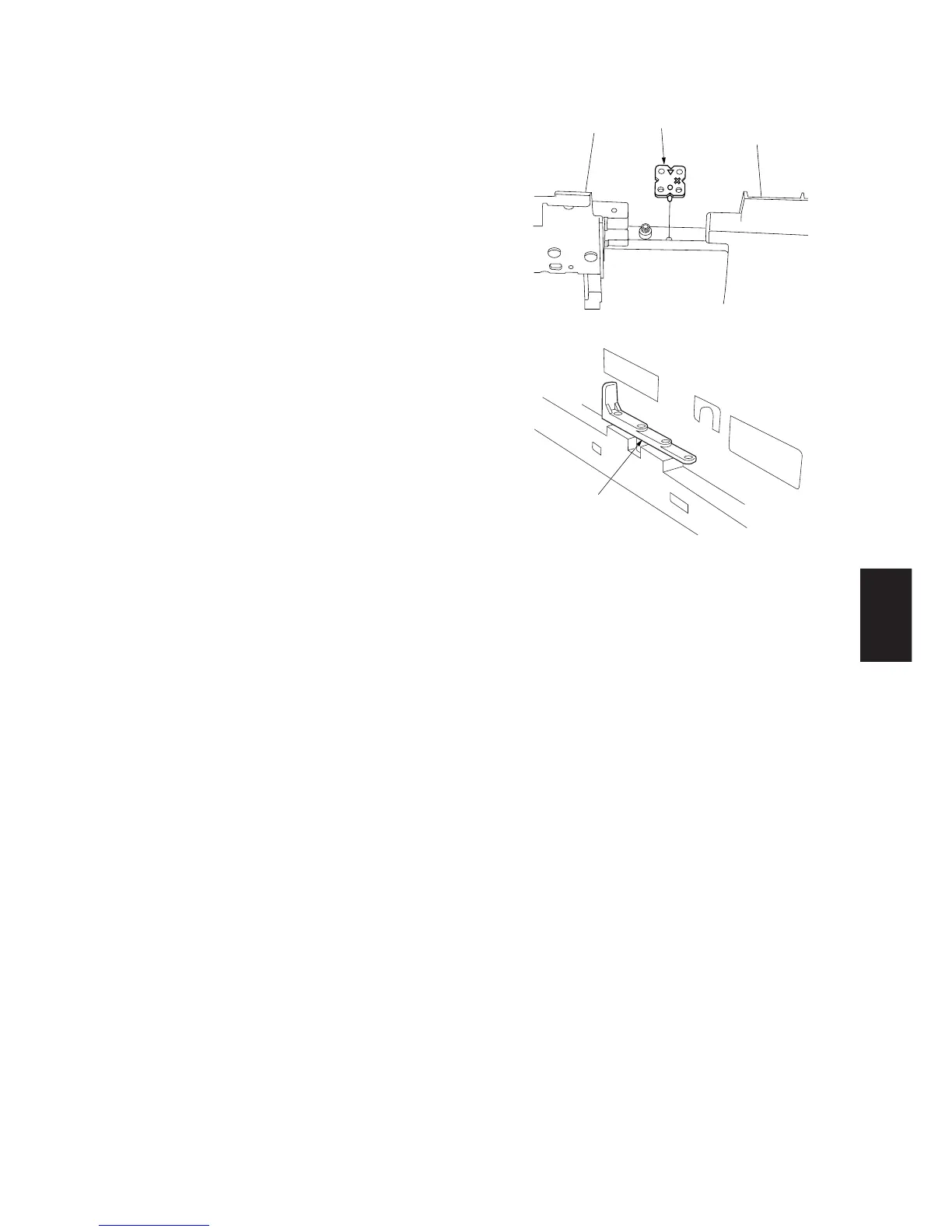

Figure 1-6-38
LSU front spacer
LSU right spacer
