8. Refit the right cover.
9. Pass the 4-pin connector of the key counter
through the aperture in the key counter cover
retainer, and insert into the 4-pin connector of
the copier.
10. Seat the projection of the key counter cover
retainer in the aperture in the right cover, and
fasten them both to the copier using three
screws.
11. Fit the key counter cover with the key counter
socket assembly inserted to the key counter
cover retainer on the copier using the screw.
12. Insert the key counter into the key counter
socket assembly.
13. Turn the main switch on and enter the mainte-
nance mode.
14. Run maintenance item U204 and set as
follows:
15 cpm: C-2
20 cpm: Key counter
15. Exit the maintenance mode.
16. Check that the indication given below is
displayed on the operation panel when the key
counter is pulled out.
15 cpm: U1
20 cpm: Insert key counter.
17. Check that the counter counts up as copies
are made.
4-pin connector
4-pin connector
Key counter cover
Key counter cover retainer
(66060022)
M4 × 20 screw
(B4304200)
M4 × 10 screw
(B4304100)
M4 × 6 screw
(B4104060)
M3 × 8 screw
(B1303080)

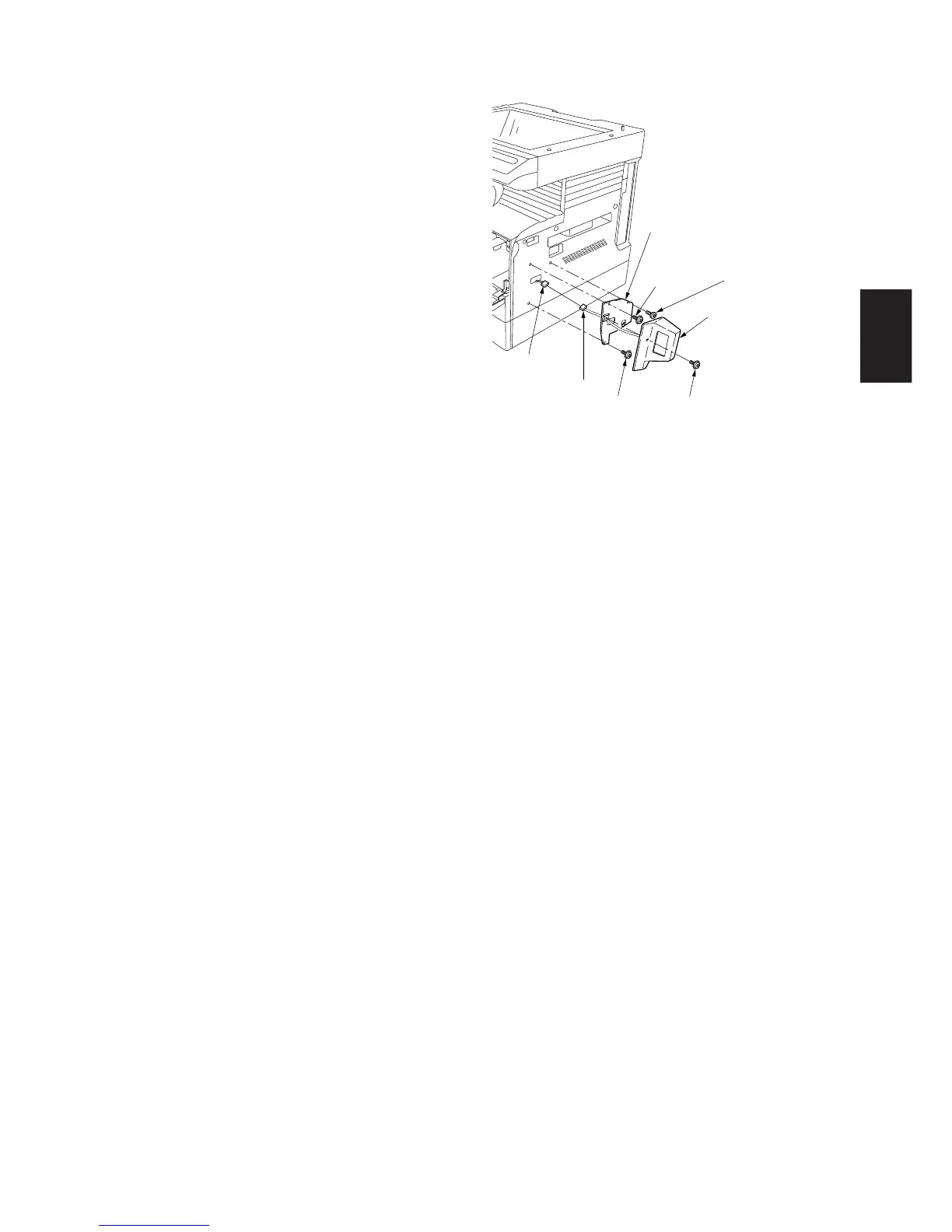

Figure 1-3-21
