* = You can isolate digital inputs from ground with a DIP switch. See 7.2.2.2 Isolation of digital
inputs from ground.
There are 2 different relay boards available.
RO1 NC
RO1 CM
RO1 NO
RO2 NC
RO2 CM
RO2 NO
RO3 CM
RO3 NO
21
22
23
24
25
26
32
33
RUN
RUN
FAULT
READY
Relay output 1
Relay output 2
Relay output 3
From Standard I/O board
Terminal Signal
Default
Relay board 1
From term.
#6 or 12
From term.
#13

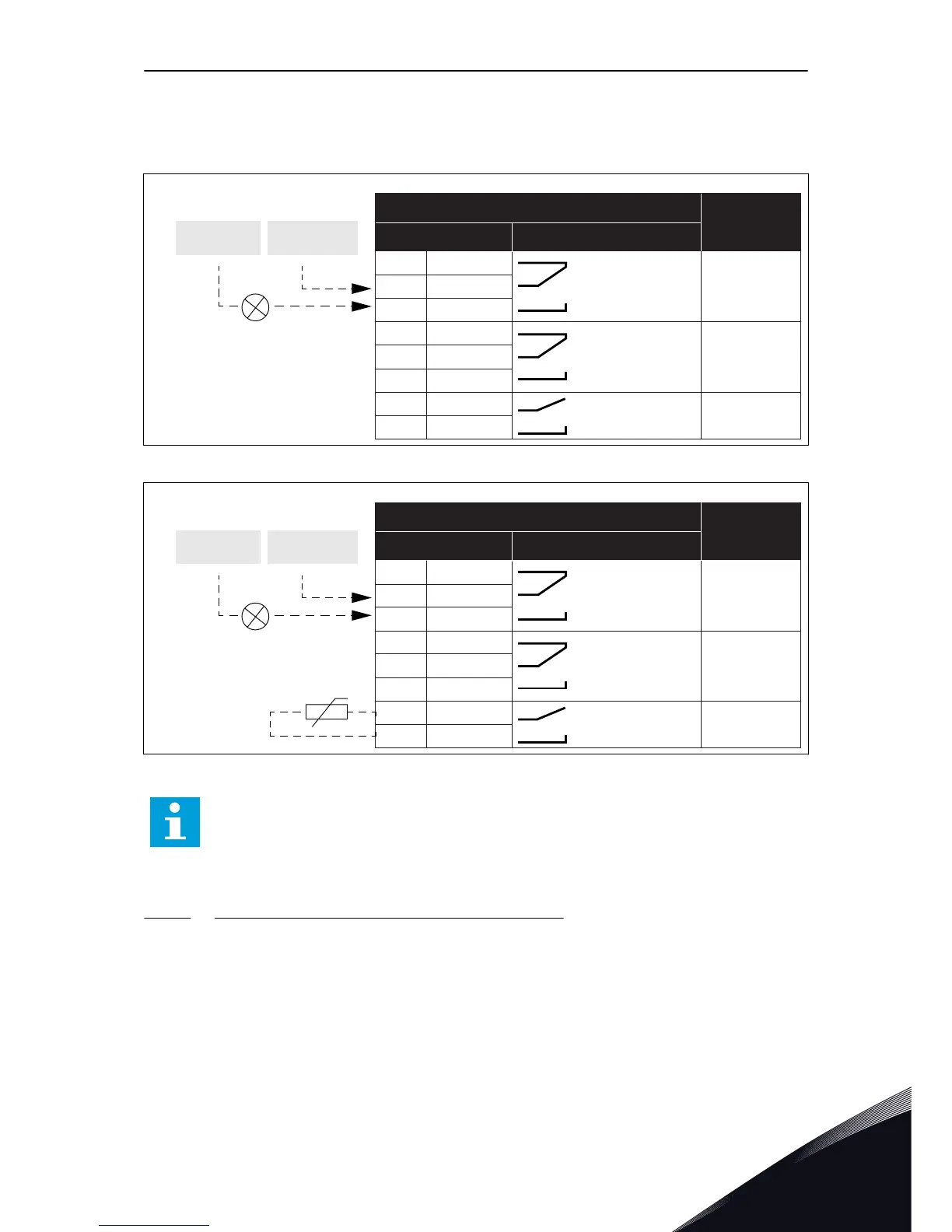

Fig. 27: The standard relay board (+SBF3)
RO1 NC
RO1 CM
RO1 NO
RO2 NC
RO2 CM
RO2 NO
TI1+
TI1-
21
22
23
24
25
26
28
29
RUN
RUN
FAULT
NO ACTION
Relay output 1
Relay output 2
From Standard I/O board
Terminal Signal
Default
Relay board 2
From term.
#12
From term.
#13
Thermistor input
Fig. 28: The optional relay board (+SBF4)
NOTE!
The Thermistor input function is not automatically active.
To use the Thermistor input function, you must activate the parameter Thermistor Fault in
the software. See the Application Manual.
7.2.2.1 Selection of terminal functions with DIP switches
You can make 2 selections with the DIP switches for specified terminals. The switches have 2
positions: up and down. You can see the location of the DIP switches and the possible
selections in Fig. 29.
