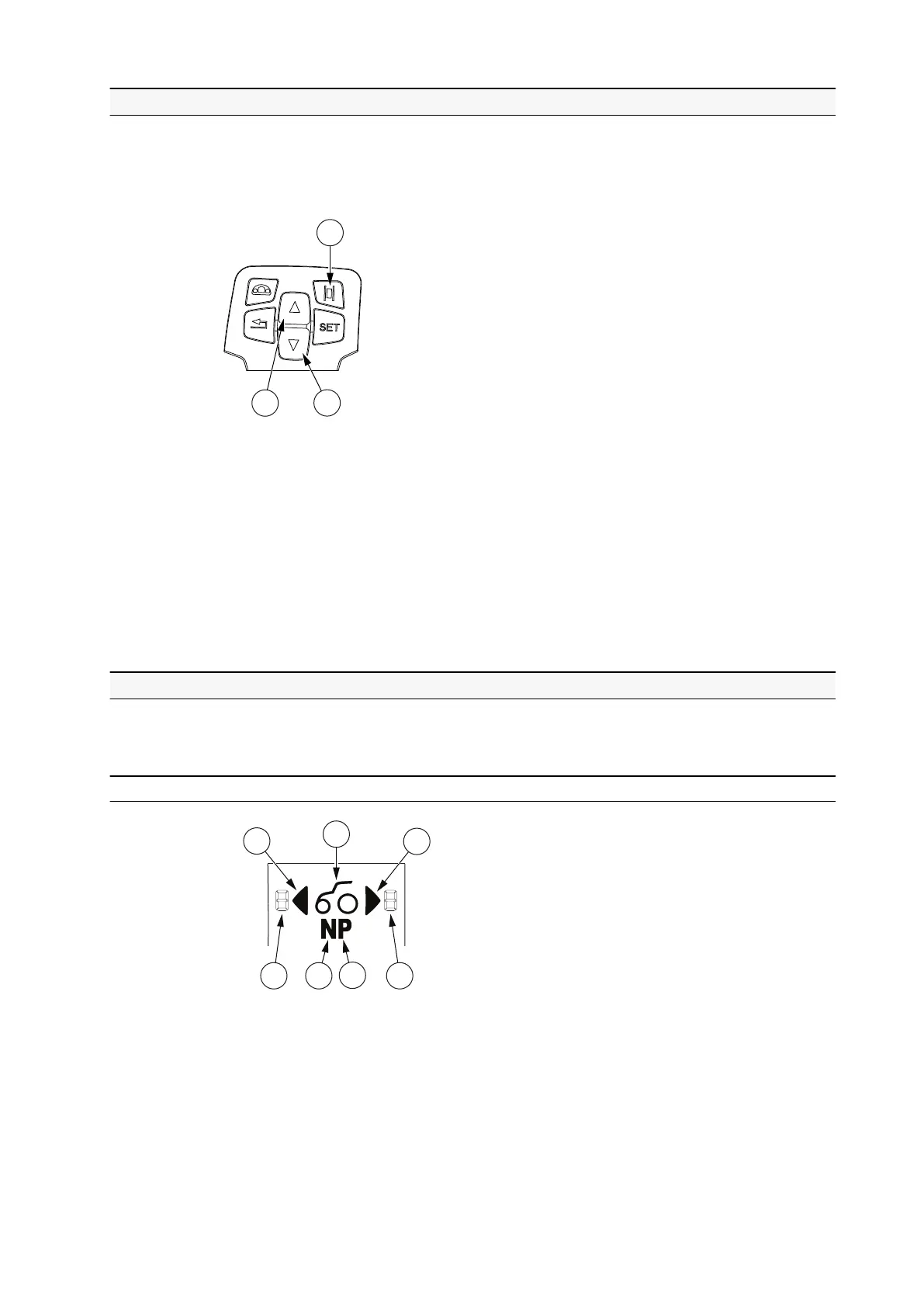

3.11.1 A-pillar display control panel
The A-pillar display control panel is located on the dashboard.
You can use the control panel for changing between different views in the
display.
GUID-E4D55525-0AF6-46EB-B1FF-7CDE5701AD0D
1. A-pillar display selection
2. Arrow up
3. Arrow down
• You can change the control panel operation from the Proline instrument
panel to A-pillar with the A-pillar display selection button. By default, Proline
is active in the control panel.
• You can scroll between functions and views with the up and down arrow
buttons.
3.11.2 Drive display
The drive display is divided into power shuttle section, transmission section and
general information section.
3.11.2.1 Power shuttle section
GUID-50D54B96-AF65-44AC-8EAB-9A66B04F08FE
1. Tractor symbol
2. Forward/reverse driving direction arrow
3. Preprogrammed Powershift gear symbol
4. Transmission neutral symbol
5. Parking brake symbol
3. Operation
- 153 -
