• Electrical steering valve
• A bracket for automated steering system control unit (on the roof)
• Auto-Guide receiver on/off button
• Auto-Guide steering valve on/off button
• Auto-Guide remote activation button
3.22.1 Using Auto-Guide
Before Auto-Guide 3000 steering system can be used, and steering activated,
the receiver and the steering valve must be turned on. Refer to the Auto-Guide
3000 user manual for more information on timer settings of the receiver.
GUID-39C8ECE9-B2E0-45D2-A707-8EDE9AC41982

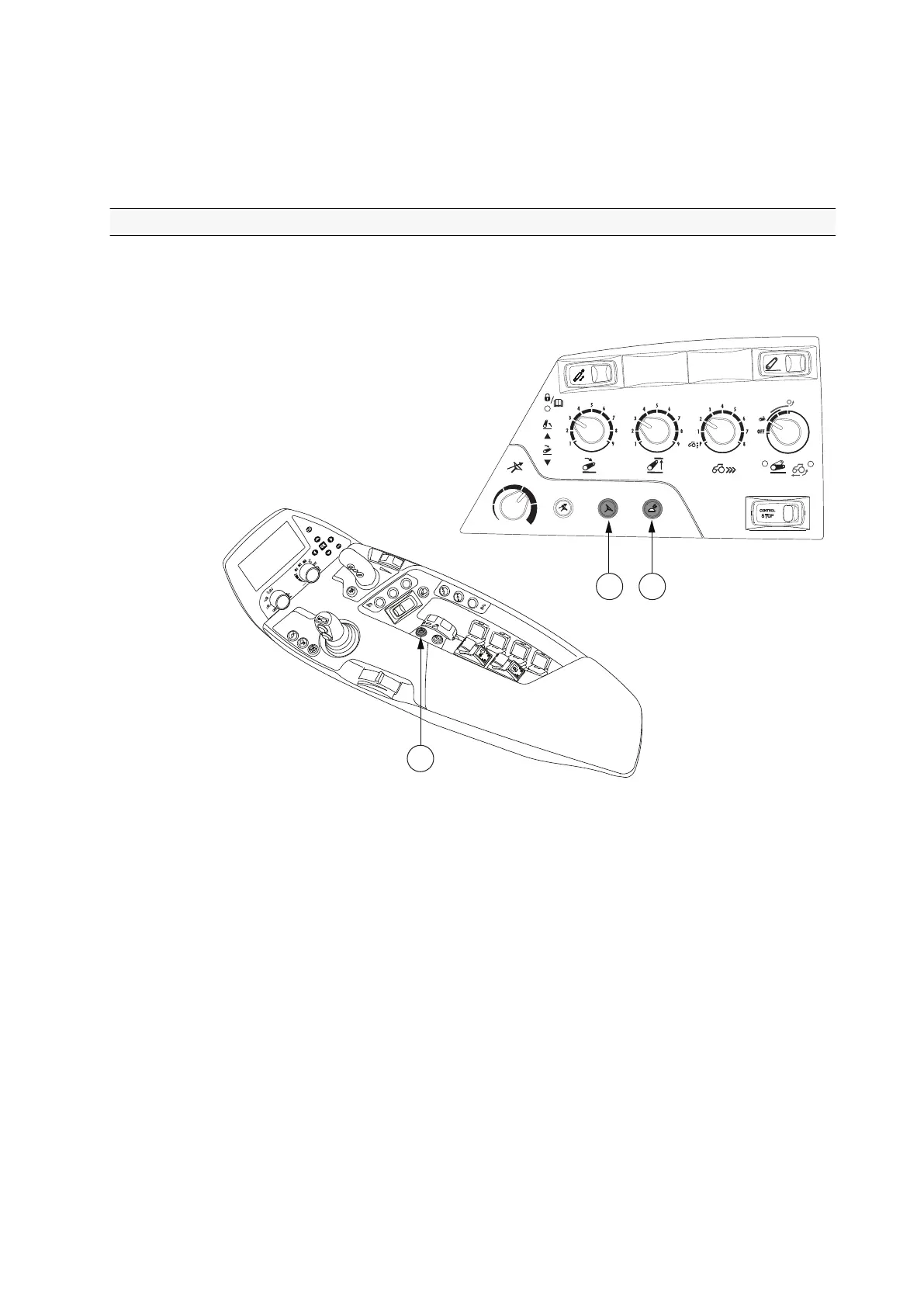

1. Auto-Guide steering valve ON/OFF button
2. Auto-Guide receiver ON/OFF button
3. Auto-Guide remote activation button
• Press the Auto-Guide receiver ON/OFF button on the side panel to turn the
Auto-Guide receiver on or off.
When on, the symbol on the push button is lit green.
Turning off the receiver also turns off the steering valve, if steering valve was
on.
NOTE: The receiver can stay on even when tractor power is turned off. Refer
to the Auto-Guide 3000 user manual for more information on timer settings.
The main power of the tractor is on for a maximum of one hour after the
ignition switch is turned off.
