3.20 Implement signal connection
3.20.1 Implement signal connector
The implement signal connector (extra equipment) complies with the ISO 11786
standard.

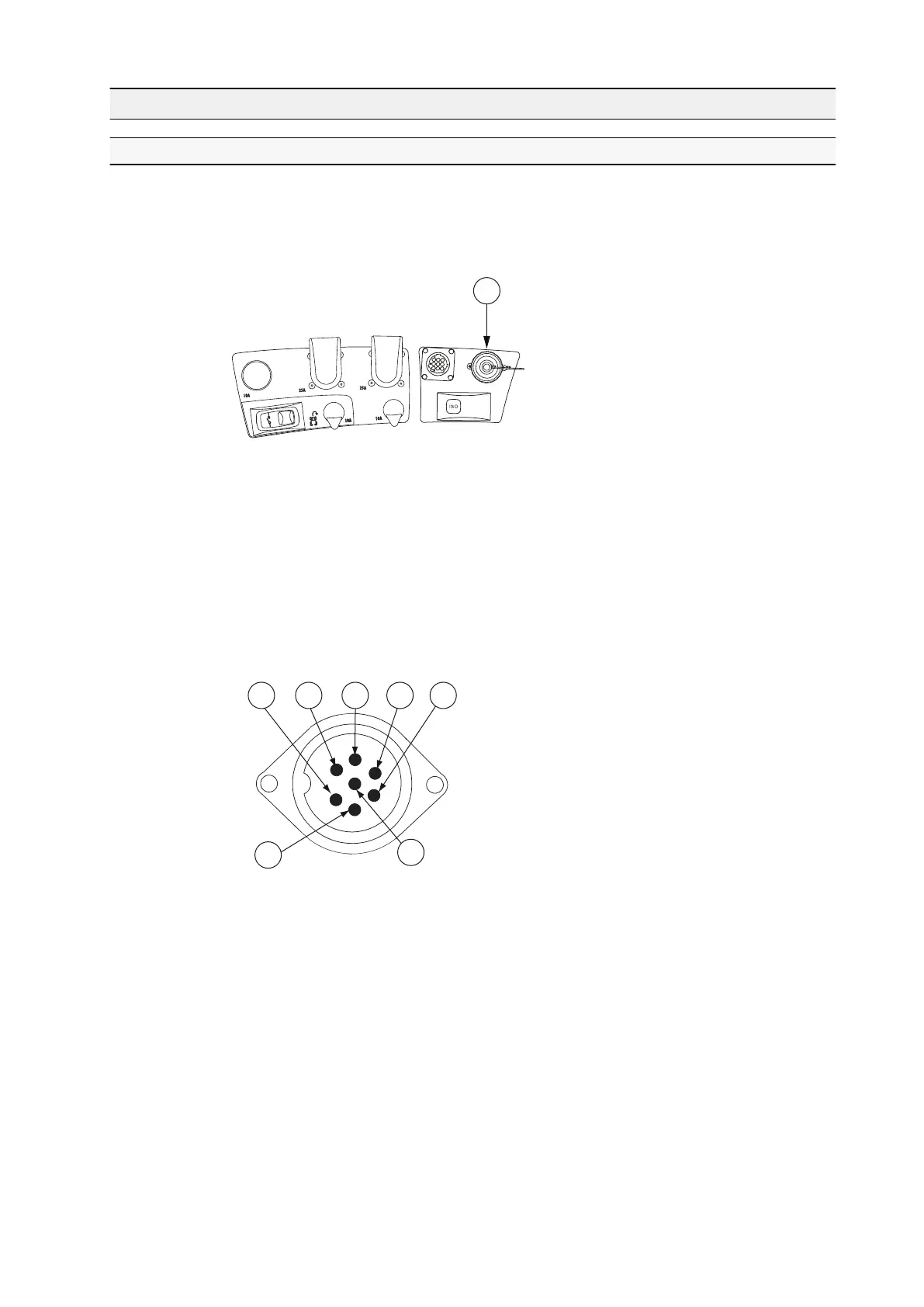

The connector is located on the side panel in the cab.
GUID-17E63215-2963-443F-8C88-D7059BEEBB6E
1. Implement signal connector
An implement connected to the connector can use the following tractor
information:
GUID-E1A08017-905E-416D-AD1D-C0DC97729F19
1. Speed information of the radar (extra equipment), 130 pulses/m
2. Power supply max. 5 A
3. Rear linkage position (0–10 V)
4. In work (≤1.5 V)/out of work (≥6,3 V)
5. Rear power take-off (PTO) speed, 6 pulses/round
6. Transmission speed (wheel speed), 130 pulses/m
7. Ground
3. Operation
