Valtra T series Versu

2.6.3 Linkage
2.6.3.1 Rear linkage
CONTROL
STOP
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
1
2
3
4
5
6
7
12
13
14
8
11
10
9
GUID-3042C29A-D4B5-4D11-B463-104B1EC1AB2E

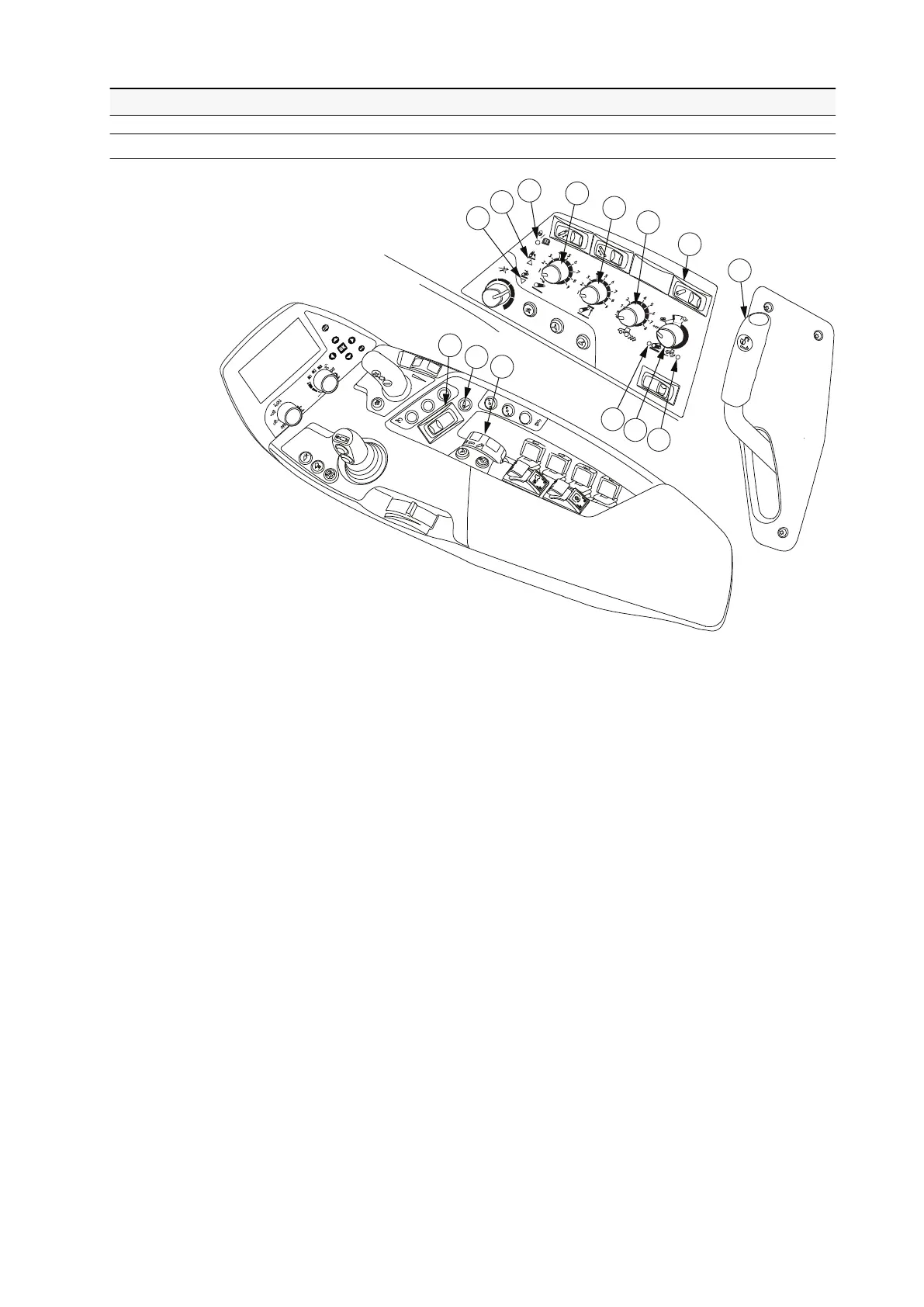

1. Lowering indicator light
2. Lifting indicator light
3. Diagnostic light
4. Lowering speed selector
5. Max lifting height selector
6. Draft control selector
7. Lifting/lowering switch
8. Trailer hitch release lever (optional)
9. Lift/stop/lower switch
10. Override button for position control knob
11. Position control knob
12. Drive balance control light
13. Drive balance control, slip control system (optional)
14. Slip control light (optional)
2. Instruments and controls
- 37 -
