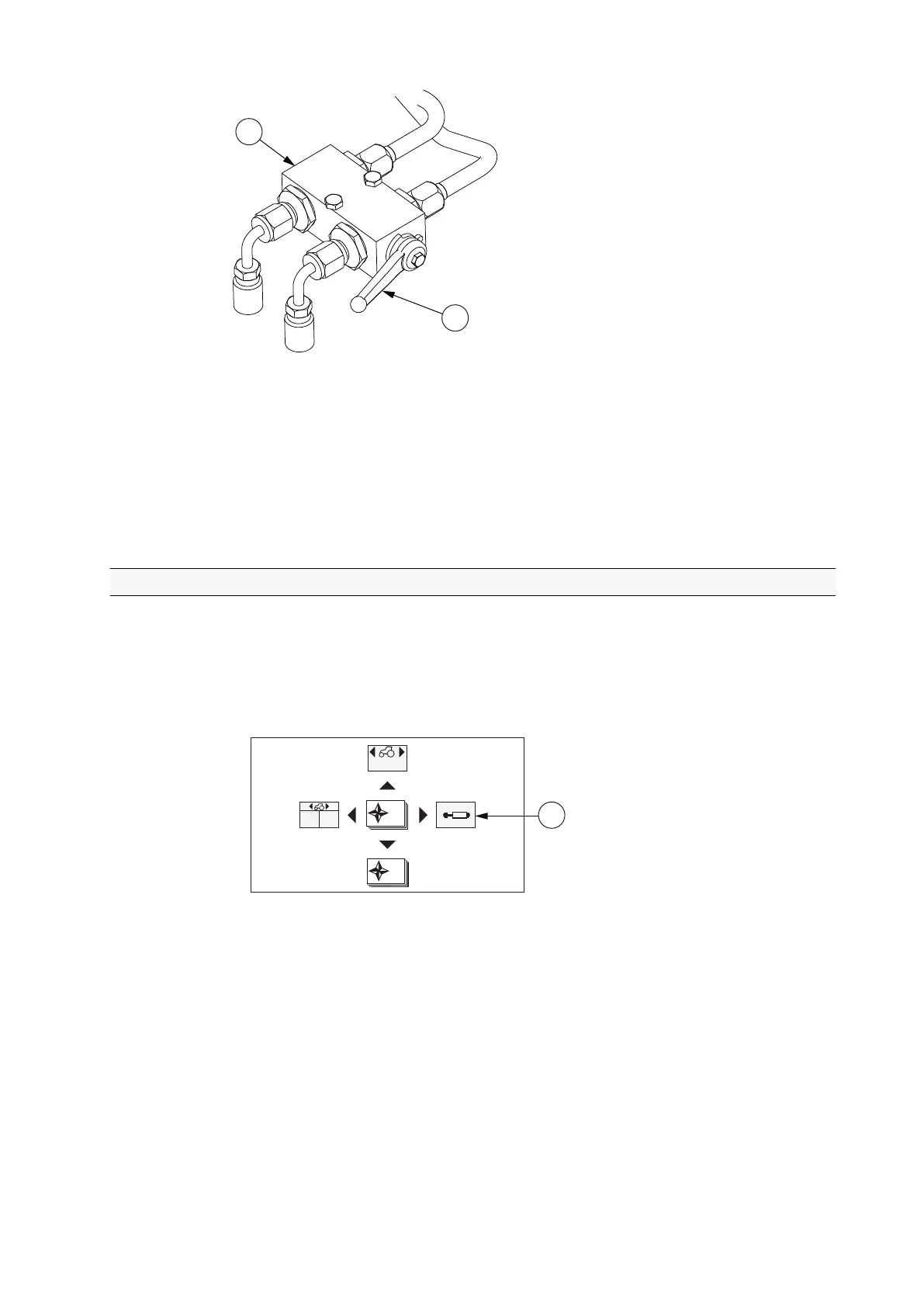

1. Shut-off valve
2. Shut-off valve lever in closed position
• To use the front linkage, open the shut-off valve by pulling the lever to
horizontal position.
• To use the rear valve, close the shut-off valve by pushing the lever to top
position.
3.15.2 Changing the auxiliary hydraulics settings
You can change your own user settings for auxiliary hydraulics functions. The
user settings are changed through the tractor terminal display on the armrest.
1. Press ESC button.
2. Press the right arrow button to enter the hydraulics settings view.
GUID-0575BAAE-3925-4156-8184-AF76BBE3869C
1. Auxiliary hydraulics settings view
If the U-Pilot memory is selected, the implement name and the U-Pilot
symbol are shown on the top right corner of the display.
3. Select the valve point to be set with the arrow buttons.
A short press moves the box in the selected direction one field at a time. A
long press moves the box in the selected direction continuously.
3. Operation
- 217 -
