4 C3 The speed range (A, B, C or D) and the Powershift gear (1, 2, 3, 4 or 5) are lit when the
speed range and Powershift are preprogrammed for the backward power shuttle.
5 P When the parking brake is on, the symbol (P) is lit. If the parking brake is engaged while
running, the symbol P flashes until the driving speed is below the engaging limit speed
(factory-adjusted 3 km/h).
N
The symbol (N) is lit when the power shuttle lever is in the centre position (N). The N
symbol flashes together with the driving direction arrow when the Automatic Traction
Control is activated and the power shuttle lever is not in the centre position (N) or in the
parking brake position (P).
3.12.4 Transmission-related drive view symbols

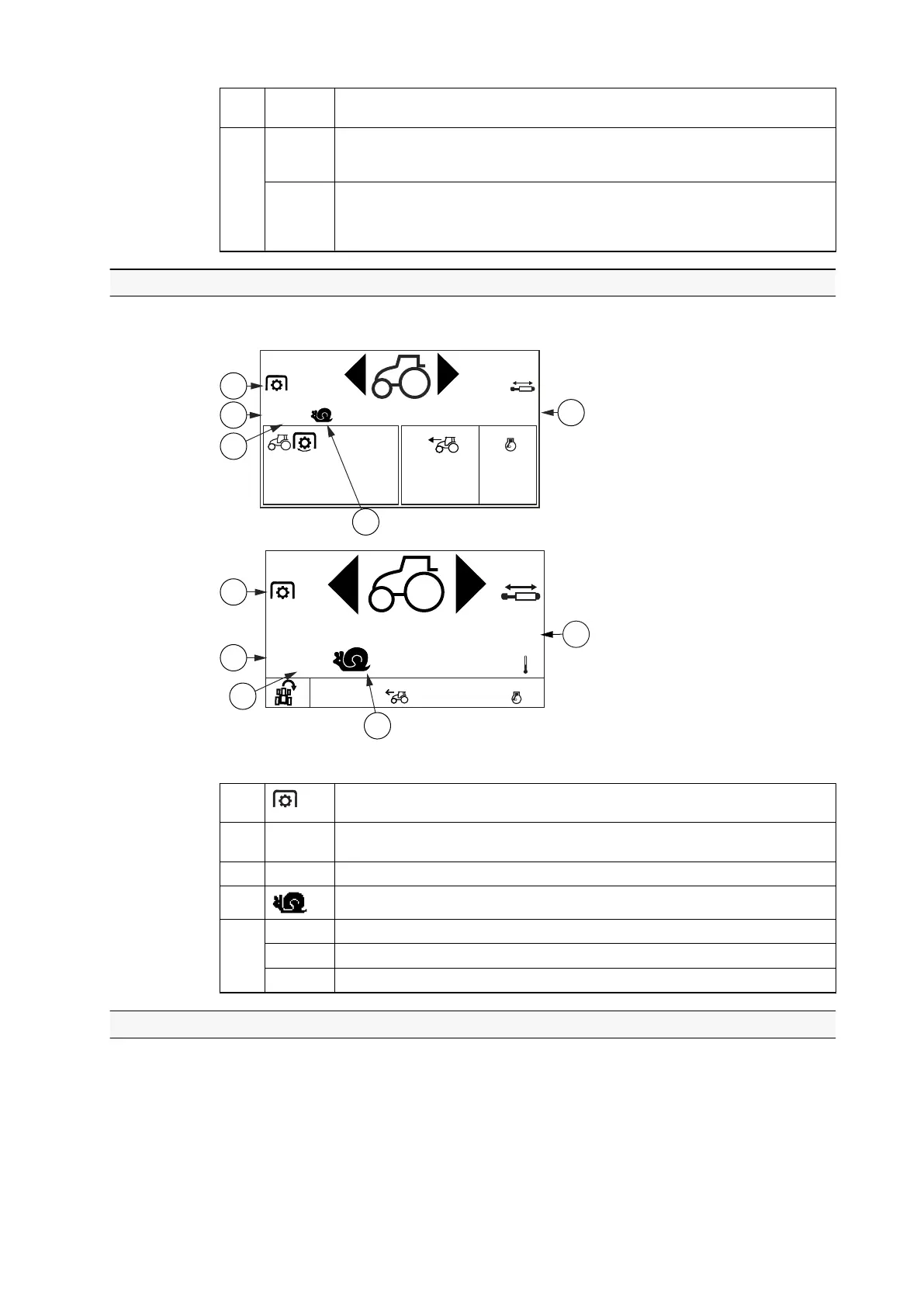

The transmission-related symbols in both large and split drive views:
RPM
240
Cruise
1 2.9
2 6.2
Cruise
0
1
2
3
GUID-FDE285DF-72B8-4D4F-AE62-DF3DD90E471D
Cruise
2
13.0
1310
1
2
3
13 °C
C3
A5
2
Cruise
4
P
AUTO 1
B4
GUID-A3A784C3-F880-43E4-AF12-7F6026685289
1
The symbol is lit when the Auto PTO start function is active.
2 B This field shows the selected speed range (A, B, C or D). A pop-up window indicating the
speed range change shows on the display until the requested speed range is engaged.
3 4 The selected Powershift gear number (1, 2, 3, 4 or 5).
4 The creeper gear symbol is lit when creeper speed range is engaged.
5 AUTO 1 The symbol is lit when the shifting automatics programme 1 is selected.
AUTO 2 The symbol is lit when the shifting automatics programme 2 is selected.
The field is empty when there is no shifting automatics programme selected.
3.12.5 General information drive view symbols
The general information symbols in both the large and split drive views:
