For heavy proportional use it is recommended to use the 1¾” (45 mm) shaft.
You can engage the ground speed PTO by turning the speed control knob to the
GSPTO position and activate it by pressing the switch for rear PTO.
IMPORTANT: If the ground speed power take-off is activated and the PTO speed
exceeds 1800 rpm, the buzzer alarms and message “SLOW DOWN, PTO
SPEED TOO HIGH!” is shown on the instrument panel display. If this occurs,
immediately decrease the rpm to prevent damage to the rotating parts of the
PTO.
The activation and deactivation of the ground speed PTO is indicated in the
proline instrument panel.
When the proportional ground speed PTO is activated, the maximum speed is
limited to 15 km/h. The actual driving speed may momentarily exceed the limit,
but then the engine speed is automatically set to idle until the driving speed is 15
km/h or less.
GUID-0D31E500-E360-4863-B5FE-DB5B63CF763F

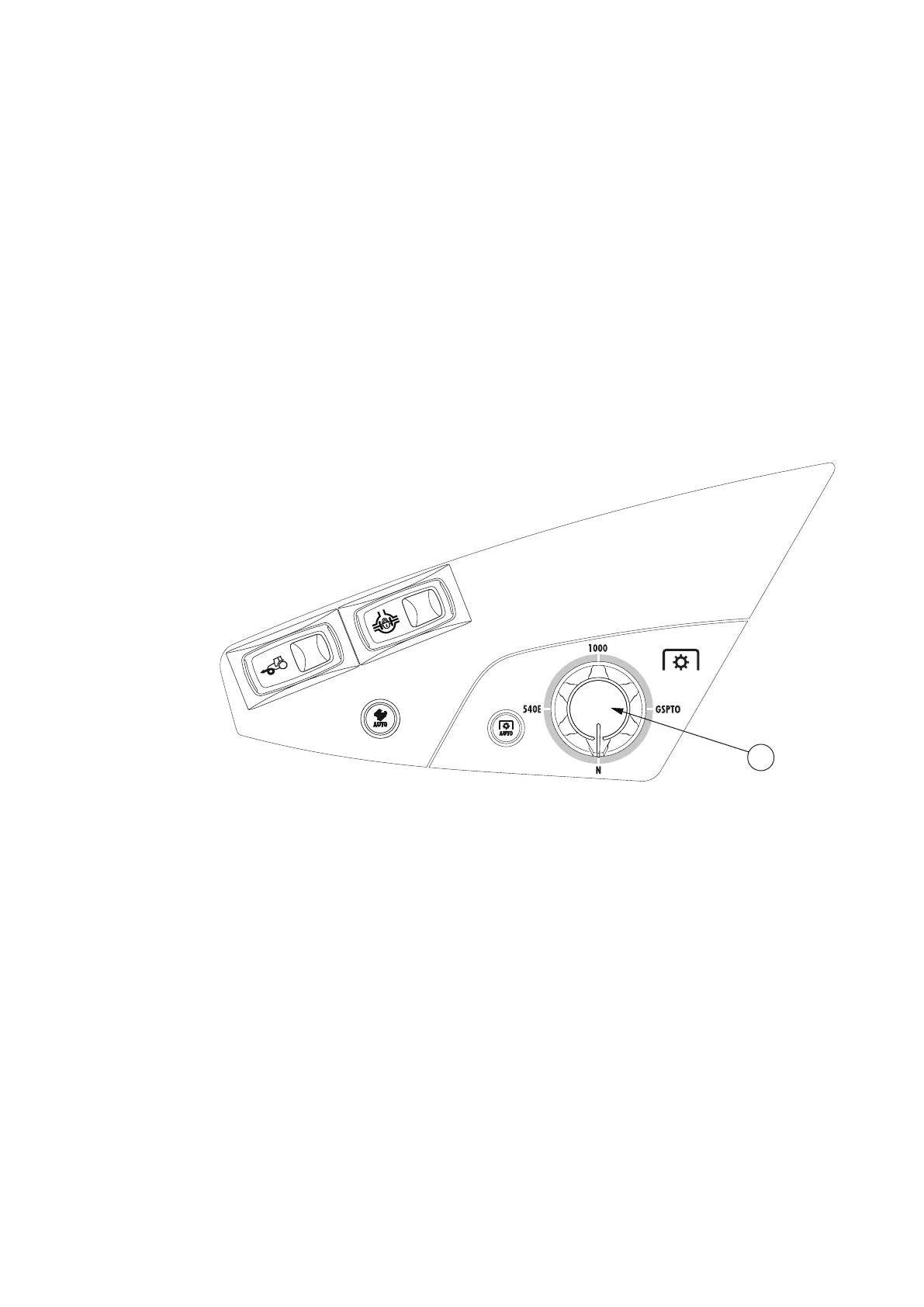

1. Speed control knob for rear PTO
3. Operation
- 245 -
