slope, the drawbar eye must be of the rotating type to prevent
breakage.
IMPORTANT: Use only drawbar eyes which comply with the regulations and are
undamaged. When using other than allowed drawbar eyes, the warranty lapses
and the responsibility of the manufacturer is no longer valid.
GUID-288EE569-37CE-4942-B519-2E306B7CEAFD

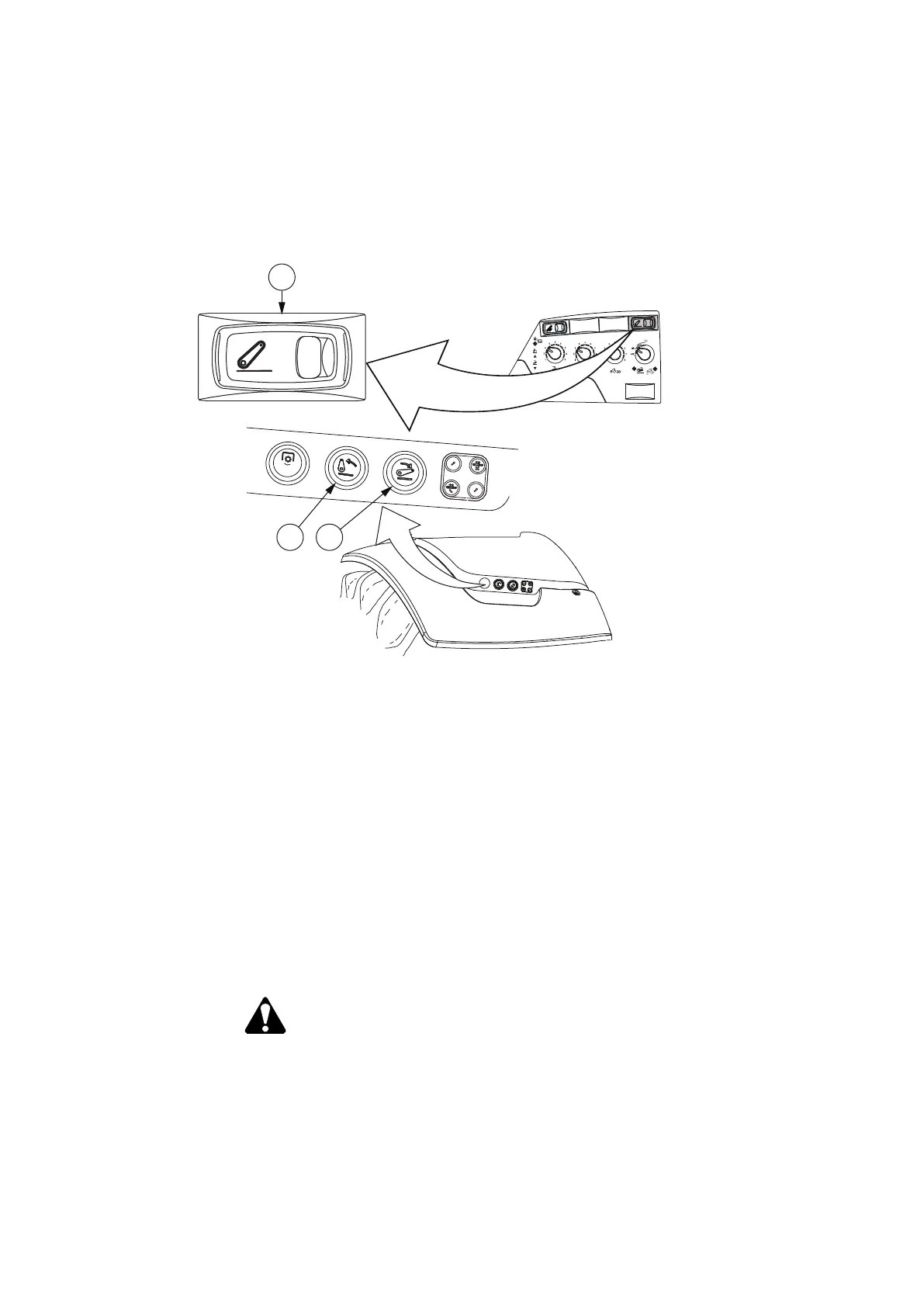

1. Lifting/lowering switch
2. Lifting push button
3. Lowering push button
1. Reverse the tractor up to the trailer/implement.
2. Align the pick-up hitch hook or drawbar pin to the eye of the trailer/implement
beam.
3. Press the symbol side of the lifting/lowering switch or the lifting push button
until the hitch latches.
You can hear a click and the trailer hitch release lever jumps a little.
4. Press the lifting/lowering switch side opposite to the symbol or the lowering
push button to lower the linkage slightly.
WARNING: When using a trailer, make sure that the hitch latch is
locked.
Ensure that the hitch is supported by the latch and does not lower with the
linkage.
5. Check the linkage position.
IMPORTANT: Adjust the linkage so that it does not hit the towed device or
power take-off shaft at any circumstance.
3. Operation
- 278 -
