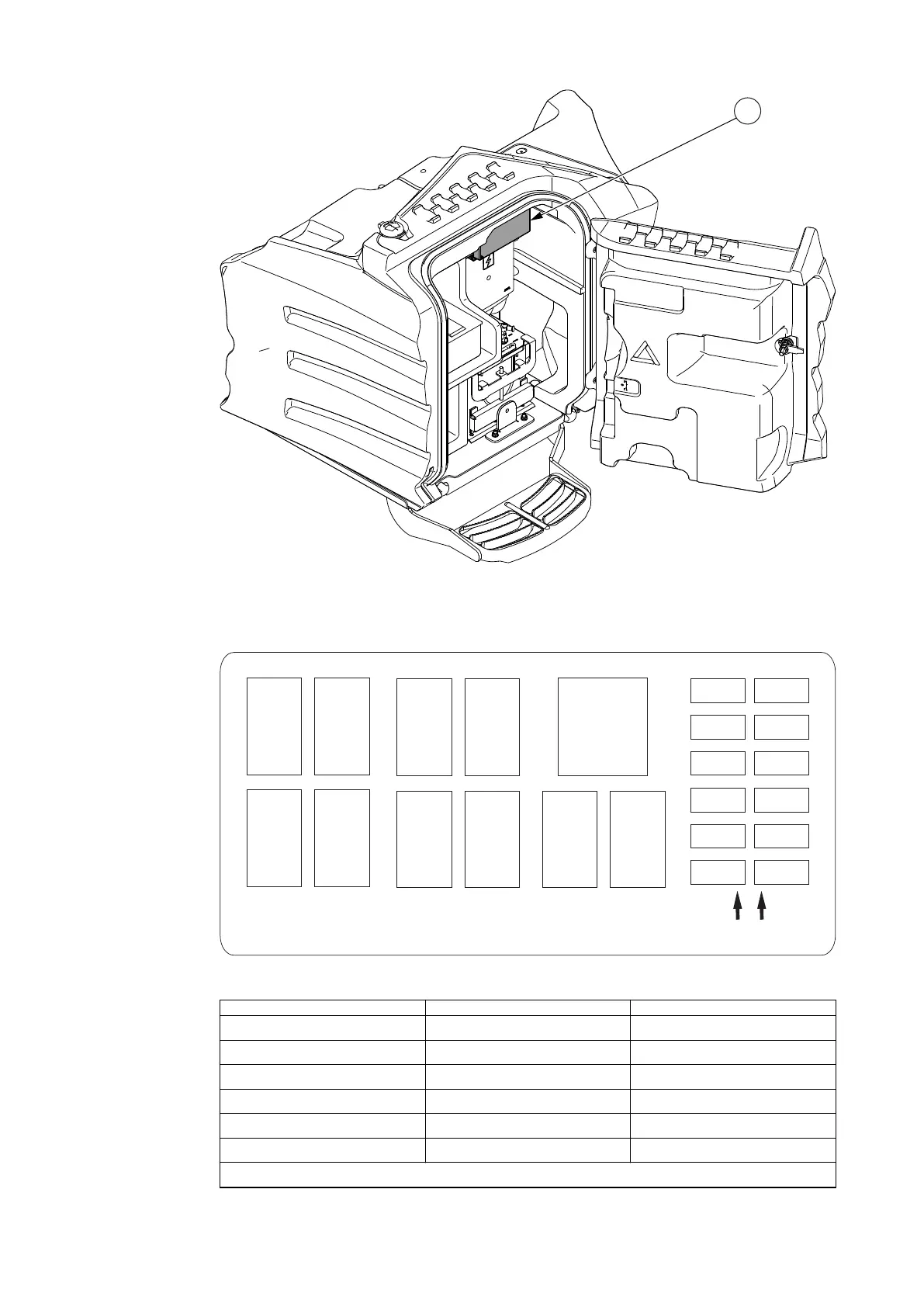

1. Engine electric centre
F7M F1M
F8M F2M
F9M F3M
F10M F4M
F11M F5M
F12M F6M
K16M
K14M
K11M K5MK6M
K7MK9MK10M
K12M
K15M
K13M
INPUT
GUID-DCBB31F5-C0AE-43DC-837F-B88F3DCE4AB1
Fuses
Nominal current Description
F1M 25A DEF system heaters
F2M 25A Engine control unit
F3M 3A Engine control unit wake up
F4M 15A Memory voltage
F5M 15A Dipped beam
F6M 10A High beam
Table continued on next page
