Valtra T series Versu

CAUTION: Do not attempt to adjust the seat while driving. There is an
increased risk of loss of control.
off
on
1
2
6
3
4
5
8
7
10
9
11
12
13
14
15
GUID-415AF9F9-7272-4394-9E91-E403FB5E4EF0

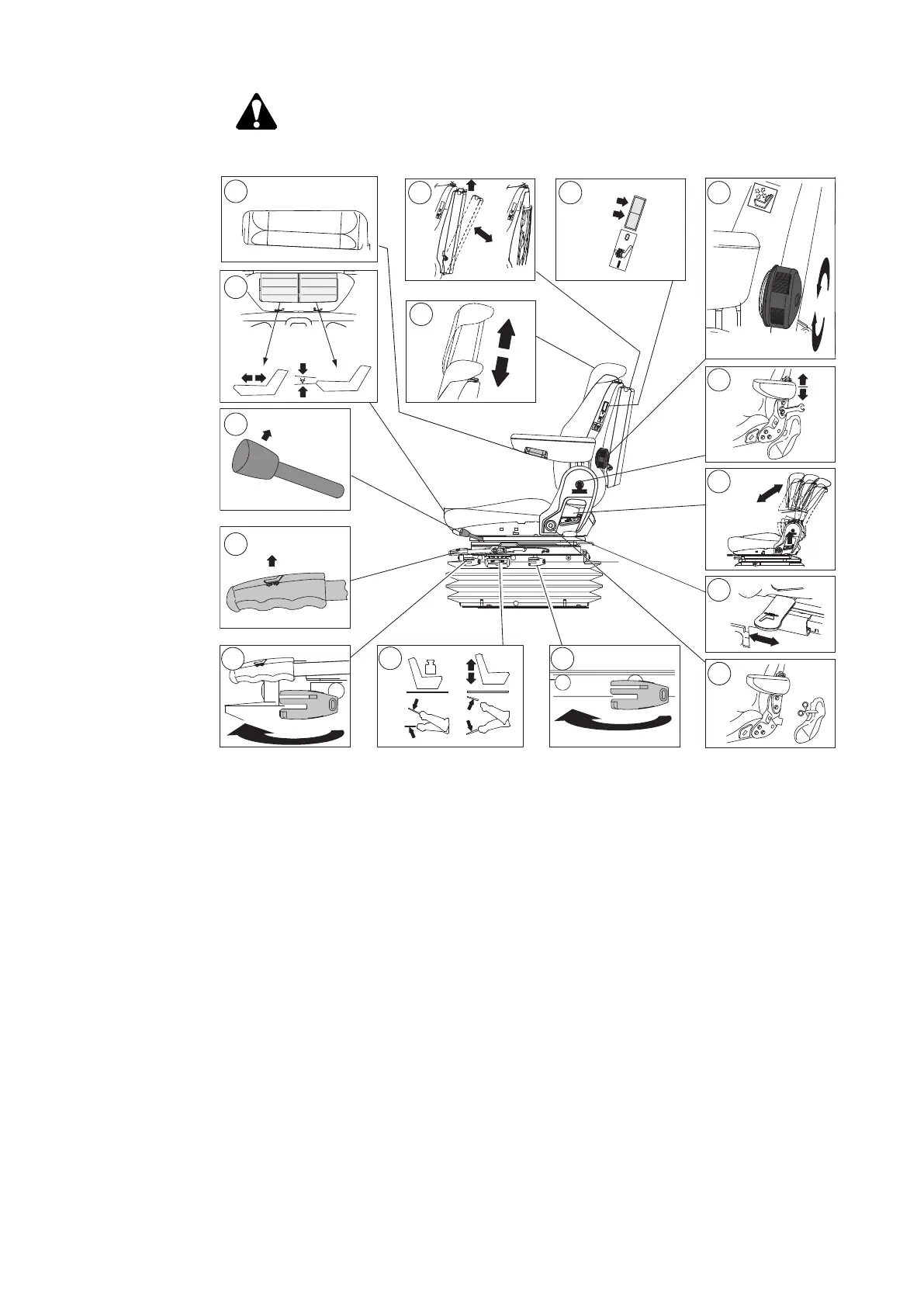

1. Armrest adjustment (Air-suspended +)
2. Storage compartment (Air-suspended +) or net (Air-suspended) for manuals
3. Seat heating
4. Lumbar support adjustment (Air-suspended +)
5. Seat depth and cushion angle adjustment
6. Headrest height adjustment and removal
7. Seat turning lock/release
8. Armrest height adjustment
9. Backrest tilt adjustment
10. Forward/backward adjustment
11. Lateral suspension adjustment (Air-suspended + only)
12. Longitudinal suspension adjustment
13. Height and vertical suspension adjustment
14. Suspension stiffness adjustment
15. Seat belt anchor point
• Adjust the seat depth and cushion angle.
• To adjust the seat depth, pull up the right handle in the seat front.
• To adjust the seat cushion angle, pull up the left handle in the seat front.
3. Operation
- 55 -
