• F (front position) = forward driving direction
• N (centre position) = neutral
• R (rear position) = reverse driving direction
• P = parking brake position
• Engage the parking brake:
Stop the tractor completely. Pull up the collar round the power shuttle lever
and move the lever to the parking brake (P) position.

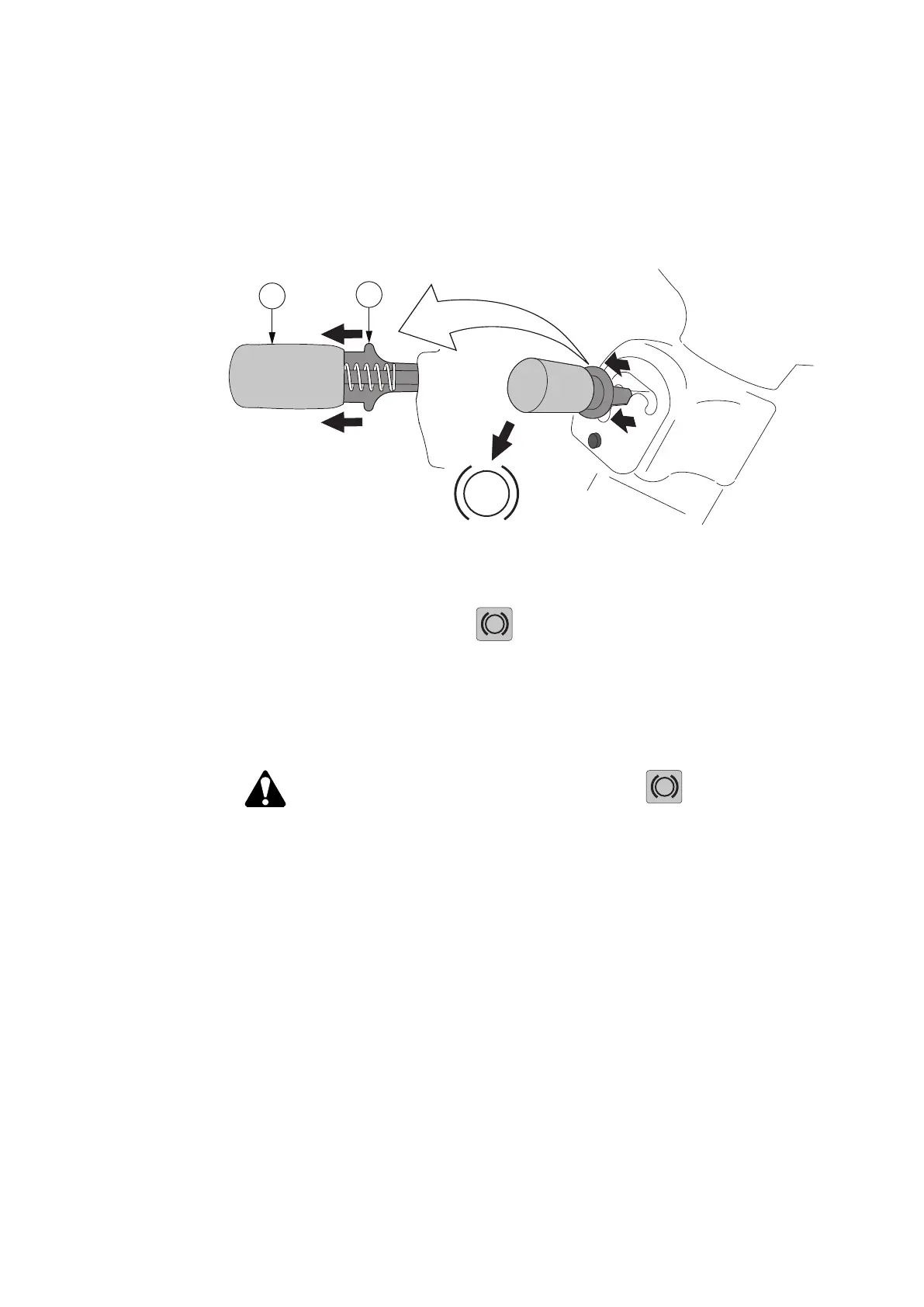

GUID-C8DBFD22-64C1-4BCB-B3E6-5FCFD5184ECD
1. Power shuttle lever
2. Collar
The parking brake indicator light
on the instrument panel and the P
symbols on the A-pillar and tractor terminal displays are lit. If the indicator
light is flashing, the engagement of the parking brake is delayed.
The parking brake engages when driving speed is approximately 3 km/h or
lower. If you move the power shuttle lever to the P position at higher driving
speeds, the P symbols on the A-pillar and tractor terminal displays flash until
the speed drops below the limit.
WARNING: The parking brake indicator light
flashes or
message “PARKING BRAKE FAULT!” is shown on the instrument
panel display if there is a fault in the parking brake system. In
addition the buzzer alarms continuously. The parking brake might
not function properly. Repair the fault before continuing to drive.
• Disengage the parking brake:
Pull up the collar round the power shuttle lever and move the lever away from
the parking brake (P) position to the neutral (N) position. If the indicator light
is flashing, the disengagement of the parking brake is delayed.
• Select the desired driving direction:
Move the power shuttle lever to the forward (F) or reverse (R) driving
direction. Change the driving direction at lower driving speeds with high load
so that there is less stress on the power transmission.
3. Operation
- 94 -
