Vatech PAX-I User Manual

PaX-i (PCH-2500) User Manual
35

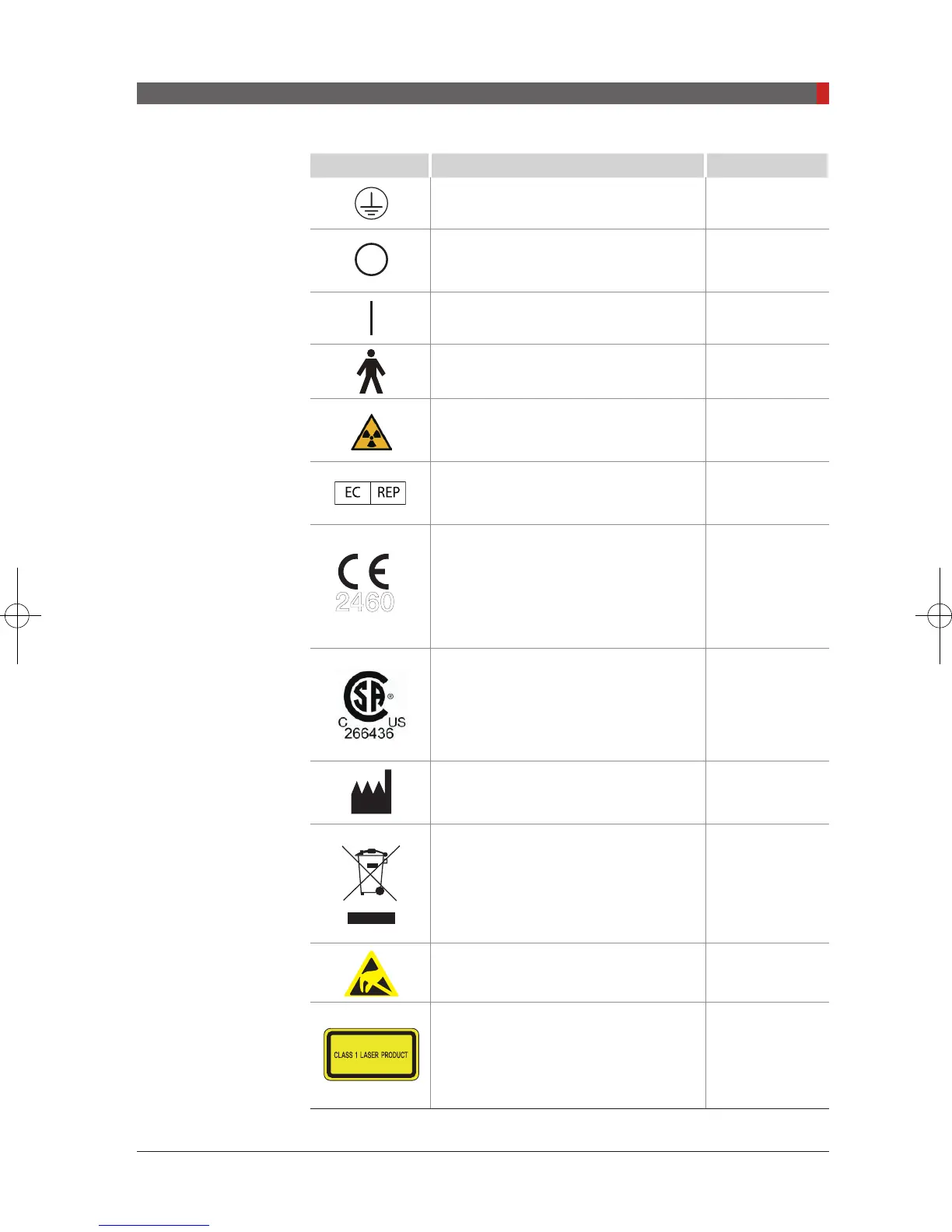

3. PaX-i Imaging System Overview
Symbols Description Location
Protective earth (Ground) Power board
Off (power: disconnect from the main
switch)
Main switch
On (power: connect to the main switch) Main switch
TYPE B Equipment Label
Radiation hazard Label
EC representative Label
2460
The CE symbol indicates that this
product complies with the European
Directive for Medical Devices 93/42/
EEC as amended by 2007/47/EC as a
class IIb device.
Label
CSA mark No.266436 Label
Address where the equipment was
manufactured
Label
This symbol indicates that electrical
and electronic equipment must not
be disposed of as unsorted municipal
waste and must be collected separately.
Label
This symbol warns ESD hazard.
MCU board/
Board package
This symbol indicates that this
equipment is classified as a CLASS 1
LASER PRODUCT in accordance with
IEC 60825-1 ED.2 regulations.
Label
Pi_u272_en_20180514.indd 35 2018-05-14 오전 11:03:13

Vatech PAX-I Specifications

General

Focal Spot Size	0.5 mm
Image Receptor	Digital sensor
Compatibility	DICOM 3.0
Image Detector	CMOS
Power Supply	220-240 VAC, 50/60 Hz
Sensor Type	CMOS
X-ray Generator	High Frequency
Tube Voltage	60-90 kVp
Tube Current	4-12 mA
Power Requirements	100-240V AC, 50/60Hz
Usage	Dental diagnostics
