Vatech PAX-I User Manual

PaX-i (PCH-2500) User Manual
69
6. Acquiring PANO Images
6.3.1 Pano Standard Mode
Positioning the patient

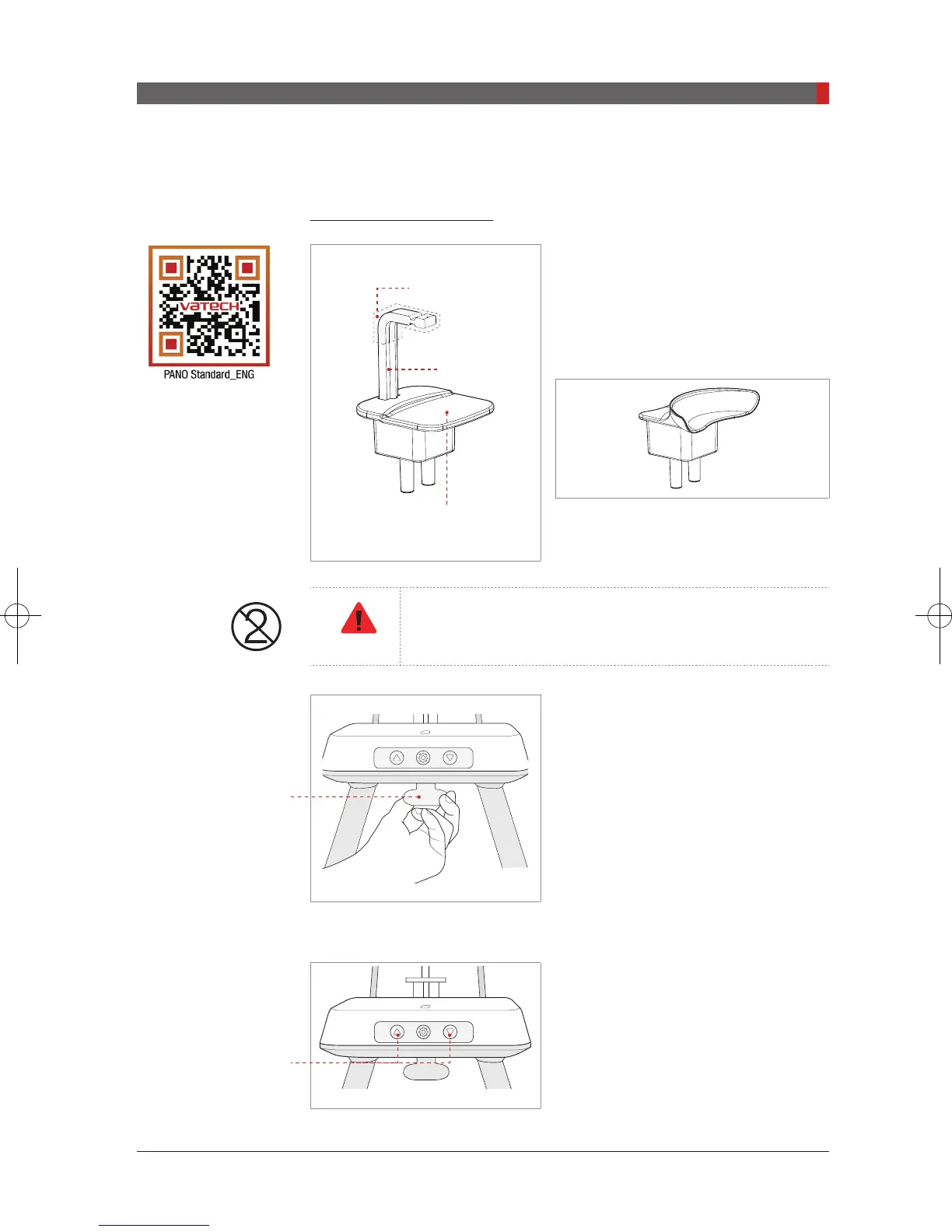

A. Insert the normal chin support and bite
block into the chin support receptacle on
the equipment.
B. Place a hygienic cover over the bite
block.
*For patients who lack teeth, use the
edentulous chin support.
WARNING
The hygiene cover for the bite block is intended for single
use only. Always replace the hygiene cover for each new
patient.
C. Loosen the temple supports by turning
the temple support wheel.
D. Guide the patient —facing the chin support — to the equipment.
E. Adjust the height of the column using
the column up/down button or switch
(optional) until the patient’s chin rests
comfortably on the chin support.
Bite block
Hygiene cover
Chin support: Normal
Temple support wheel
Column up/down
button
*To link to the video
manual: scan the QR
code with smartphone
or pad.
Pi_u272_en_20180514.indd 69 2018-05-14 오전 11:03:24

Vatech PAX-I Specifications

General

Focal Spot Size	0.5 mm
Image Receptor	Digital sensor
Compatibility	DICOM 3.0
Image Detector	CMOS
Power Supply	220-240 VAC, 50/60 Hz
Sensor Type	CMOS
X-ray Generator	High Frequency
Tube Voltage	60-90 kVp
Tube Current	4-12 mA
Power Requirements	100-240V AC, 50/60Hz
Usage	Dental diagnostics
