3. PaX-i Imaging System Overview
 3.3

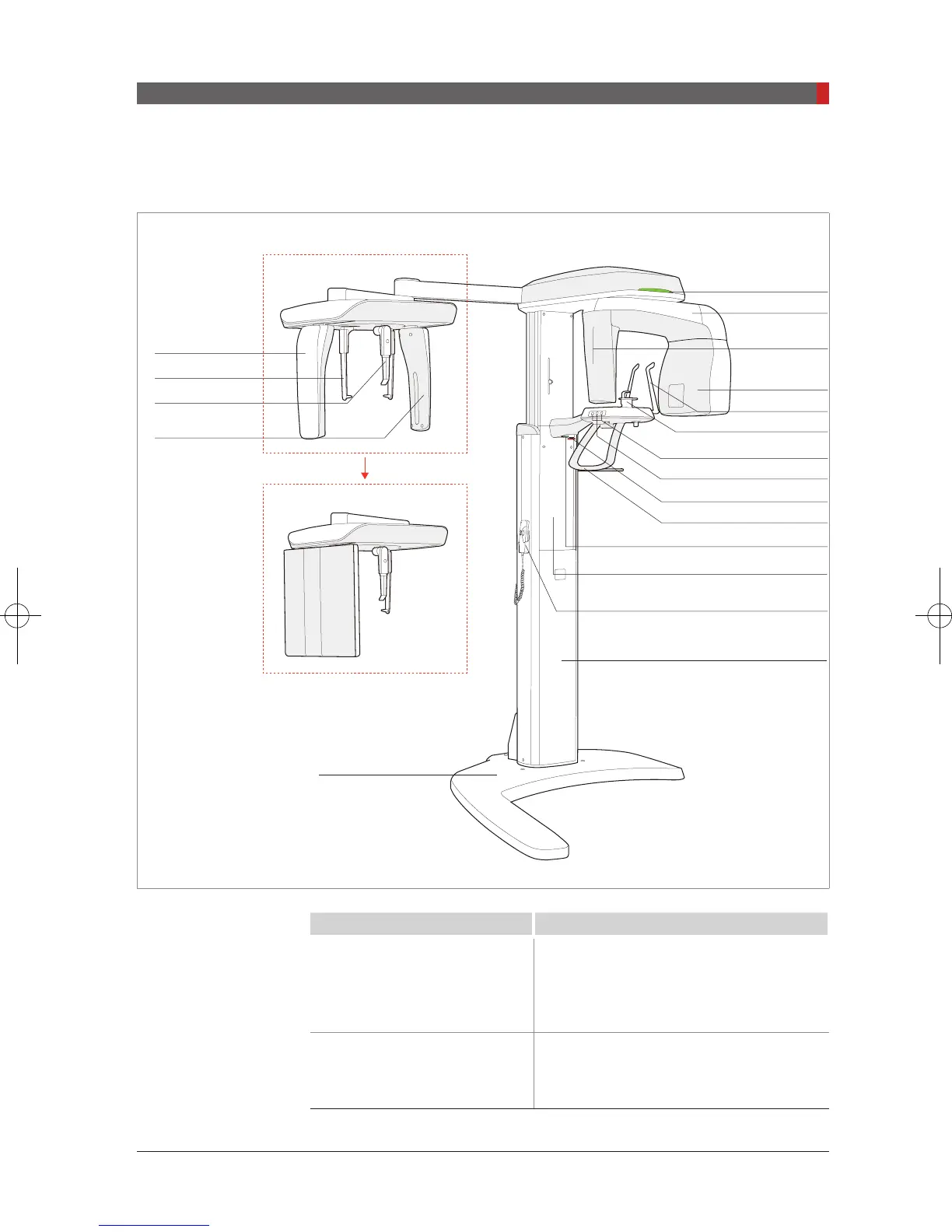

General View of the PaX-i
ROTATING UNIT
X-RAY SENSOR
LED LAMP
EAR RODS
X-RAY SENSOR(CEPH)
NARSAL POSITIONER
SECONDARY COLLIMATOR
TELESCOPIC COLUMN
COLUMN UP/DOWN SWITCH (OPTIONAL)
COLUMN UP/DOWN BUTTON
LASER BEAM ON/OFF BUTTON
ON/OFF SWITCH
BASE
X-RAY TUBE
CHIN SUPPORT
HANDLE FRAME
STATIONARY COLUMN
TEMPLE SUPPORT
EMERGENCY SWITCH
(PANO)
SCAN TYPE ( OPTIONAL)
ONE SHOT TYPE (OPTIONAL)
Item Details
X-RAY SENSOR (CEPH)
CEPH imaging sensor (optional)
-
Scan Type
-
One-shot Type
EAR ROD
Secures the patient’s head during CEPH
imaging.
