PaX-i (PCH-2500) User Manual
57
5. Getting Started

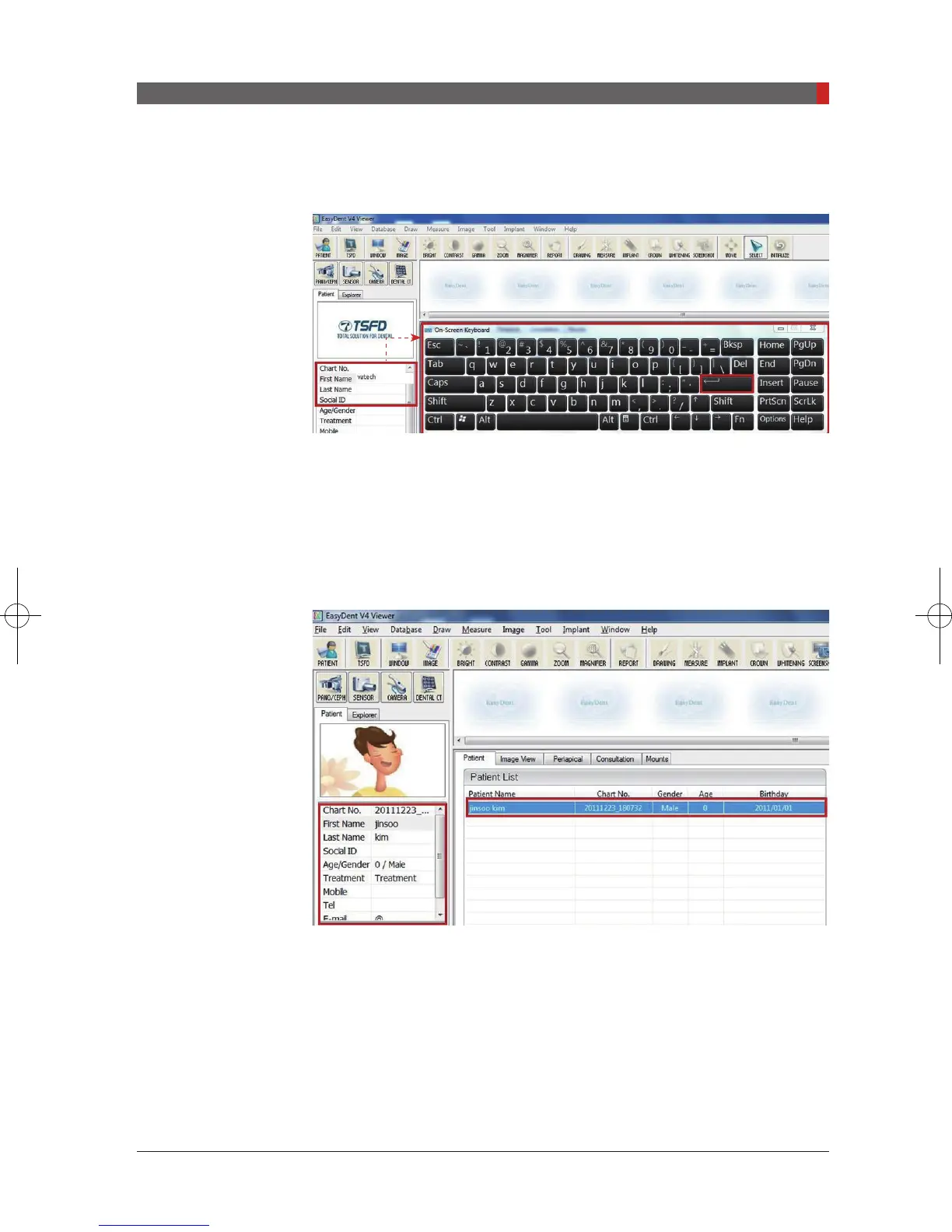

A. On the
Patient information pane,
double-click the
Chart No., First name,
or Last name
of the patient and the virtual keyboard will pop up.
B. Enter
the Chart No., First name, or Last name
of the patient by clicking the
mouse on the virtual keyboard and click the
Enter.
(The physical keyboard can
be used to do the same job)
C. Patient information can be displayed on the
Patient information pane
and
Patient List.
 5.3
Initiating the Imaging Program
A. First, click the patient information in the patient list, and click the
PANO/
CEPH
icon in the upper left corner of the EasyDent’s main window to open the
imaging program.
Double click
