Vatech PAX-I User Manual

PaX-i (PCH-2500) User Manual
66

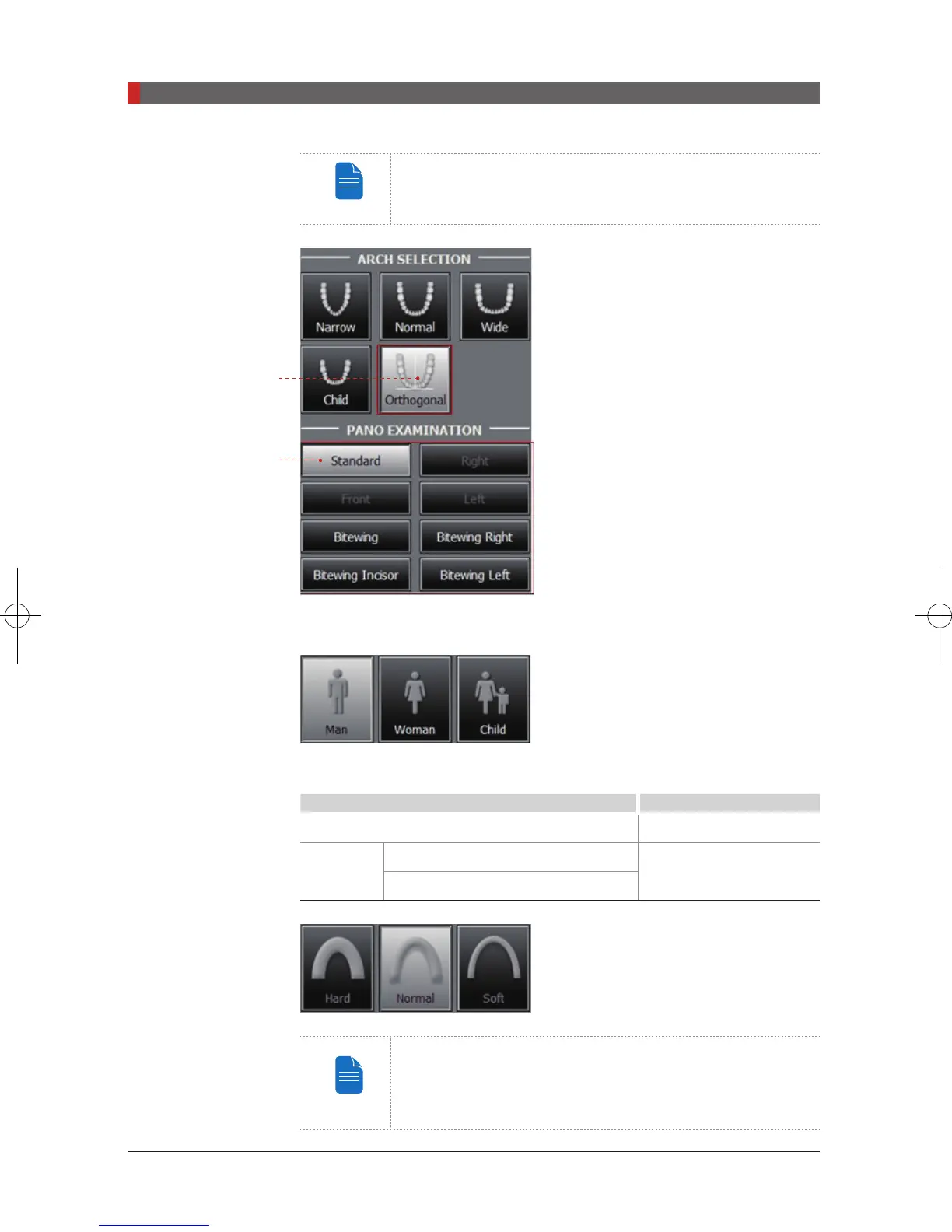

6. Acquiring PANO Images
NOTE
For more details about exposure time, refer to section 3.4:
Examination Programs and Exposure Time.
D. Select the patient’s arch type under
Arch Selection. By default, Normal is
selected.
Orthogonal:
This mode enables
overlapping regions of teeth to be
minimized when acquiring images in the
ROI. If the orthogonal arch is selected, its
sub-modes are activated.
E. Select the ROI for panoramic image acquisition under
PANO Examination.
F. The patient’s gender will be
automatically selected according to
the patient information registered in
EasyDent. Nevertheless, ensure that this
information is correct.
Age Group VATECH’s Standard
Child
≤ 12
Adult
Man
≥ 13
Woman
G. Select X-ray intensity.
NOTE
X-ray intensity (Hard, Normal, Soft) is according to the
operator's decision.
Soft ≤ Normal ≤ Hard.
Click
These sub-modes
activated
Pi_u272_en_20180514.indd 66 2018-05-14 오전 11:03:23

Vatech PAX-I Specifications

General

Focal Spot Size	0.5 mm
Image Receptor	Digital sensor
Compatibility	DICOM 3.0
Image Detector	CMOS
Power Supply	220-240 VAC, 50/60 Hz
Sensor Type	CMOS
X-ray Generator	High Frequency
Tube Voltage	60-90 kVp
Tube Current	4-12 mA
Power Requirements	100-240V AC, 50/60Hz
Usage	Dental diagnostics
