7. Cleaning
7.1 General information
The machine and any attachments and additional devices (optional) must
be cleaned daily.
Danger!
To prevent injury, take the following measures before cleaning.
• Press the OFF key on the machine control panel.
• Switch off the main switch of the machine to disconnect it from the
mains.
• Disconnect any attachments or additional devices (optional) from the
mains and remove the devices
Attachment operating instructions
Danger!
The linking gear can heat up at extremely high speeds (risk of burns). To
prevent injury, proceed extremely carefully when tting and dismantling
the part.
7.2 Removing parts to be cleaned
7.2.1 Filling horn and lling horn holder
• Undo lling horn nut (1) and remove lling horn (2). To do so, use
universal spanner (3).

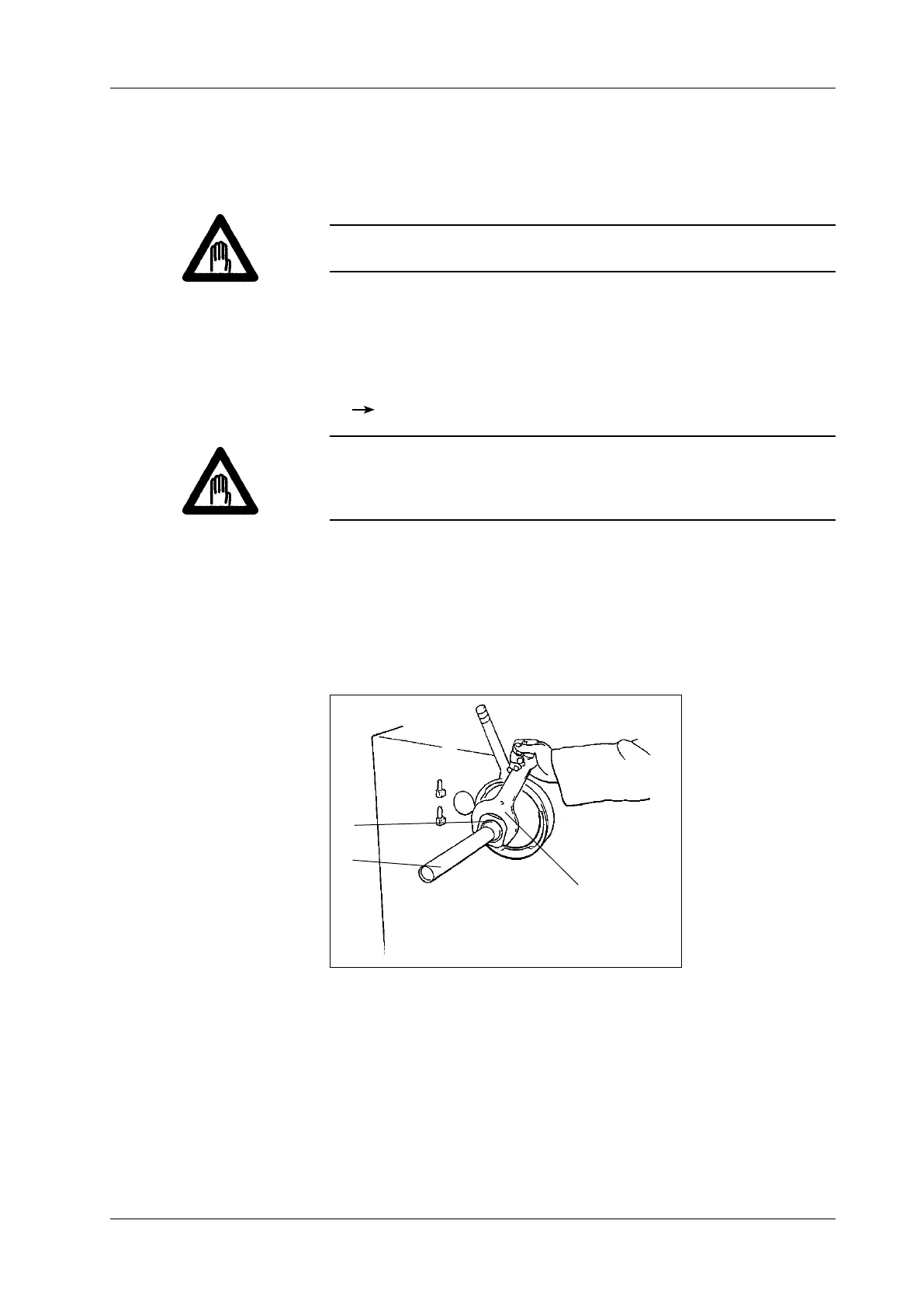

1 Filling horn nut
2 Filling horn
3 Universal spanner
Fig. 7-1
Removing lling horn
2
1
3
• Undo the locking nut with the handle anticlockwise until the bayonet
lugs come free and remove the lling horn holder.
