ROBOT HP7E / HP10E / HP12E / HP15E / HP20E3. Installation and commissioning
3-6 © VEMAG 2010
3.5 Levelling the lifting/tipping device (optional)
The trolley hoist of the lifting/tipping device is set at the factory with the
feet of the machine screwed in and on a level oor (outlet height 1,000
mm). If the feet of the machine are screwed out to adjust height or level
the machine in the horizontal plane, the stop parts on the lifting/tipping
device will have to be reset to obtain the correct height for the trolley.
Adjust the lifting/tipping device as follows:
• Make the machine absolutely level using the adjustable feet.
Section 3.2
• Undo the four mounting bolts for the stop bar (1) of the trolley hoist
and push the bar right in.

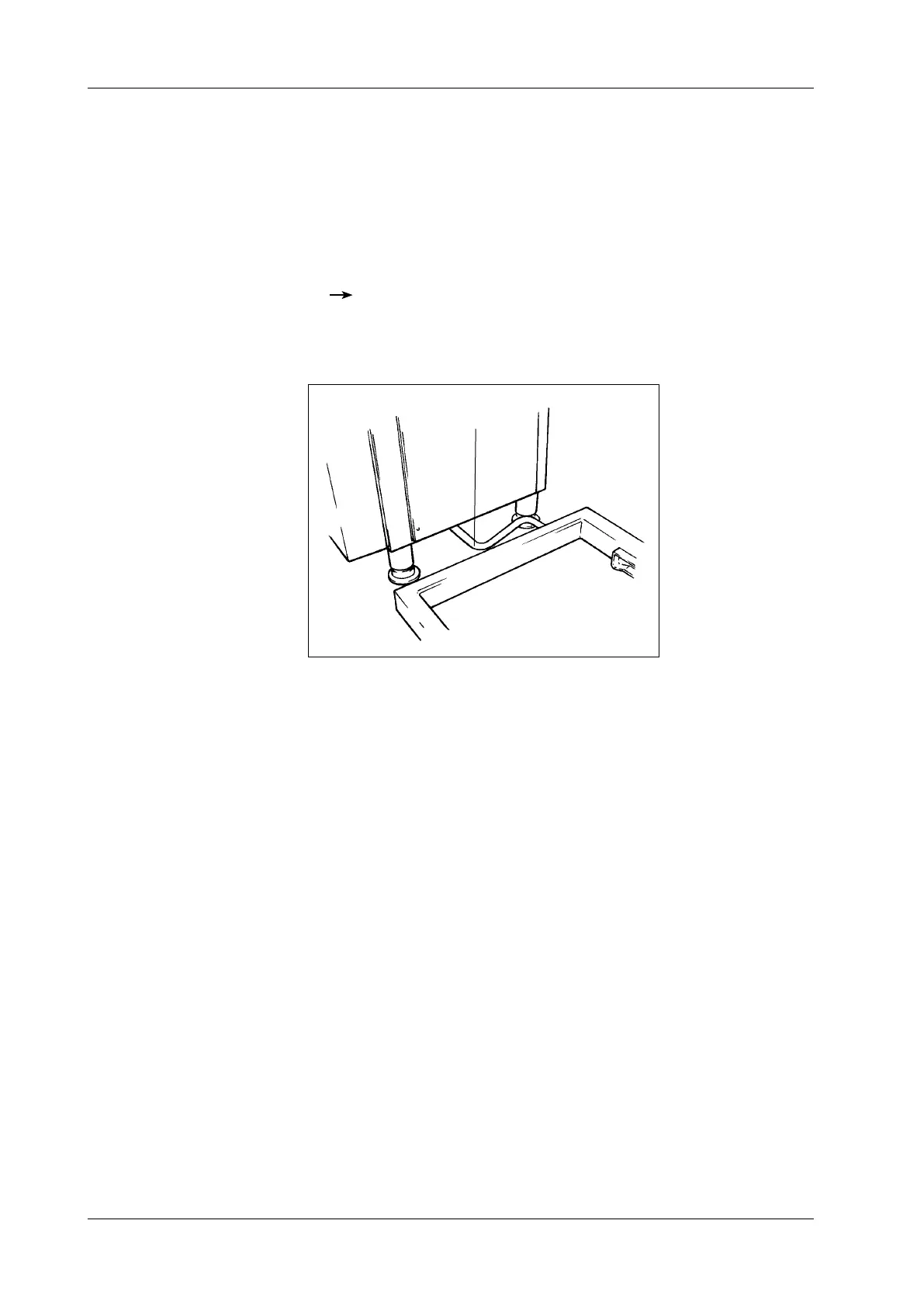

1 Stop bar
Fig. 3-7
Stop
1
• Switch on the machine and move the arm of the lifting/tipping device
to the vertical end position using the UP key.
