ROBOT HP7E / HP10E / HP12E / HP15E / HP20E4. Setting up
4-6 © VEMAG 2010

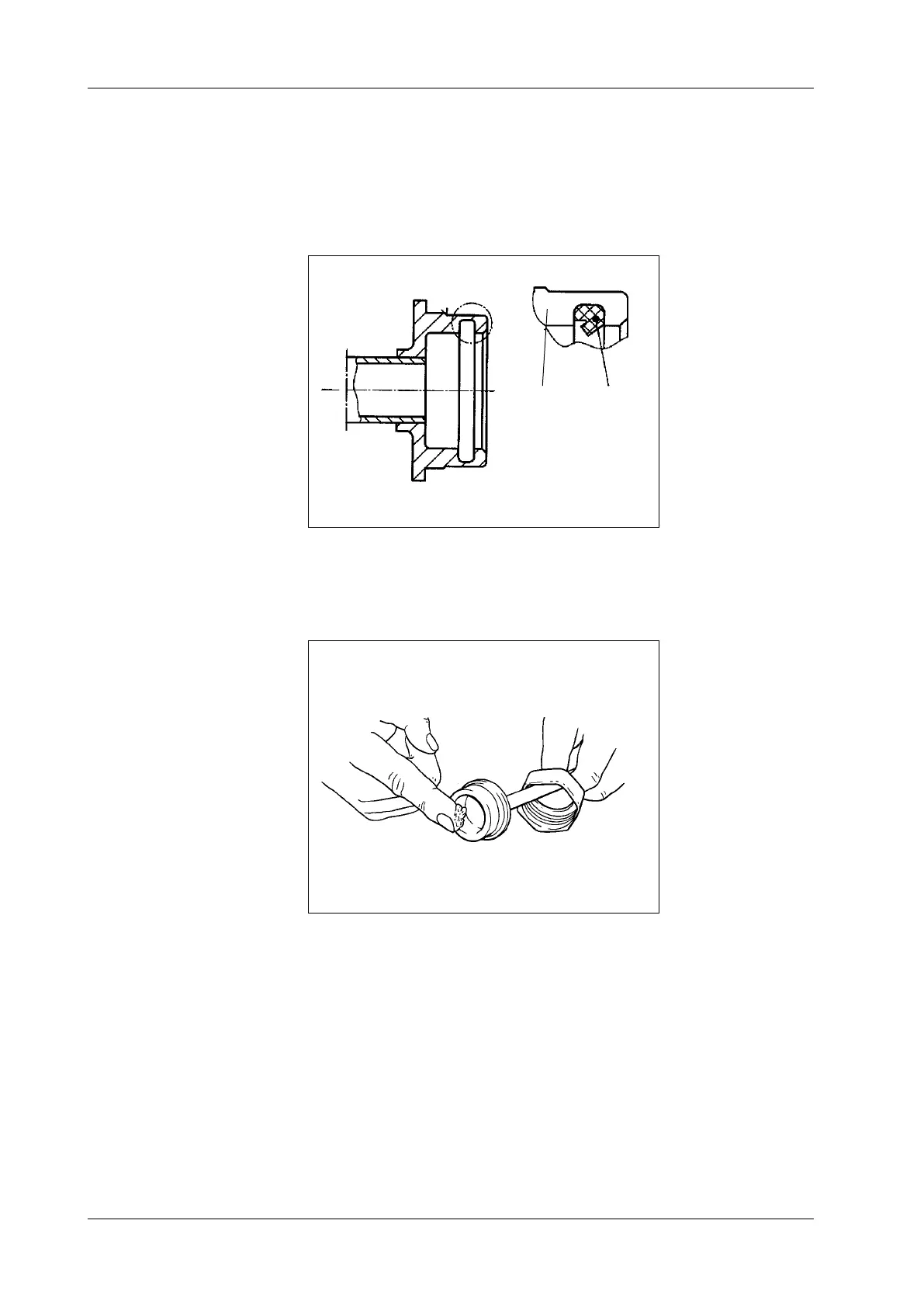

4.6 Fitting the linking horn (optional)
• Use a linking horn with the largest possible diameter and shortest
possible length related to the size of the casing.
• Fit lip seal (1) in linking horn (2) so that the lug of the lip seal is poin-
ting forwards.
1 Lip seal
2 Linking horn
Fig. 4-10
Fitting the lip seal
1
2
• Grease the seal of the linking horn before tting it to prevent friction
problems.
Fig. 4-11
Greasing the linking horn
