ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 8. Maintenance
8-13© VEMAG 2010
8.7 Monthly maintenance
8.7.1 Double screw drive (oil level and seals)
The oil expansion reservoir of the double screw drive and its cover are
attached in a bracket and connected to the double screw drive by a hose.
The oil should come up at least to the marking on the reservoir.
• Open the service hatch on the right-hand side.
• Check the oil level of the double screw drive at the expansion reser-
voir (1) and replenish with oil if necessary.
• To do so, unscrew the cover (2) of the expansion reservoir, holding the
reservoir steady in the other hand, and take it out of its bracket. You
must hold the reservoir upright so that no oil escapes. The connecting
hose to the double screw drive is long enough to enable lling to take
place outside the machine housing.
• After replenishing the oil, replace the expansion reservoir in its bracket
and check lling level.
• Check whether oil is present in coiled relief hose for the seals of the
double screw drive shafts. If this should be the case, the seals of the
double screw drive must be replaced, otherwise there is a risk of oil
getting into the double screws.
1 Expansion reservoir
2 Cover

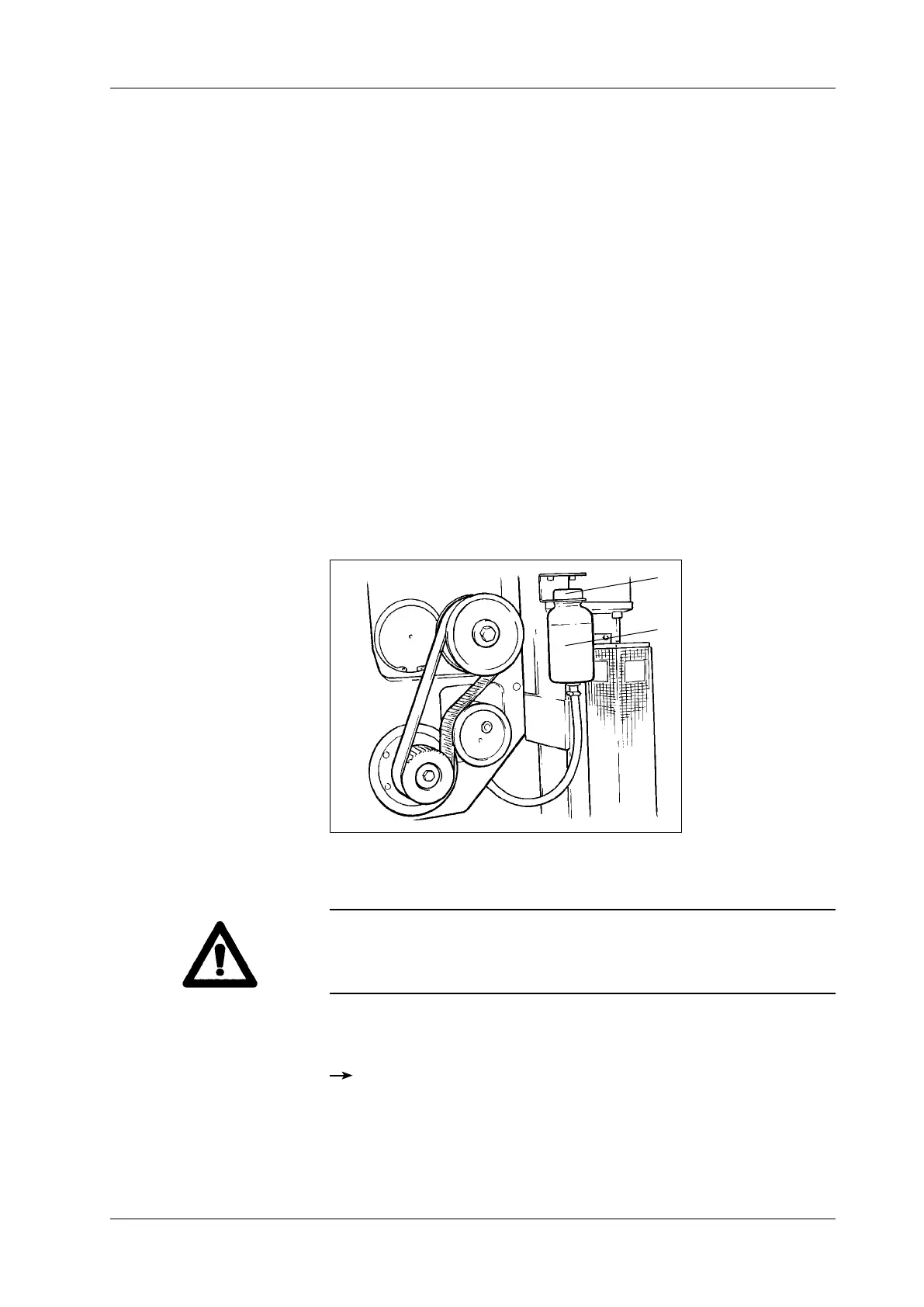

Fig. 8-13
Oil level of double screw
drive
1
2
• Close the service hatch again.
Warning!
Inform VEMAG Customer Service immediately if there is oil in the relief
hose. The seals of the double screw drive must be replaced before pro-
duction is resumed.
8.7.2 Vacuum pump 16 m³ and 40 m³ (optional)
Operating instructions for vacuum pump
