ROBOT HP7E / HP10E / HP12E / HP15E / HP20E7. Cleaning
7-4 © VEMAG 2010
• Twist the spindle in far enough for the extraction device to catch and
pull the double screw housing a little way out of the feed cylinder.

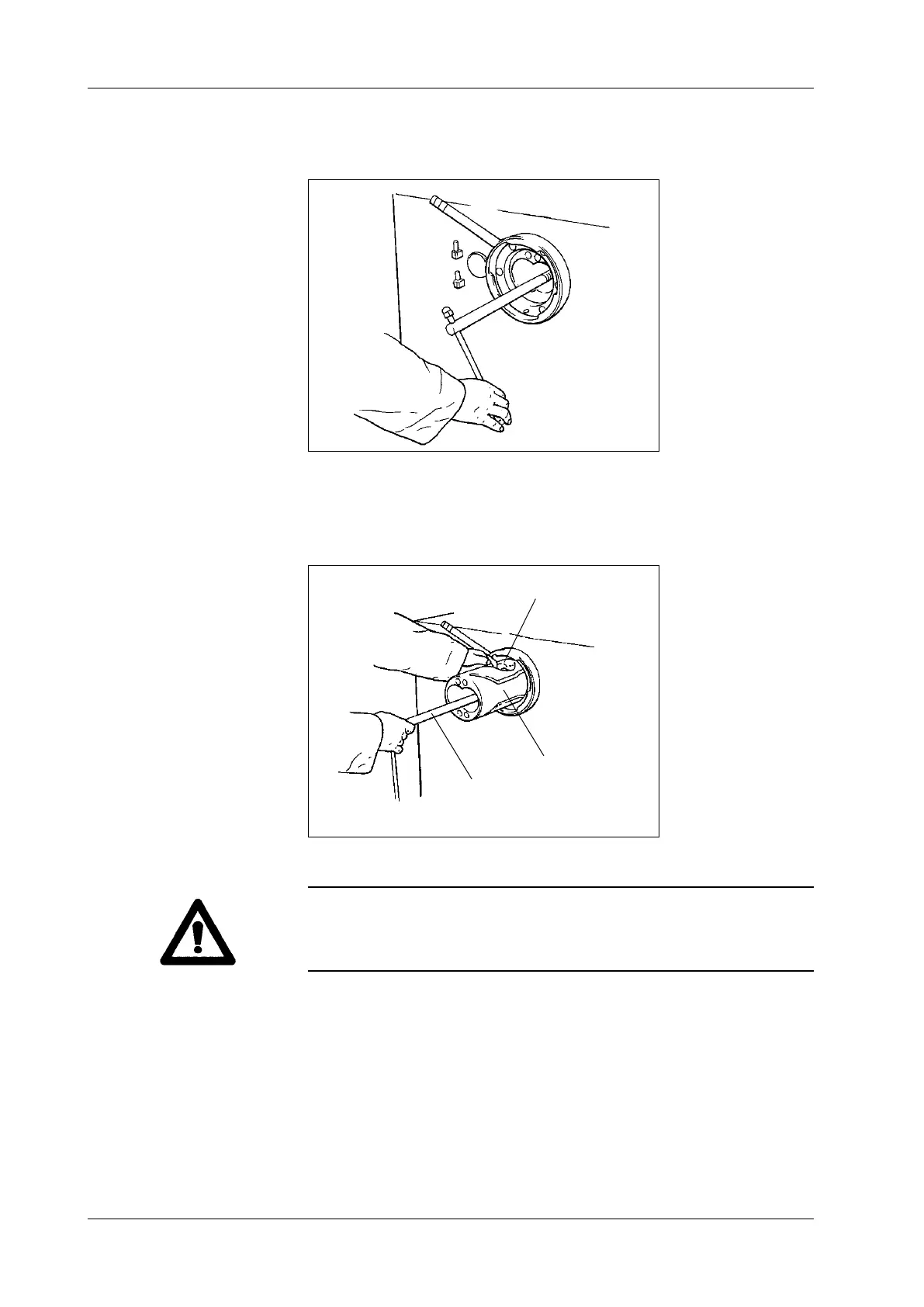

Fig. 7-6
Extraction device catching
• Push down the catch in the inlet bore (1) and pull the extraction device
(2) out of the double screw housing (3).
1 Catch
2 Extraction device
3 Double screw housing
Fig. 7-7
Removing the extraction
device
1
2
3
Warning!
Proceed carefully when removing the extraction device and be sure to
hold the double screw housing/relevant part of the housing steady with
the other hand to avoid dropping it.
