The oil must come up to the top check bore in the transmission housing
of the transmission.
• Remove sealing screw (1) from the top check bore.
• Fill the transmission housing with oil through ller neck (2) up to the
check bore.
1 Sealing screw
2 Filler neck

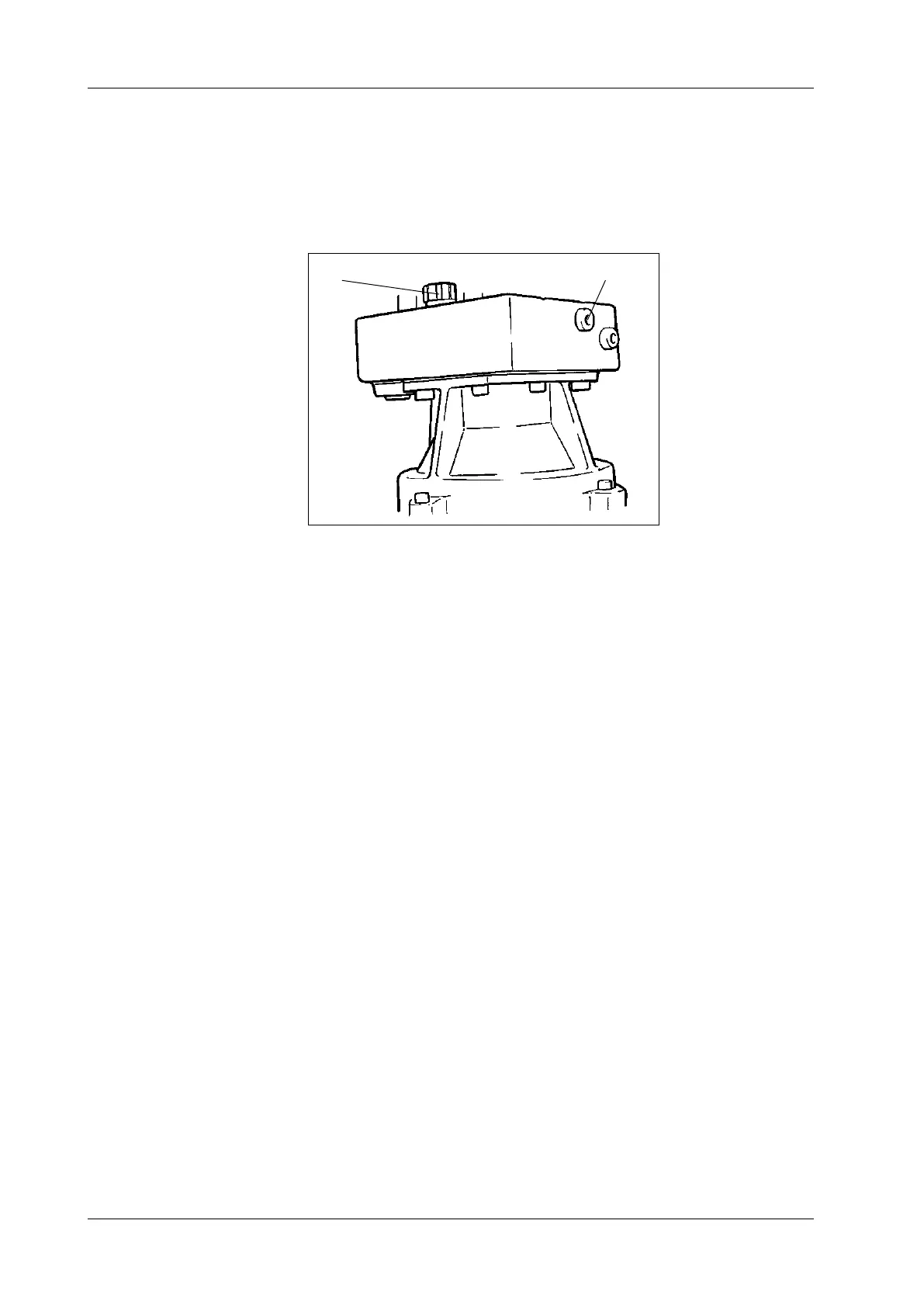

Fig. 8-23
Changing the oil in the
feed drive
1
2
• Screw the sealing screw back up.
• Close the cover and latch the toggle on the rear of the machine.
