ROBOT HP7E / HP10E / HP12E / HP15E / HP20E2. Description
2-6 © VEMAG 2010
DOWN key (optional)
This key lowers the trolley hoist of the lifting/tipping device (optional). The
trolley hoist stops automatically as soon as the trolley is 500 mm abo-
ve the ground. To move it into its bottom end position, the key must be
pressed again and held down until the nal position is reached.
Vacuum display
The vacuum set by the vacuum control valve can be read off in per cent
(0 - 100 %) at the vacuum display.
Vacuum control valve
The desired vacuum for evacuating the product can be set using the va-
cuum control valve. Turning clockwise (+) increases the vacuum, turning
anti-clockwise (-) reduces the vacuum.
A second set of buttons for operating the lifting and tipping device (optio-
nal) is located on the right-hand side of the front door.

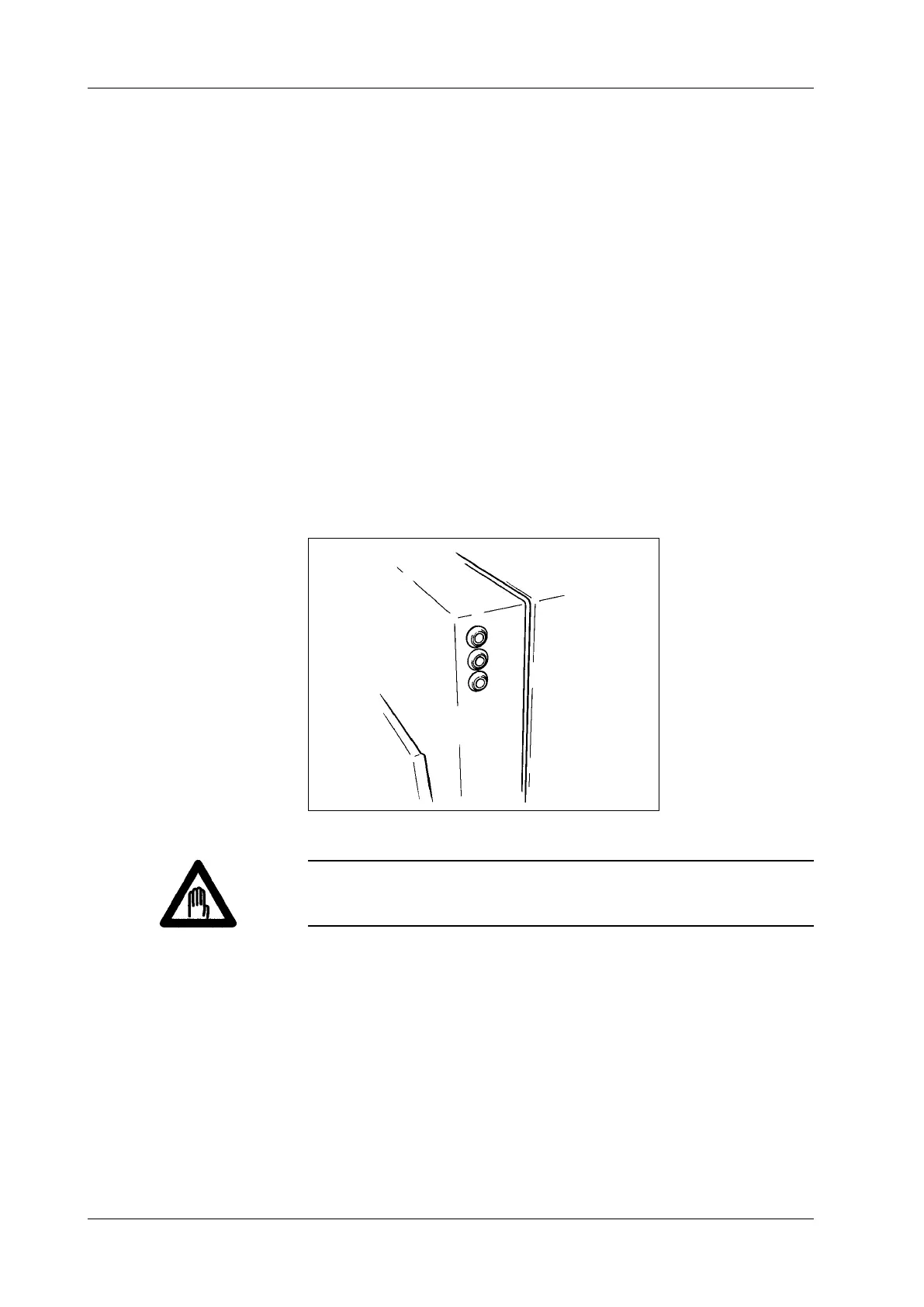

Fig. 2-9
Buttons for lifting and
tipping device (optional)
Danger!
When lowering the lifting/tipping device (optional), ensure that there is no-
one in this area. Do not deposit any objects in this area.
