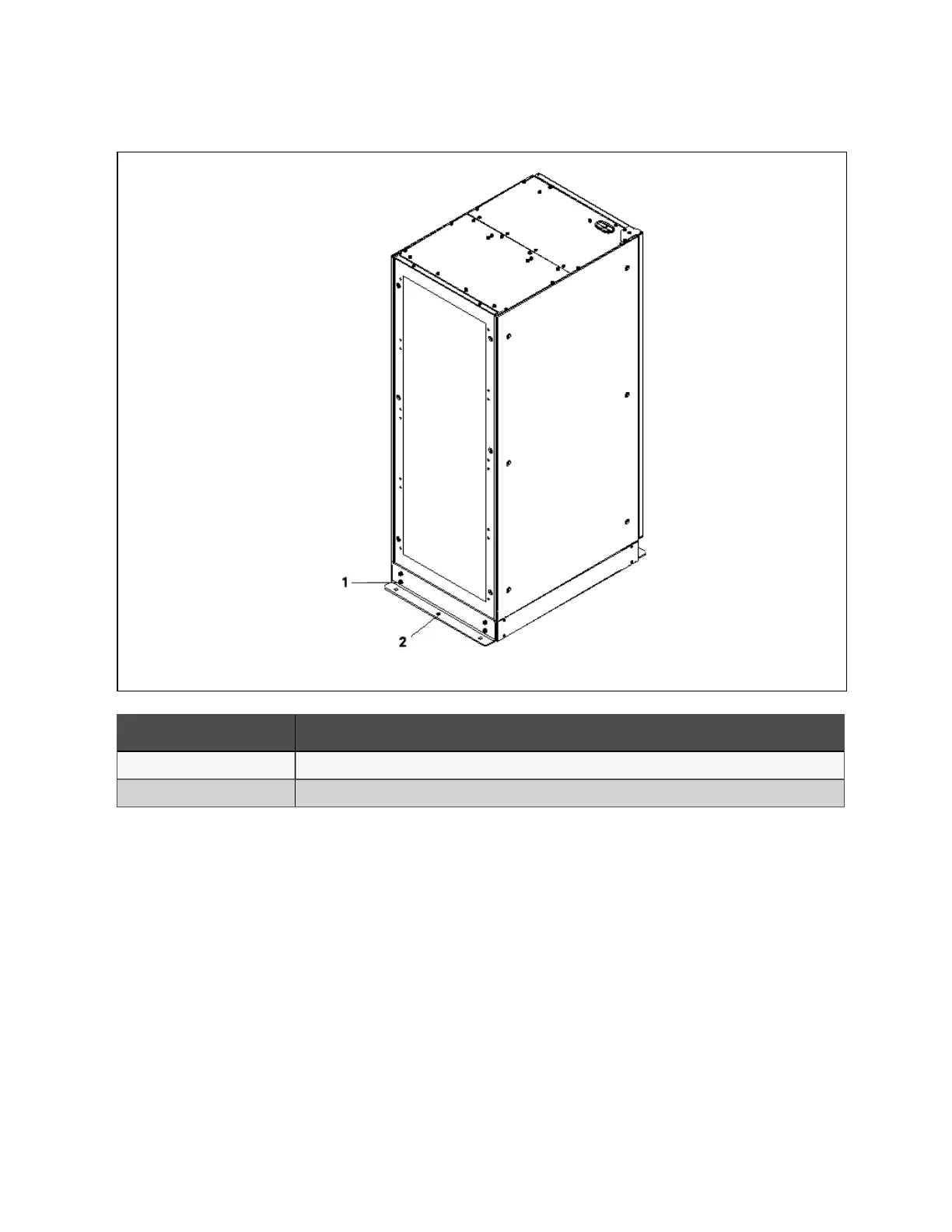

Figure 9.5 Installing seism ic anchor (rear installation)
N o. De scription
1 4-M8x25 tapping screw
2 Installing M12 expansion bolt (3 PCS)
2. Use M8 × 25 tapping screws (4 pcs) to install seismic anchor on the front bottom of the UPS cabinet, and use
M12 expansion bolts (3 pcs) to fix seismic anchor on the ground, as shown in Figure 9.6 on the facing page.
