5.4.2 Viewing UPS Data with the Status Panel
More detailed information about the UPS’s status is readily available through the Status panel. Touching a component in the
animated mimic display brings up data about the component on another panel. Clicking a parameter icon on the UNIT
STATUS panel brings up further details about that parameter.
The same data can be viewed by switching to the text view. The length of the lists and order of the details may require
scrolling to find the desired data.
N O T E: A param eter m ust be visible on the grap hic view of the U N IT STA TU S screen for details to b e
view ed, even in the text view .

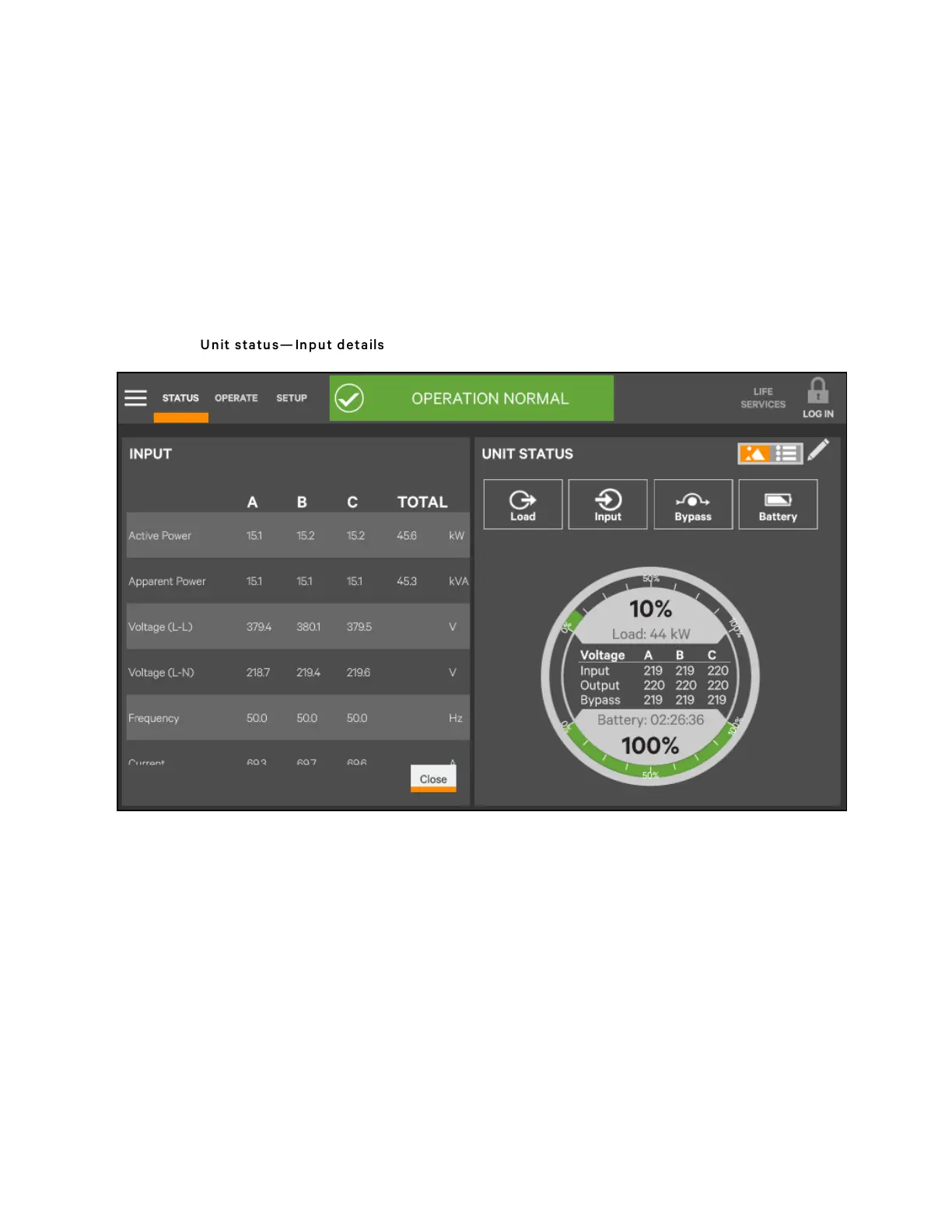

Figure 5.25 Un it status— Input d etails
5 Operator Control and Display Panel
75
Vertiv™ Liebert® APM Plus User Manual
