5.4.3 Logs—Alarms and Events
The Context Menu, when opened from the STATUS panel, permits viewing logs of alarms and events that have occurred on
the UPS. Both logs include the date and time of occurrence, type, an ID, component affected, and a description of the alarm or
event. The information is available to the Observers, those without a log in password.
To view the alarms or events:

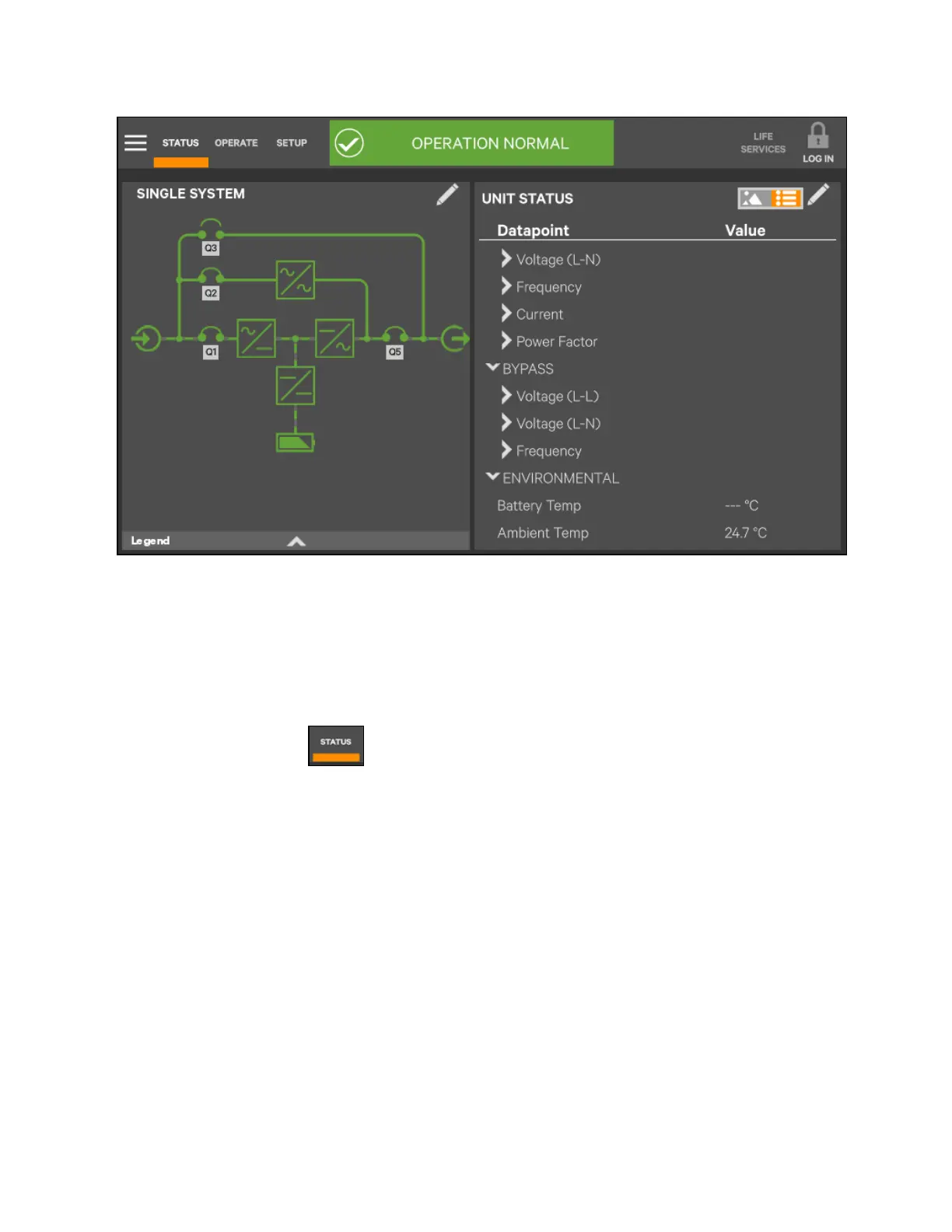

1. Navigate to the STATUS panel , if required.
2. Touch the Context Menu icon.
3. Touch the log to view, alarms, or events; refer to Figure 5.30 on the next page.
Touching Alarms immediately opens the list of alarms; touching Logs requires touching the UPS Event Log screen.
5 Operator Control and Display Panel
80
Vertiv™ Liebert® APM Plus User Manual
