Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
13

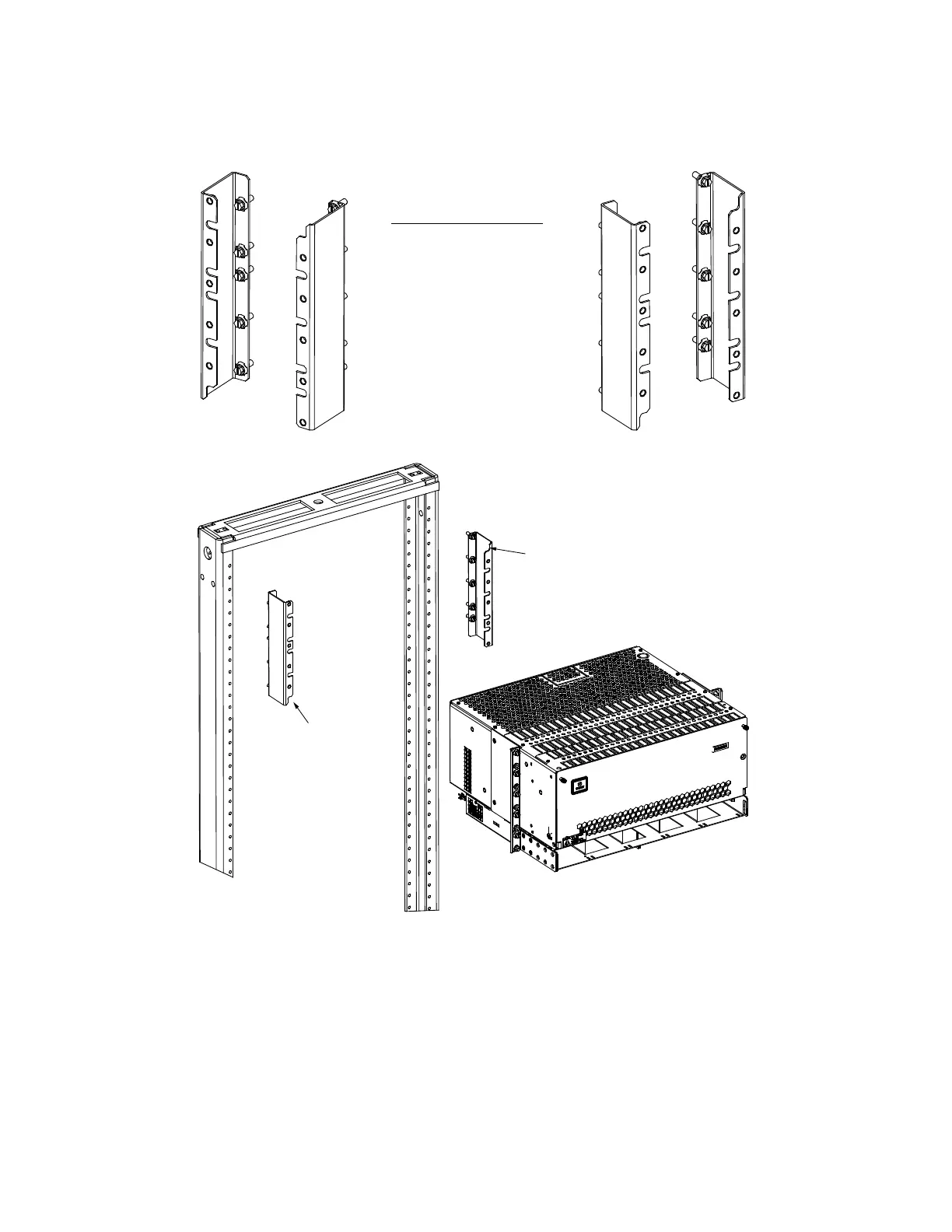

Figure 3.6 Mounting a System with a 1-Row Distribution Cabinet and a Single Module Mounting Assembly using Kit P/N
564300
P/N 564298
582137100 System Consisting of
a 1-Row Distribution Cabinet and
a 588705300 Rectifier Shelf
P/N 564299
Orient with Notch
Located at Top
Orient with Notch
Located at Bottom
P/N 564298
Left Side Bracket
Identification and
Orientation View
P/N 564298
Left Side Bracket
Identification and
Orientation View
P/N 564299
Right Side Bracket
Identification and
Orientation View
P/N 564299
Right Side Bracket
Identification and
Orientation View
MOUNTING HARDWARE
12-24 x 3/4" Thread Forming
Hex Head Screw
No. 10/12 Ground Washer
Torque: 65 in-lbs.
