Manual VIPA CPU 21x Chapter 5 Deployment CPU 21x-2BT02 with H1 / TCP/IP
HB103E - Rev. 05/45 5-33
The frequency with which a SEND job is issued, depends on the time that
was configured for the FC1 call. This timer is programmed for 1000ms in
this example. For this the sample program initiates the SEND job at a rate
of once every 1000ms.
Data word DW0 in data block DB11 is incremented ahead of every SEND
call that actually transmits a message. This occurs in function block FC1.
Altogether 16Byte of data are transferred. The partner receives the infor-
mation and stores it in DB12.
Together with DB0 there is still 15Byte space for user data.

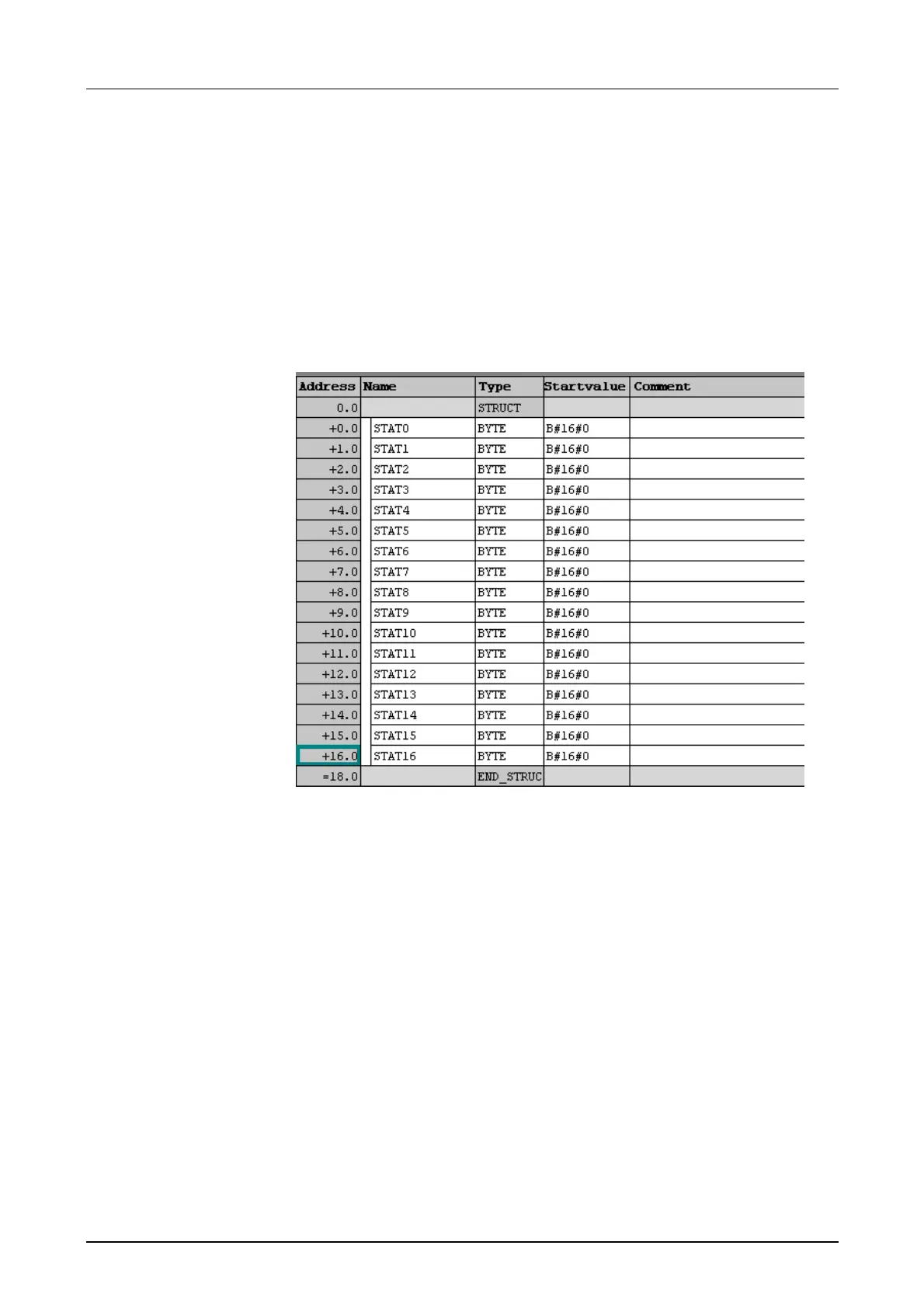

DB11 and DB12 are identical in design:
The data transfer is realized via MPI. If your programming device has no
MP-interface, you may also use the "Green Cable" (VIPA 950-0KB00) from
VIPA.
The "Green Cable" may only be used at the VIPA CPUs of the Systems
100V, 200V, 300V and 500V!
Please regard the notes about the "Green Cable" in chapter 1!
• Connect your PG with the CPU
• With PLC > Load to module in your configuration tool you transfer your
project into the CPU.
• Insert a Multi Media Card (MMC) into the according CPU-slot and
transfer your application via PLC > Copy RAM to ROM.
• During the writing process the MC-LED on the CPU is blinking. Due to
the system the dialog message of the successful writing process
appears a little bit too soon. This process is not ready before the LED on
the CPU is extinguished.
• Switch both CPUs to RUN.
Data blocks
DB11, DB12
Transfer project
