Commissioning and Start-up behavior
• Turn off your power supply
• Build up your system
• Cable your system
• Plug in your MMC with CPU program and Profibus project
• Turn on your power supply
• For transferring your project from the MMC into the CPU, request an
OVERALL_RESET
Turn on the power supply. The course of events, described under "start-up
behavior", is following.

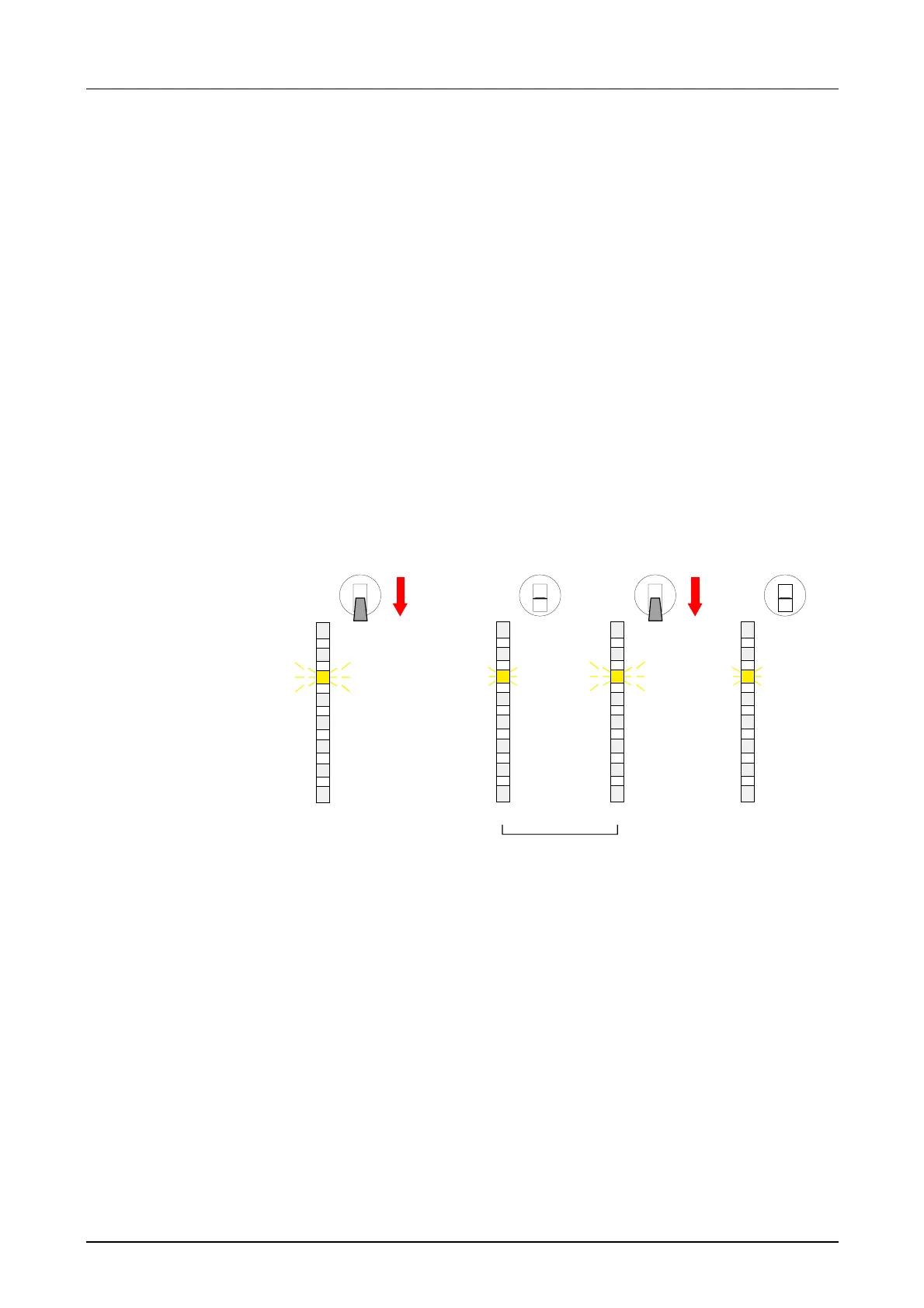

The following picture shows the approach once more:
3 Sec.
R
S
PW
SF
FC
MC
RN
ST
MR
3Sec.
RN
ST
MR
RN
ST
MR
RN
ST
MR
R
S
PW
SF
FC
MC
R
S
PW
SF
FC
MC
R
S
PW
SF
FC
MC
When the CPU is delivered it has been reset.
After a STOP → RUN transition the CPU switches to RUN without
program.
After NETZ_EIN (power on), the DP master tries to get parameters from
the CPU.
For the master doesn't get valid parameters from the CPU, it starts with
default parameters (Addr.:1, 1.5MBit) from its ROM and shows this via the
"IF"-LED.
Check list for
commissioning
Turn on
power supply
OVERALL_RESET
Default boot
procedure, as
delivered
