Manual VIPA CPU 21x Chapter 3 Deployment CPU 21x

HB103E - Rev. 05/45 3-9

Configuration of the CPU parameters

Except of the Profibus parameters of the CPU 21xDP the CPU

parameterization takes place in the parameter dialog of the CPU 315-

2DP. The parameterization of the Profibus section of the CPU 21xDP takes

place via the parameterization dialog of the CPU 21xDP.

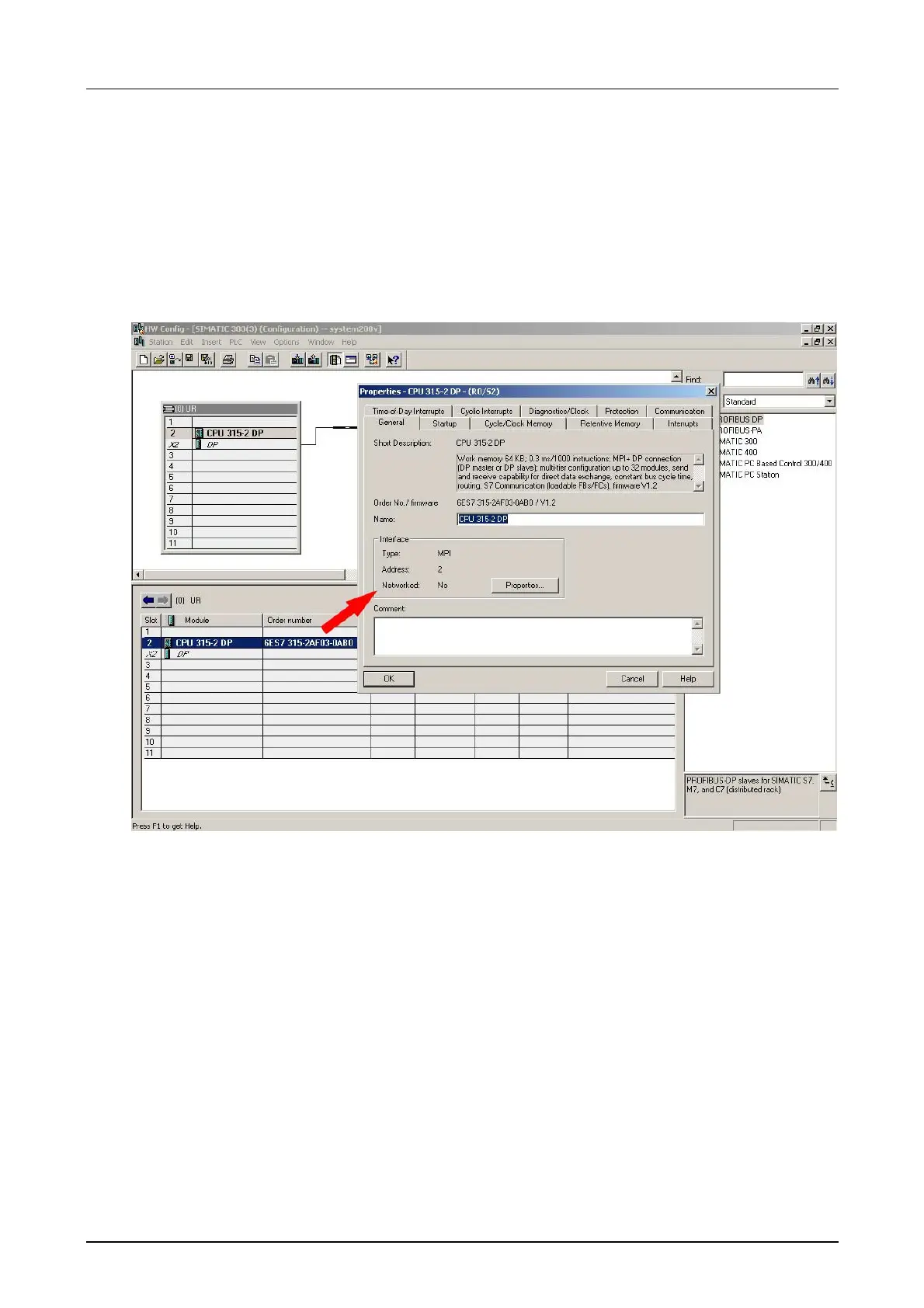

Per double-click on the CPU 315-2DP you reach the parameterization win-

dow of your CPU 21x. Via the different registers you may access all

parameters of the CPU 315-2DP. The parameters are those of the

CPU 21x from VIPA.

Please regard, that at this time not all the parameters are supported.

Outline

Parameterization

CPU 21x under

CPU 315-2DP
