Chapter 3 Deployment CPU 21x Manual VIPA CPU 21x
3-8 HB103E - Rev. 05/45
System 200V modules may be supplied with up to 16Byte of configuration
data from the CPU. The use of the Siemens SIMATIC Manager provide the
option to supply parameters to the configurable System 200V modules at
any time.
For this purpose you have to double-click the respective module in the
plug-in diagram.

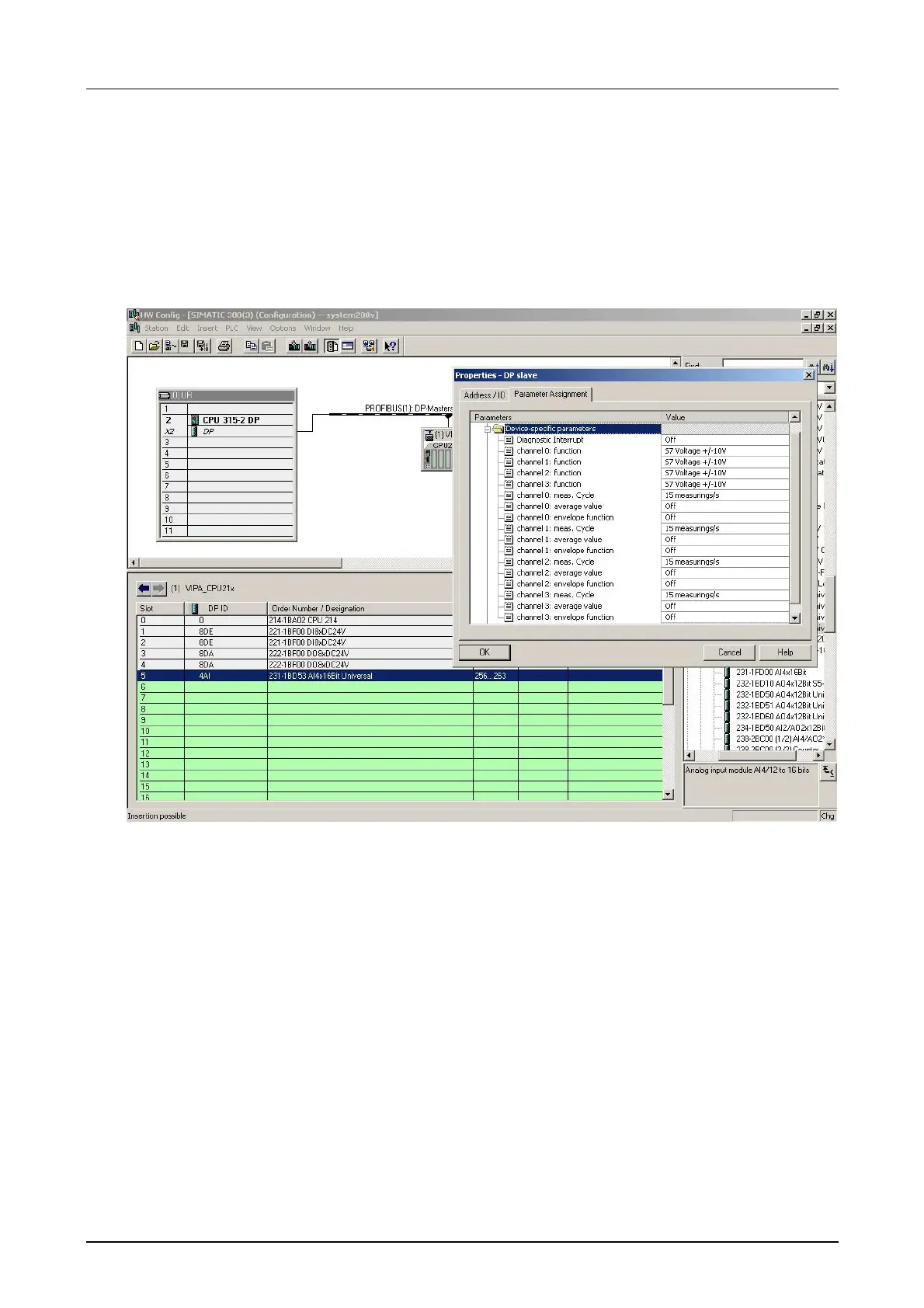

The following figure shows the configuration of a analog input module:
Data is transferred between the CPU and the PC via MPI. If your PG has
no MPI functionality you may use the VIPA "Green Cable" to send the data
serial by a peer-to-peer connection. The VIPA "Green Cable" has the
OrderNo. VIPA 950-0KB00 and may only be used at MP
2
I interfaces of
VIPA CPUs!
Please regard the notes about the "Green Cable" in chapter 1!
• Connect your PG to the CPU
• Transfer the project into the CPU by means of PLC > Load into module
in your project configuration tool.
• Install an MMC and transfer the application program to the MMC by
clicking on PLC > Copy RAM to ROM.
• During the write operation the "MC"-LED of the CPU blinks. For internal
reasons the message signalizing completion of the write operation
arrives too soon. The write operation is only complete when the LED
gets off.
Parameterization
System 200V
modules
Transferring the
project
