Manual VIPA CPU 21x Chapter 7 Deployment of the CPU 21xDP
HB103E - Rev. 05/45 7-11
To include the CPU 21xDP into a leading master system, the GSD-file
vipa04d5.gsd included in the package is required.
• Start your configuration program and configure the Profibus-DP master
that will be the leader of your CPU 21xDP.
• Add a DP slave of the station type "CPU2xxDP". This is to find in the
hardware catalog under Profibus-DP > Additional field devices > I/O >
VIPA > VIPA_CPU2xxDP.
• Assign the Profibus address to the DP slave that you’ve parameterized
at the slave.
• For the Profibus communication, create the same I/O range that you’ve
parameterized at the slave in form of "modules". Please regard that a
slave output area relates to a master input area and vice versa.
• Save your project and transfer it into the CPU of your master system.

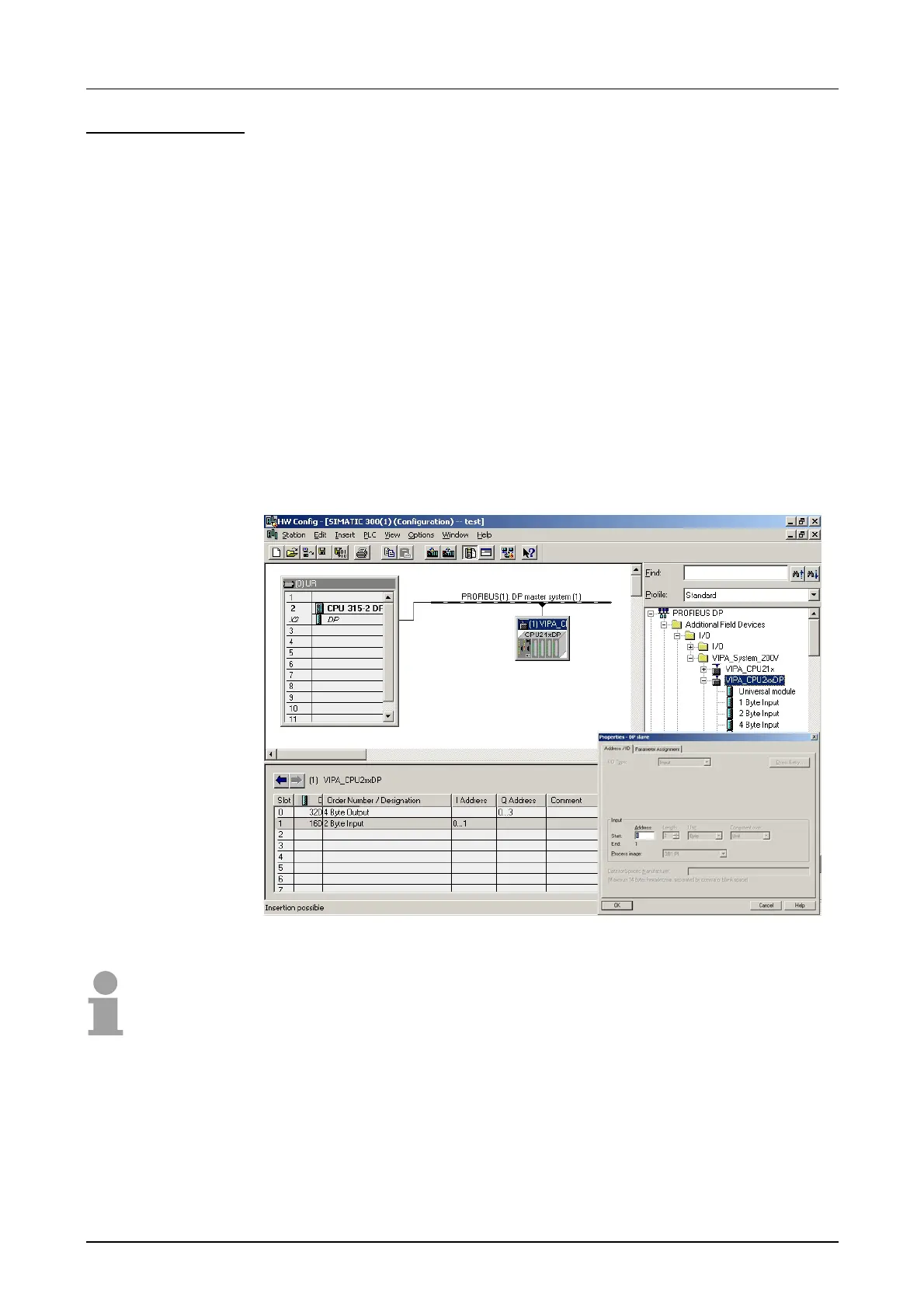

In the following the relevant dialog windows for the master configuration
are shown:
Note!
If your DP master system is a System 200V module from VIPA, you may
parameterize the directly plugged-in modules by including a "DP200V"
slave system.
To enable the VIPA CPU to recognize the project as central system, you
have to assign the Profibus address 1 to your slave system!
Please take care at deployment of the IM 208 Profibus-DP master that
this has a firmware version v3.0 or higher; otherwise this may not be
used at a CPU 21x with a firmware version v3.0 or higher. The
firmware versions are on a label at the backside of the modules.
Configuration in
the leading
DP master
