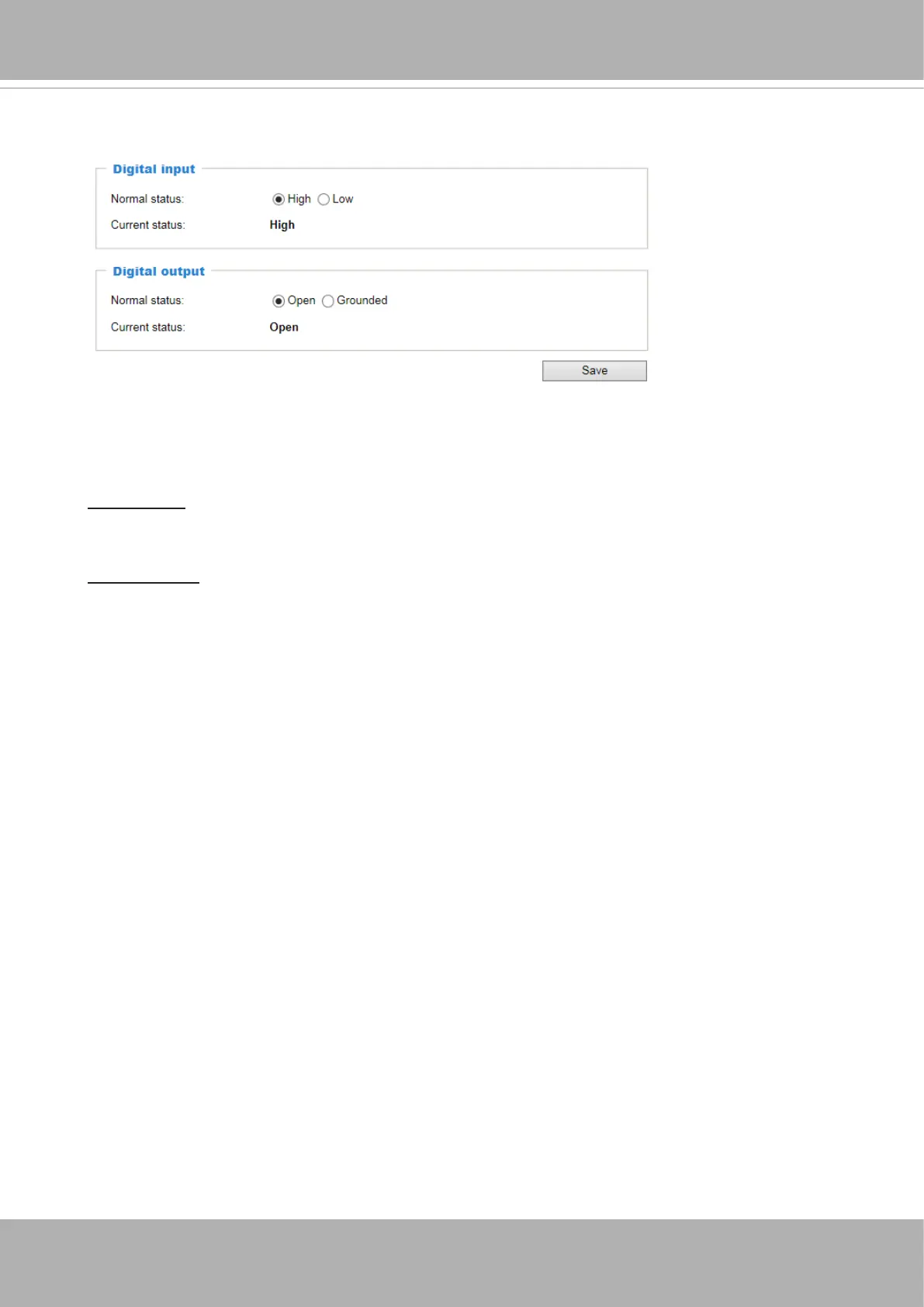

3-9. DI and DO
Connect DI or DO devices to the camera's terminal block, the camera will automatically
detect the current connection state as pulled-high or pulled-low. You may then dene the
triggering condition.
Digital input: Select High or Low as the state of the signal to dene the "Normal status" for
the digital input. Connect the digital input lines to the Network Camera, and the camera will
report the current status.
Digital output: Select Grounded or Open as the state of the signal to dene the "Normal
status" for the digital output. Connect the digital output lines to the Network Camera, and
the camera will display the current status.

Vivotek SC8131 Specifications

General

Built-in HDD	No
Flash memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Sensor type	CMOS
Optical sensor size	1/3 \
Maximum resolution	2560 x 960 pixels
Video formats supported	H.264, M-JPEG
Power consumption	300 mA
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	12.95 W
Type	IP security camera
Certification	CE, LVD, FCC B, VCCI, C-Tick, UL
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Form factor	-
Mounting type	Ceiling
Product color	White
LED indicators	Power, Status
Networking standards	IEEE 802.3af
Number of cameras	1
Operating temperature (T-T)	-10 - 40 °C
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Intelligent Video Surveillance (IVS) system features	People counting
Minimum illumination	- lx

Weight and Dimensions

Depth	160 mm
Width	70 mm
Height	38 mm
Weight	396 g
