Vivotek SC8131 User Manual

VIVOTEK
172 - User's Manual
Network > DDNS
This section explains how to congure the dynamic domain name service for the Network
Camera. DDNS is a service that allows your Network Camera, especially when assigned
with a dynamic IP address, to have a xed host and domain name.
Express link
Express Link is a free service provided by VIVOTEK server, which allows users to register
a domain name for a network device. One URL can only be mapped to one MAC address.
This service will examine if the host name is valid and automatically open a port on your
router. If using DDNS, the user has to manually congure UPnP port forwarding. Express
Link is more convenient and easier to set up.

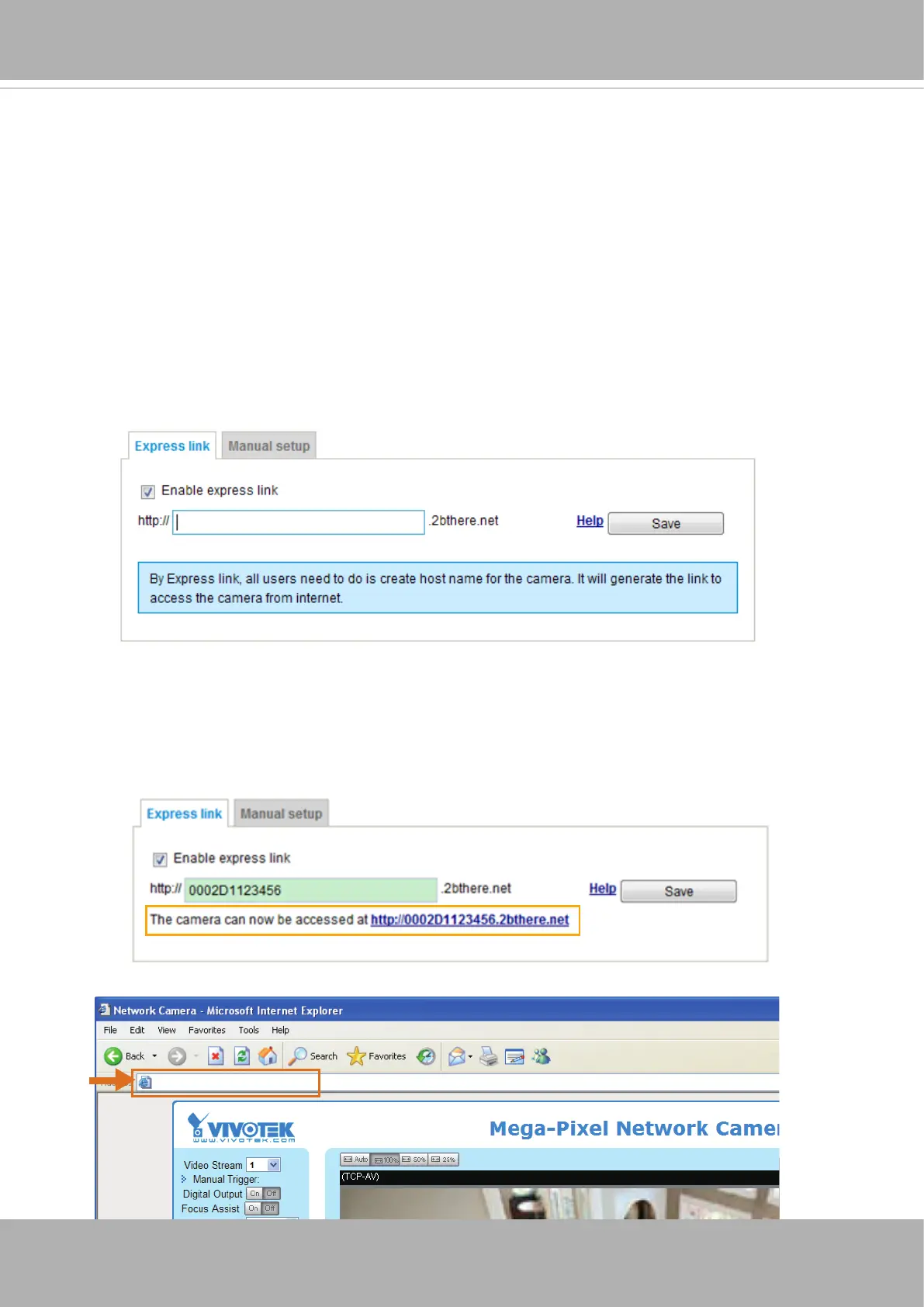

Please follow the steps below to enable Express Link:
1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check
Enable express link
.
3. Enter a host name for the network device and click
Save
. If the host name has been used by
another device, a warning message will show up. If the host name is valid, it will display a
message as shown below.
https://0002D1123456.2bthere.net
2010/12/10 17:08:56

Vivotek SC8131 Specifications

General

Built-in HDD	No
Flash memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Sensor type	CMOS
Optical sensor size	1/3 \
Maximum resolution	2560 x 960 pixels
Video formats supported	H.264, M-JPEG
Power consumption	300 mA
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	12.95 W
Type	IP security camera
Certification	CE, LVD, FCC B, VCCI, C-Tick, UL
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Form factor	-
Mounting type	Ceiling
Product color	White
LED indicators	Power, Status
Networking standards	IEEE 802.3af
Number of cameras	1
Operating temperature (T-T)	-10 - 40 °C
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Intelligent Video Surveillance (IVS) system features	People counting
Minimum illumination	- lx

Weight and Dimensions

Depth	160 mm
Width	70 mm
Height	38 mm
Weight	396 g
