Installation Option C: Mounting to the Single Gang Box

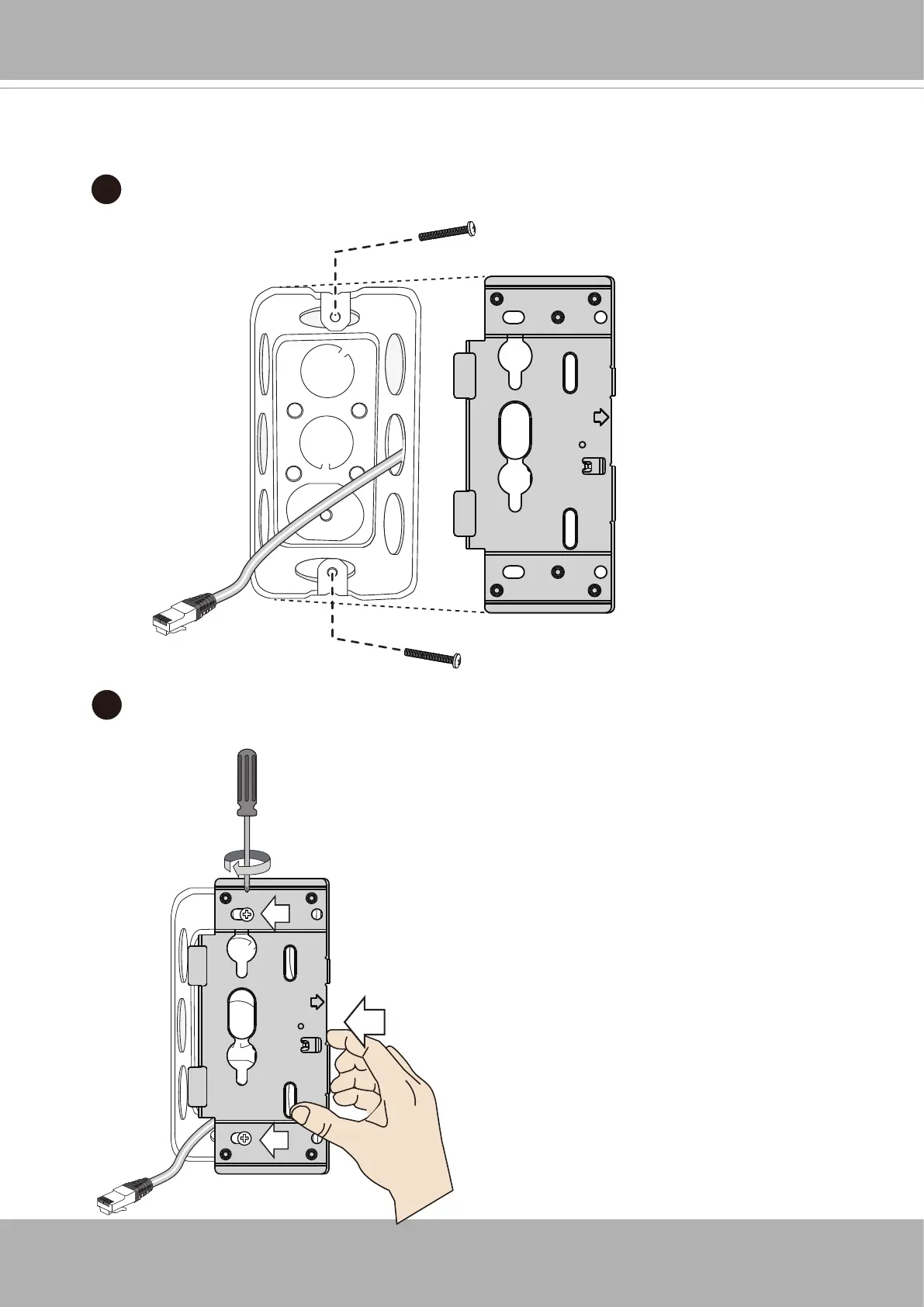

C1
C1. You can also install the mounting bracket to a 4"x2" single gang box.
C2
See Step
A5
for the rest of the installation procedure.
C2. When installing the bracket, press the bracket toward the center of the box so
that the bracket can rest rmly on the surface of the box.
