VIVOTEK
User's Manual - 23

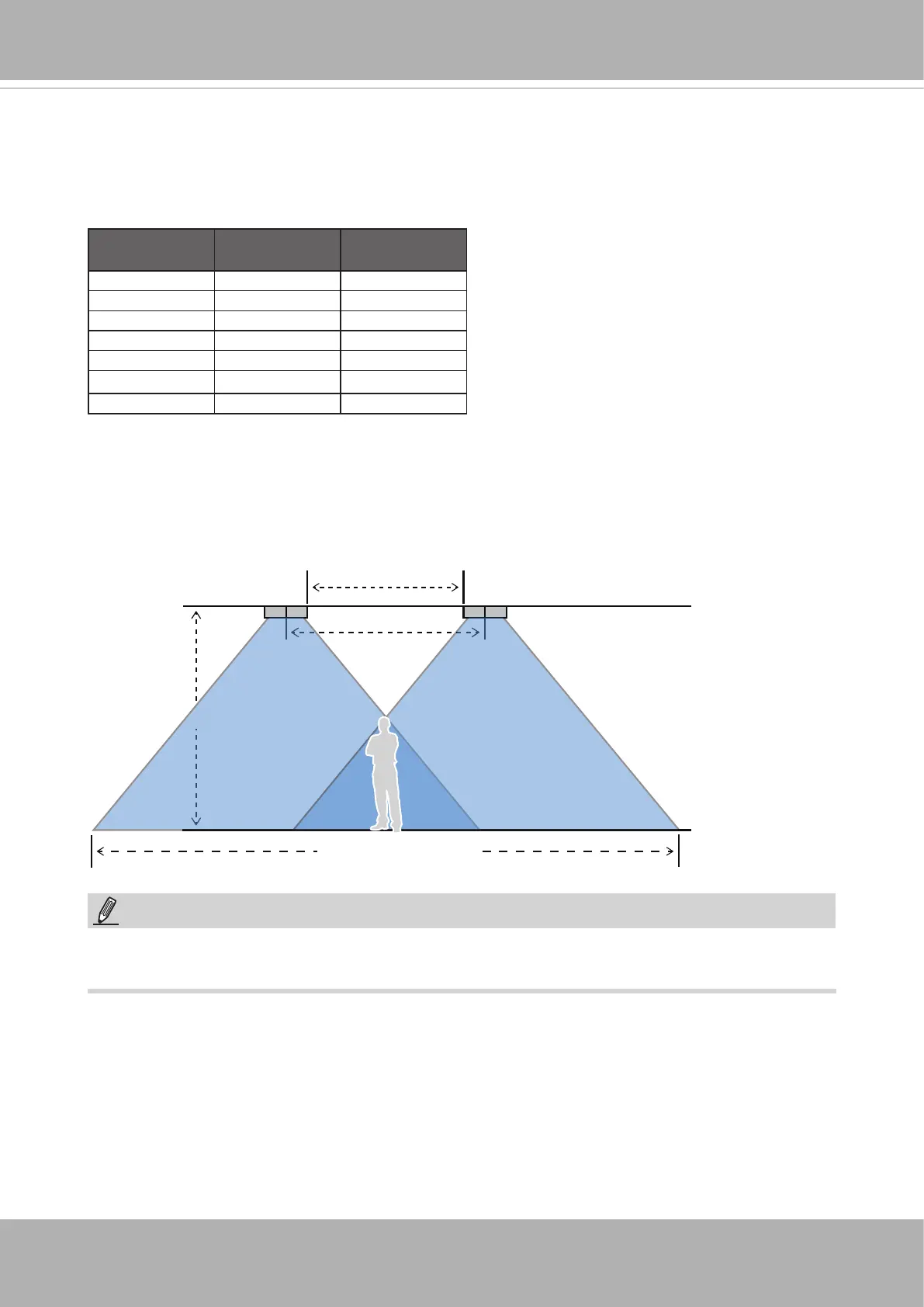

293cm
278cm
Combined HFOV
300cm
• The cameras here are shown on their long side.
• The FOV is the camera's "detecting area."
7. Once the Stitching conguration is done, the positioning order of peer cameras will be
xed, and you cannot change their Stitching order unless you unstitch them.
9. The tracked objects will appear on the live view of a stitched conguration after a
3-seconds delay, due to the network transfer and processing time.
10. It is best that all cameras in a Stitching conguration are installed at the same height
and with the same tilt angle (if applied).
NOTE:
Height (cm)* Dist. to the next
camera
Combined HFOV
240 140.2 395.0
260 191.1 522.4
280 242.1 598.9
300 293.1 700.8
320 344.0 802.7
340 395.0 904.7
360 446.0 1006.6
Consider the following when stitching multiple cameras to form a large virtual oor plan:
8. The maximum distance between cameras, when mounted at a height of 300cm, is
278cm (from edge to edge). The FOVs of two cameras must overlap to a certain amount
in order to cover people walking between them. An estimation of a man of 185cm tall is
applied here.
* Unit in centimeter.
