Vodavi Starplus STSe - 24-Button Digital Keyset; Button Diagram

General Description 1-7
Introduction
STARPLUS STSe - Programming & Operations Manual August 2005
24-Button Digital Keyset / Button Diagram
The following illustration and its corresponding table describe the physical features of the
Vodavi 24-Button Digital Display Telephone (P/N 3515).
Programming Requirement
A 24-button display telephone is necessary when programming the system features and
functions available with the STSe System.

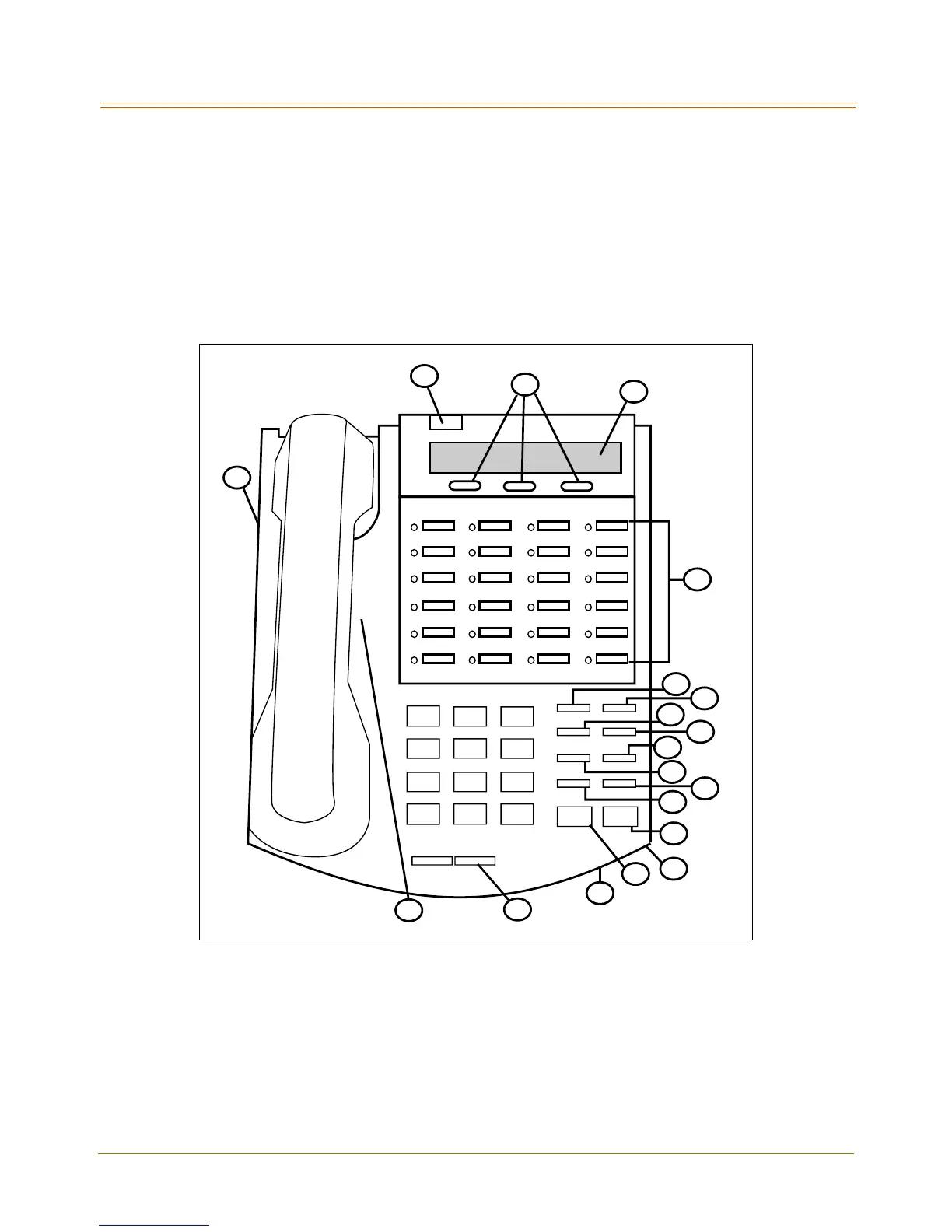

Figure 1-1: 24-Button Digital Key Telephone
