Location and mounting
of the PCU and the HCU
PCU location
Locate the PCU node in the engine room, far from
heat sources and in a dry and accessible place.
HCU location
Alwas locate the HCU node in a dry and accessible
place and close to the helm station it is serving.

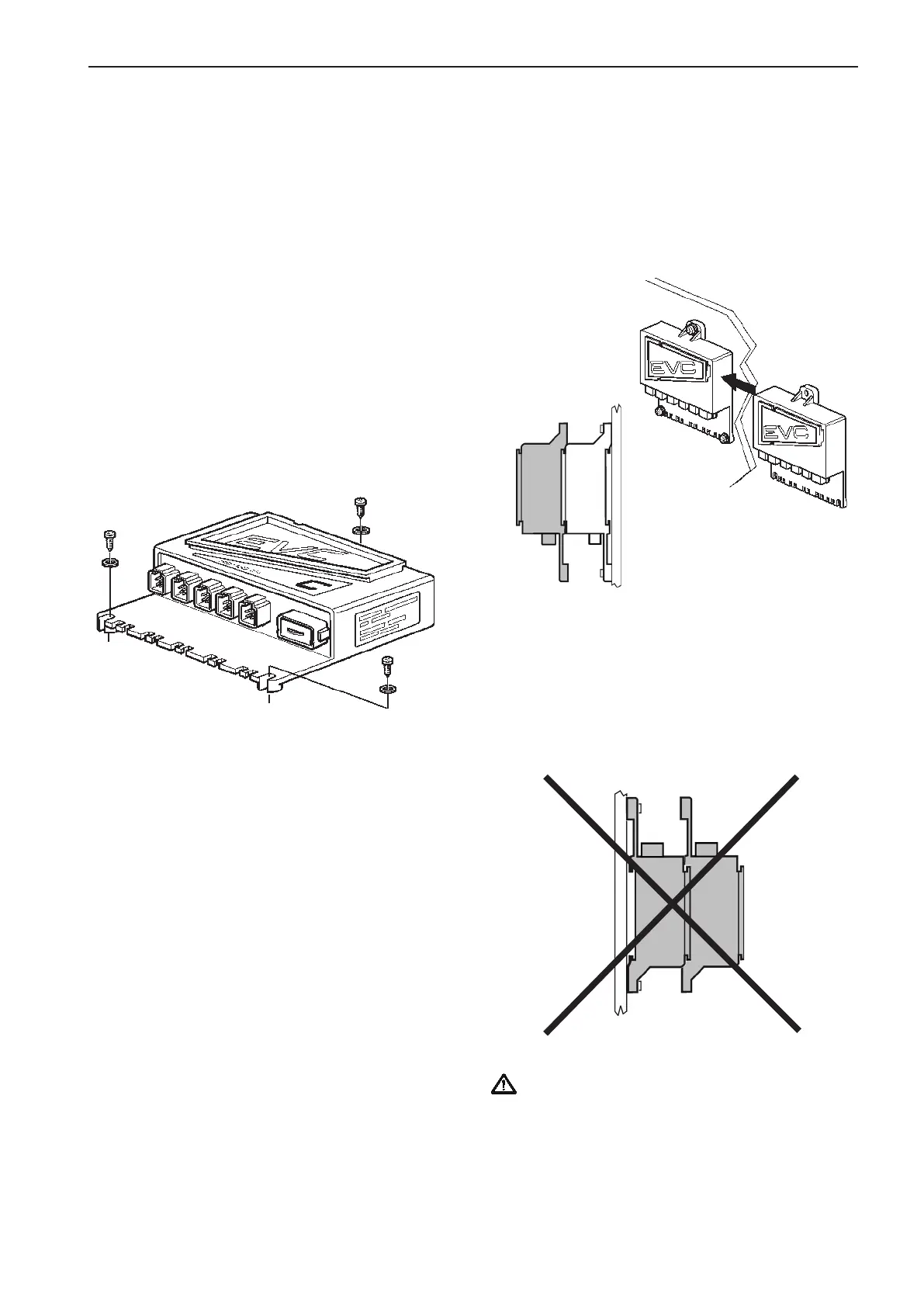

Mounting
The PCU/HCU nodes shall be fitted with three
screws.
Cables shall be lead into the PCU/HCU in a way such
that no water can enter into the units or the cable
harnesses.
The PCUs and HCUs can also be stacked through
slides on top the nodes.
NOTE! Maximum two units are to be stacked.
Installation procedure, engine room
NOTE! The HCUs in a twin installation can be in-
stalled with a maximum distance between them of
approximately 0.8 m (2.6 ft) as the synchronization
cable has a length of 1m (3 ft).
IMPORTANT! Never mount the PCU and HCU
units with the connectors pointing upwards.
