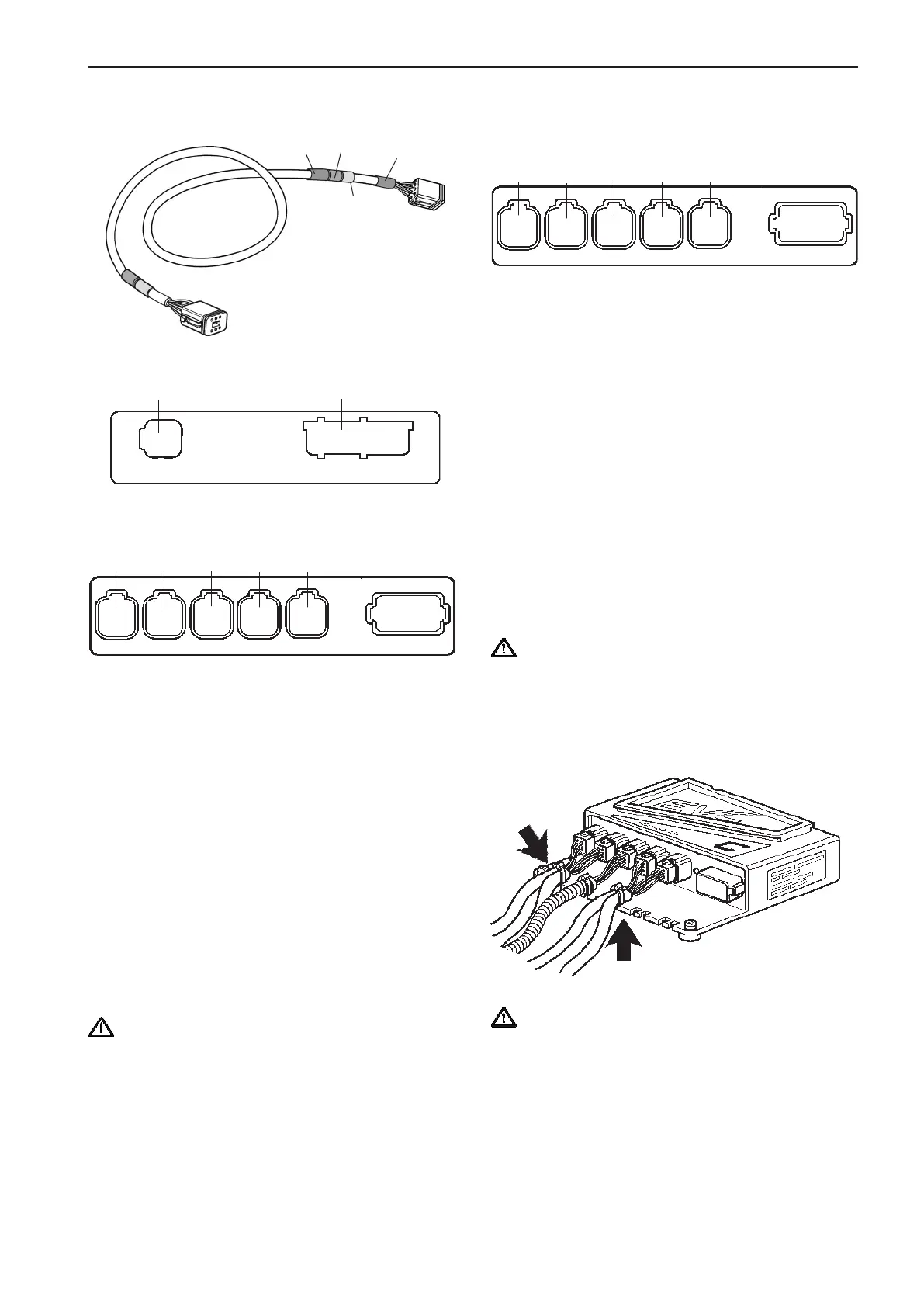

Standard bus cable, PCU–HCU
The standard bus cable connects the PCU to the
helm station(s), HCU, in the system. It is fitted in
the PCU X2:DATALINK connector and the HCU X2:
DATALINK connector, that is, cable connector marked
CONN X2 (green) shall be fitted in the helm unit.
The standard bus cable is available in the following
lengths:
5 m (16 ft), 7 m (23 ft), 9 m (30 ft), 11 m (36 ft), 13 m
(42 ft) with socket connectors (female) at both ends.
NOTE! The cable has female connections on both
ends and cannot be used as an extension.
Extension cables are available in the following
lengths: 1.5 m (5 ft), 3 m (10 ft), 5 (16 ft), 7 m (23 ft),
9 m (30 ft), 11 m (36 ft) and with a pin (male) and a
socket (female) connectors.
IMPORTANT! The red and green marking strips
indicate port and starboard respectively. In a twin
engine installation, only the appropriate color
marking strips should remain on the cable. The
other markings shall be removed.
PCU
HCU
Green
Pink
X2:DATALINK
X3:ENGINE
HCU, installation
HCU label
There is a label on the HCU showing the connectors
with marking and color coding.
X2 Green Data link – EVC bus cable
X3 Pink Auxliliary bus – EVC control panel,
Powertrim panel
X4 Gray Key switch or start/stop panel
X5 Yellow Multilink – Tachometer/instruments,
engine synchronization, EVC system
display, NMEA interface, multisensor
X7 Blue Controls
X8 — Connector plugged and not used
(only for IPS installations named
X:8 STEERING)
IMPORTANT! It is very important to reduce
stress from the cables on the connectors. We
recommend that all cables are fixed to the HCU
with strain reliefs.
Mount strain reliefs as shown in the illustration above.
IMPORTANT! Always make sure that the lock-
ing mechanism between the male and female
connectors closes with a click. This guarantees a
water-tight correct closure.
Part No.
Red
Green
Red
Green
CONN X2
Green
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green YellowPink
Gray Blue
X7:CONTROLS
X8:NOT USED
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green YellowPink
Gray Blue
X7:CONTROLS
X8:NOT USED
47
EVC-C Installation procedure, engine room
