Mechanically shifted
transmission
In an installation with a mechanically operated re-
verse gear or drive, one adapter per engine on each
control station is needed for throttle operation. The
mechanical cable from the shifting control should be
routed to the reverse gear or drive.
Connect the cable marked THROTTLE POT to the
adapter. The EVC system also needs a signal from
a neutral switch which shall be installed on each re-
mote control and connected to the control cable har-
ness marked NEUTRAL SWITCH. The switch shall
be closed in neutral position.

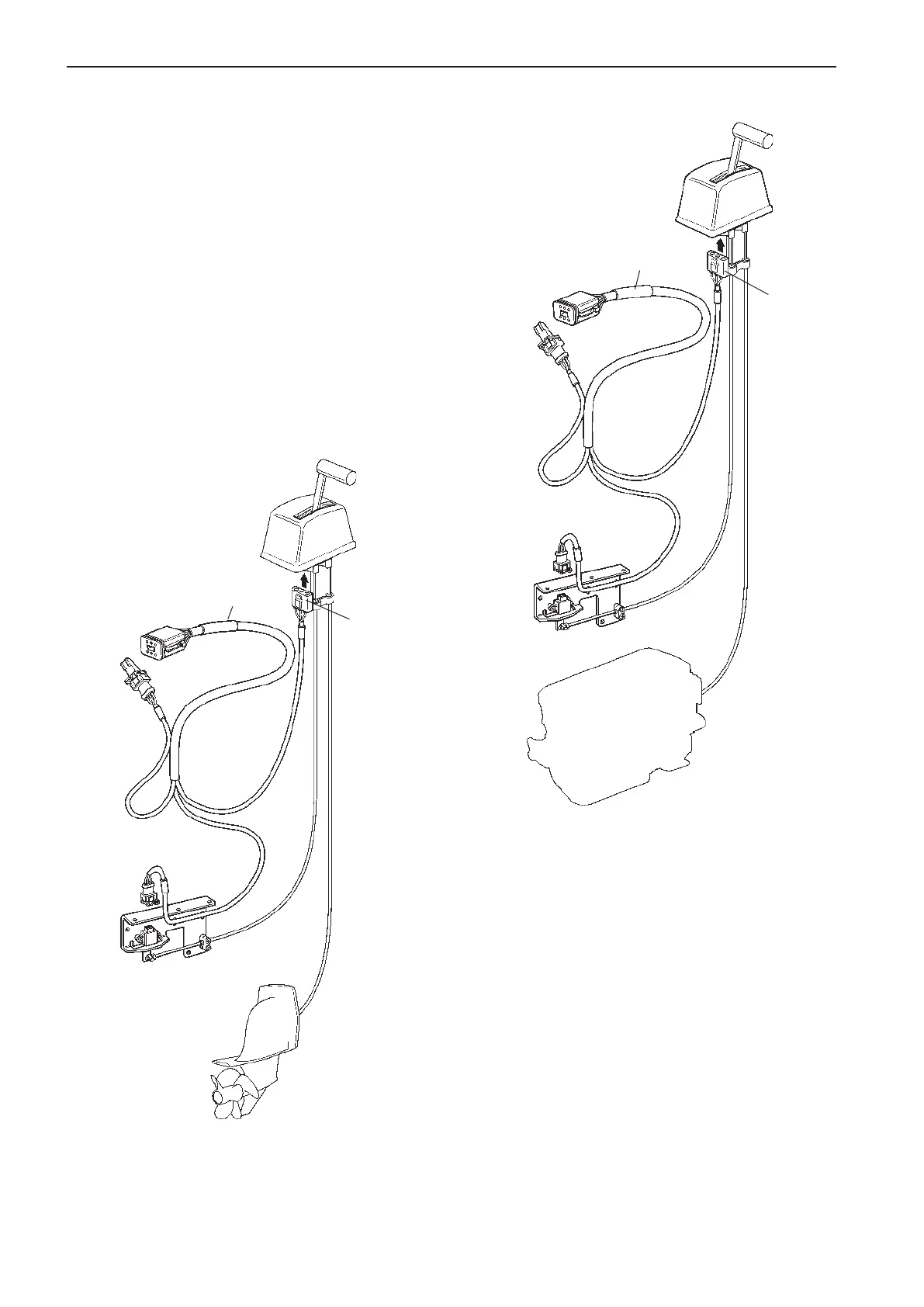

Drive DPH/DPR
Reverse gear
NOTE! No extensions are allowed to the control lever
cable.
NOTE! No extensions are allowed to the control lever
cable.
THROTTLE
POT
NEUTRAL
SWITCH
GEAR POT
(not used)
CONN X7
THROTTLE
POT
NEUTRAL
SWITCH
GEAR POT
(not used)
CONN X7
76
Installation procedure, helm EVC-C
