Make sure that the connectors are properly fitted for
your installation. Check the table.
Check adjacent figures which describe cable con-
nected for right-hand rotation. For left hand rotation,
just switch the connectors on the gear shift sole-
noids.
IMPORTANT! Apply low temperature grease,
Volvo Penta part no. 1161417-9 in the solenoid
connectors prior to connection.
Lefthand rotation
Anticlockwise rotation
seen from astern.
Righthand rotation
(standard setting)
Clock wise rotation
seen from astern.
Rev.gear Cable
valve marking marking
A B
B A
A A
B B

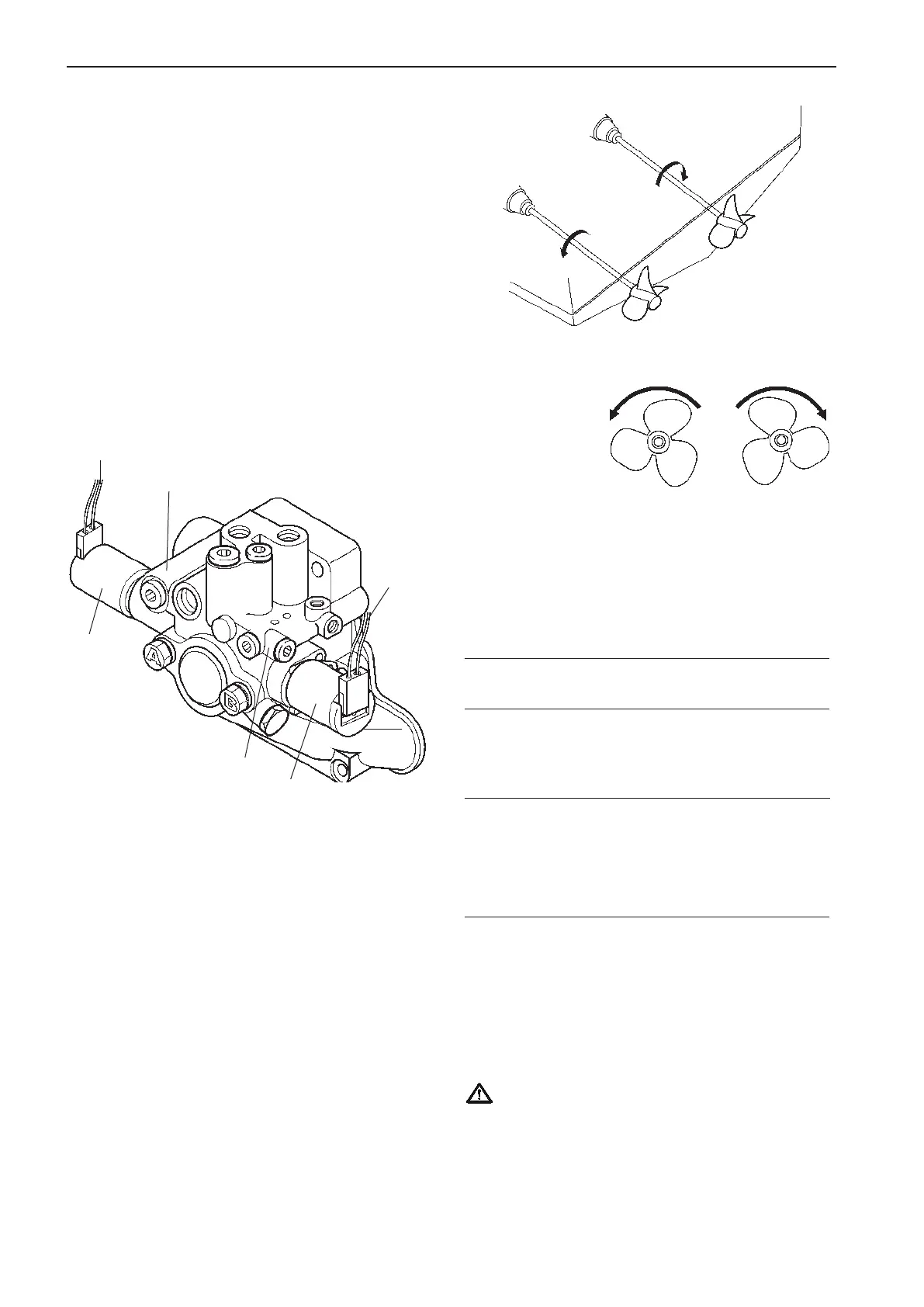

Checking rotation of propeller
D4/D6 Inboard engines
Reverse gear
HS45/HS63/HS80/HS85
The solenoid connectors shall be set up for right-
hand rotation in forward gear as standard. The cable
kit connectors are marked A and B and the solenoid
valves are marked A for primary valve and B for sec-
ondary valve.
NOTE! The standard fitting gives A to valve A and B
to valve B
Twin installation
Illustration shows propellers seen from the aft for-
ward. Starboard engine, standard right-hand rotation
and port engine left-hand rotation.
Starboard
Right-hand
rotation
Port
Left-hand rota-
tion
Cable
marking: A
Valve mark-
ing: A
Valve mark-
ing: B
Cable
marking: B
Solenoid
valve
Solenoid
valve
38
Installation procedure, engine room EVC-C
