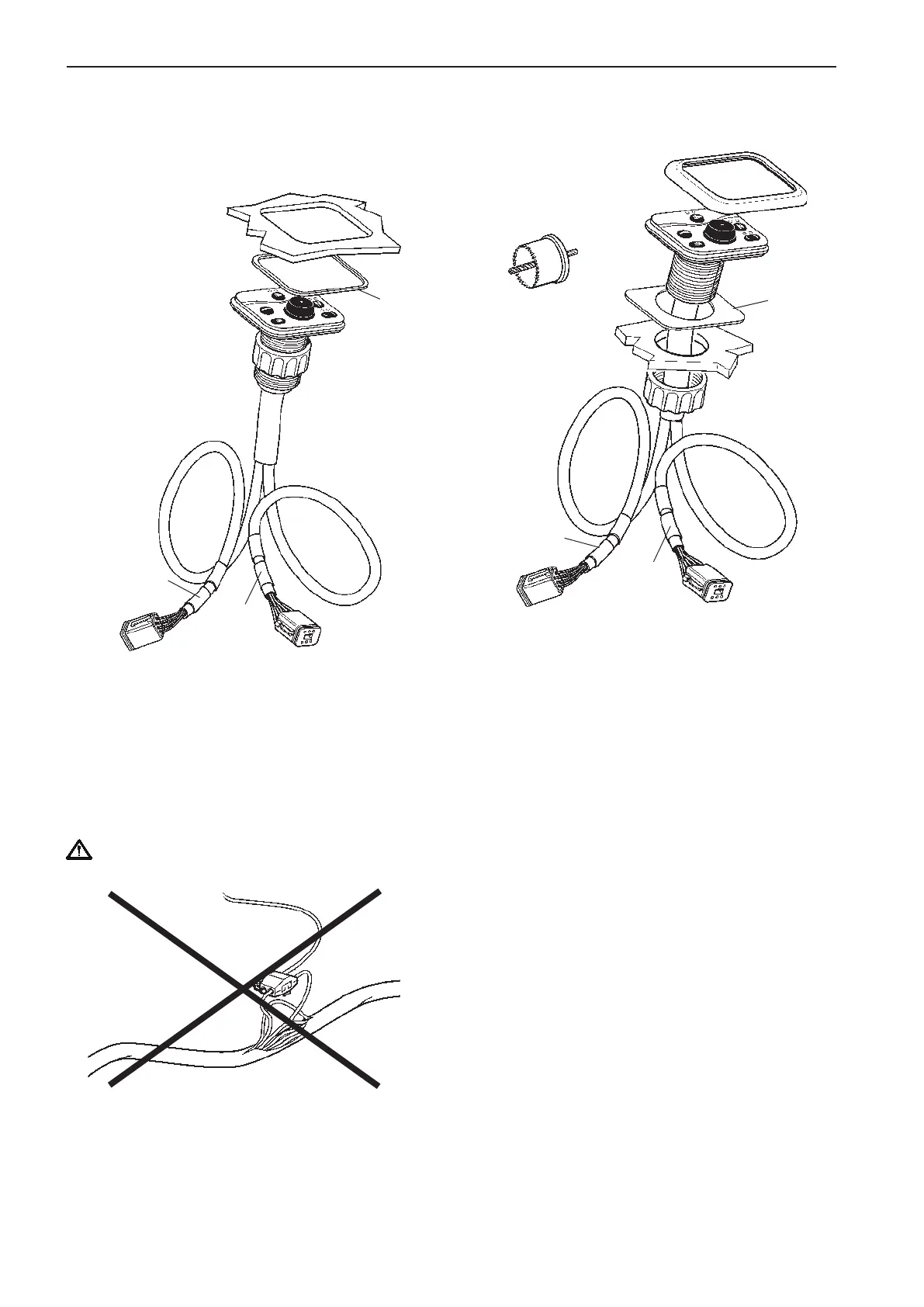

EVC control panel
Flush-mounted panel
Frame-mounted panel
Please refer to the Start/stop panel section for as-
sembling instructions.
Use the templates enclosed with the mounting kits.
Please refer to the Templates for controls and pan-
els chapter.
Figures show an EVC control panel for twin engine
installation.
1
Green
marking
strip
Red
marking
strip
Dash board
hole diameter:
52 mm (2.05")
2
Green
marking
strip
Red
marking
strip
Never cut or modifiy the Volvo Penta EVC cable har-
nesses. For extra power supply use the Volvo Penta
relay for accessories.
Refer to the Relay for external accessories section.
IMPORTANT!
52
Installation procedure, helm EVC-C
