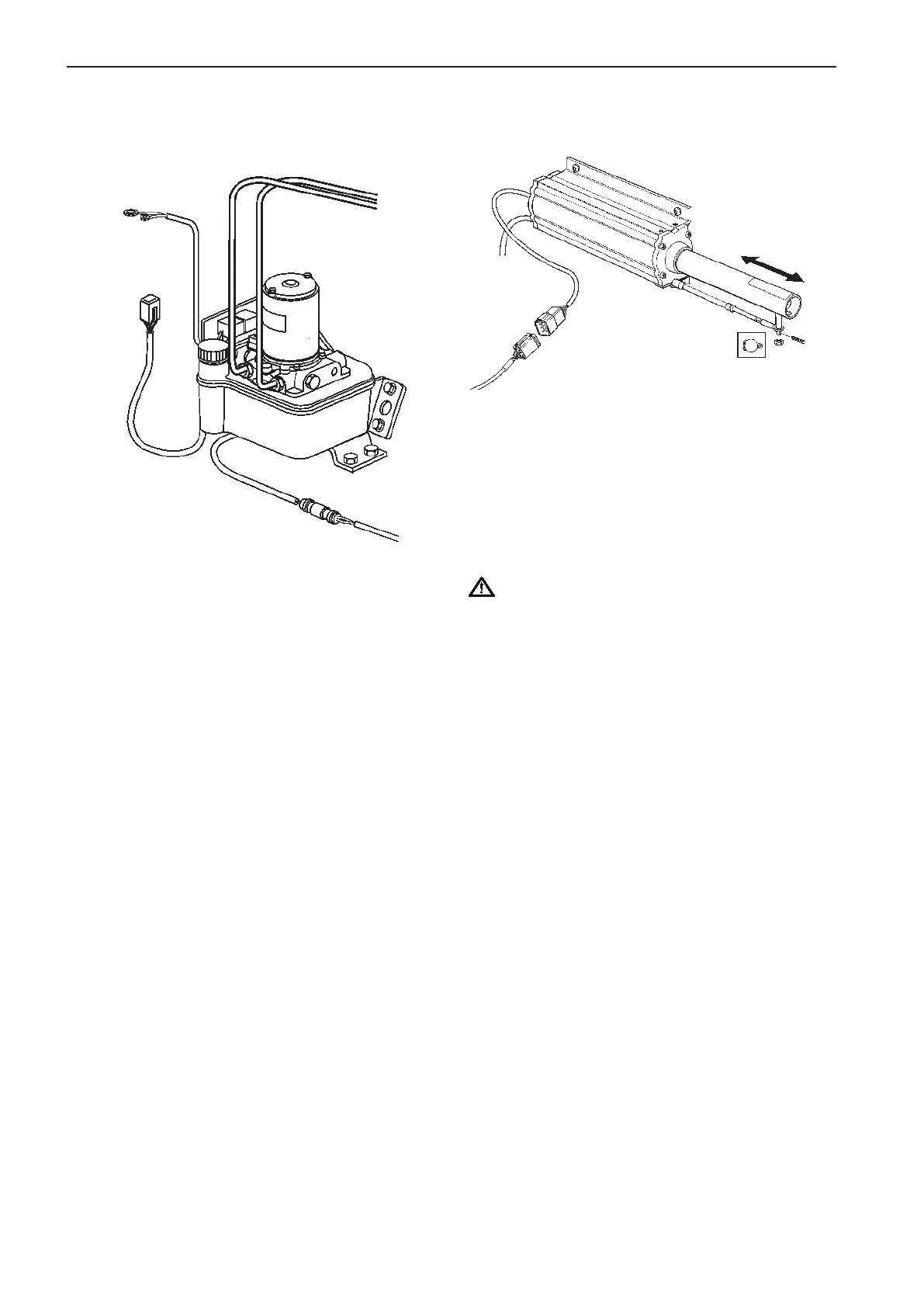

Powertrim system
D4/D6, stern drive DPH/DPR
Connect the 6-pin connector from the Powertrim
pump harness to the engine and transmission cable
connector marked POWERTRIM CONN.
Connect the power supply cable, ring terminals, posi-
tive (+) to 55A fuse on port side of engine and nega-
tive (–) to starter.
Connect the cable from the trim potentiometer ( trim
sender) on the shield to the trim pump 3-pin connec-
tor.
Clamp the cables securely.
Please refer to handbook, Installation Marine Die-
sel Engines Aquamatic, Volvo Penta IPS, Inboard
- D4, D6
Powertrim
pump
To EVC cable
POWERTRIM
CONN.
To trim
potentiometer
(trim sender)
Power
supply
cable
Gear shift actuator
D4/D6, stern drive DPH/DPR
Connect the actuator connector to the cable harness
connector marked GEARBOX CONN. Use a 6-pin
standard extension cable if necesary.
Clamp the cables in a proper way.
Please refer to Installation Marine Diesel Engines
Aquamatic, Volvo Penta IPS, Inboard - D4, D6 for
actuator mounting instructions.
IMPORTANT! Power up the system before con-
nection of the shift cable to make sure that the
gear shift actuator is in NEUTRAL position.
GEARBOX CONN
Gear
FWD
Gear
REV
48
Installation procedure, engine room EVC-C
