Volvo Penta EVC EC -C - Control Lever and Powertrim Calibration

1.2
1.1
1.5
1.3
1.4
2.1
2.2
2.3
2.5
2.4
1.1
1.2
1.5
1.3
1.4
1.6 1.7

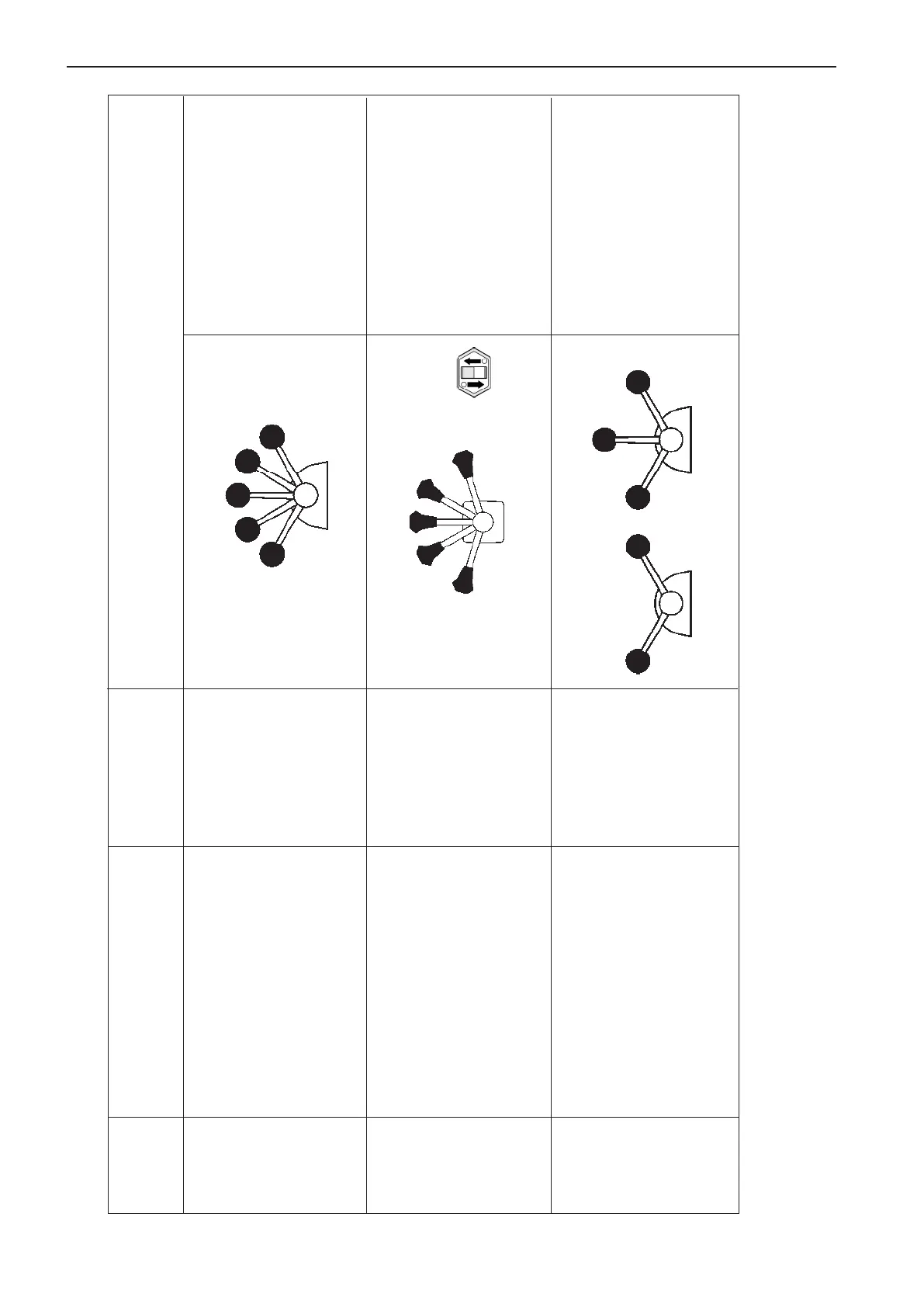

Combinations of control levers for EVC. Summary, calibration
Controls Single lever control. Top mounted or side mount- ed Single lever control with Powertrim but- tons. Side mounted Two lever con- trol.
Notes Combined throttle control and gear shift. Connectors marked THROTTLE POT and NEUTRAL SWITCH to the control alt. to an adapter. Connectors marked GEAR POT are not used. Combined throttle control and gear shift. Connectors marked THROTTLE POT. and NEUTRAL SWITCH to the control. Throttle control and gear shift on sepa- rate levers. Connectors marked THROTTLE POT. to lever for throttle control. Connector marked GEAR POT. and NEUTRAL SWICH to lever for gear shift.
Number of levers and calibration posi- tions shown in the tachometer display 1.0 – 1.5 1.0 – 1.7 2.0 – 2.5
Calibration order
1.1 FORWARDS – idle 1.2 FORWARDS – full throttle 1.3 REVERSE – idle 1.4 REVERSE – full throttle 1.5 NEUTRAL – idle 1.1 FORWARDS – idle 1.2 FORWARDS – full throttle 1.3 REVERSE – idle 1.4 REVERSE – full throttle 1.5 NEUTRAL – idle 1.6 UP 1.7 DOWN 2.1 Full throttle Lever for 2.2 Idling throttle control 2.3 FORWARDS Lever for gear 2.4 REVERSE shift 2.5 NEUTRAL
Lever for throttle control
Lever for throttle control and gear shift
Lever for throttle control and gear shift
Lever for gear shift
86
Calibration and settings EVC-C
